Chapter 2 Installing the LCD TV
Rear of TV
Use a Component cable to connect the (Y Pb Pr ) sockets on the DVD player to
your LCD TV.
Use an audio cable to connect the DVD’s audio sockets to your LCD TV.
Connect all power INPUTs before turning on the power switch of the LCD TV
or other connected equipments.
Press the POWER button to turn on your LCD TV.
To watch DVD, press the INPUT button to select AV1,AV2, AV3,AV4.
Use an Audio cable to connect the DVD’s audio output sockets to your LCD TV.
Use a S-Video cable to connect your LCD TV and DVD player.
Use an A/V cable to connect the DVD’s composite output sockets to your LCD TV.
Use a SCART cable to connect the DVD’s SCART socket to the LCD TV’s SCART socket.

METHOD A (AV4 )
METHOD B (AV2)
METHOD C (AV3)
METHOD D (AV1)



DVD PLAYER
Audio
(R)
Video/Audio Cable
ideo
Audi
(L)
A
Pb
P
r
D
V
o
PC/VGA IN
VHF/UHF IN

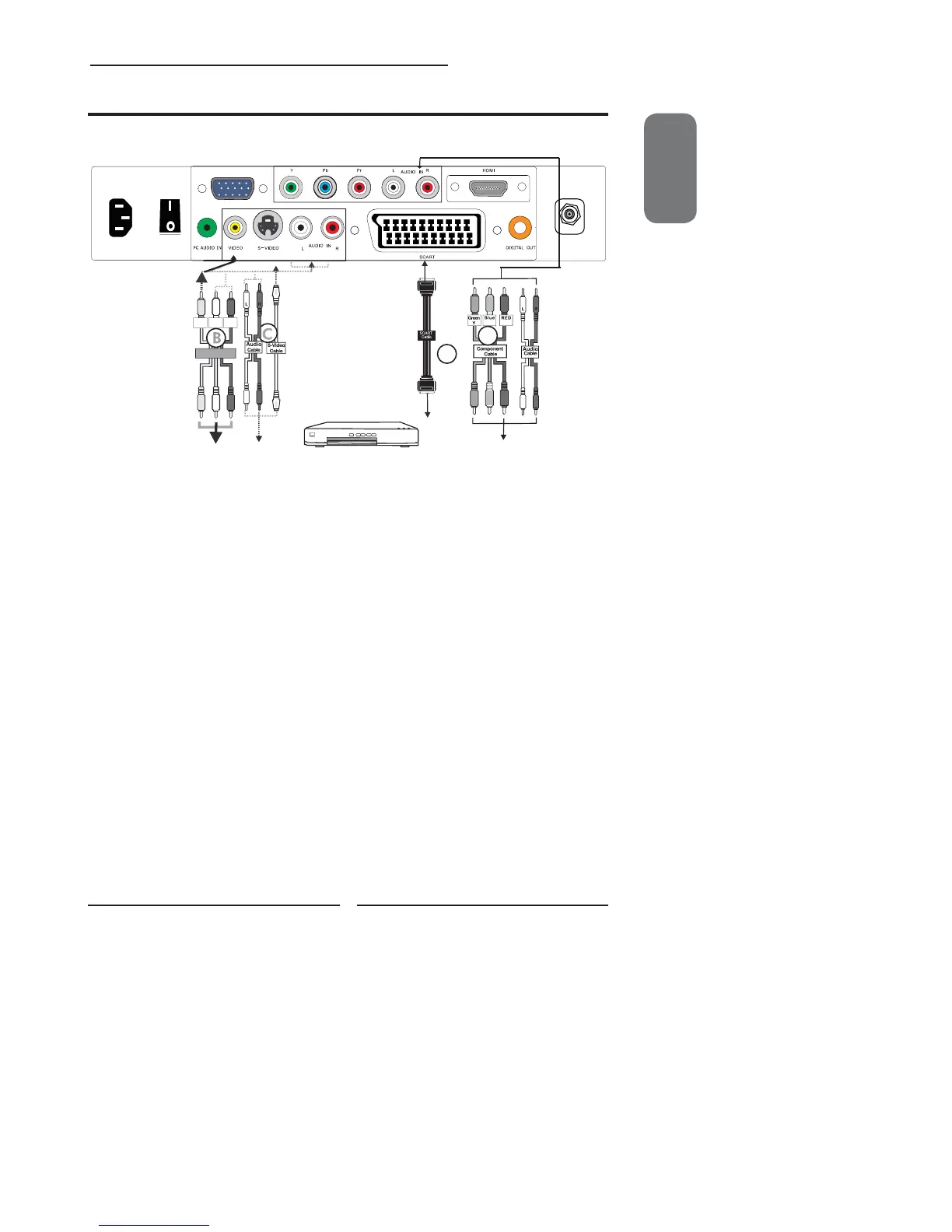

Connecting a DVD Player
