Chapter 2 Installing the LCD TV
Use an Audio cable to connect the VCR’s/ the Video Camera’s audio output sockets to
your LCD TV.
Use a S-Video cable to connect your LCD TV and VCR player/ video camera.
Use an A/V cable to connect the VCR’s/ video camera’s composite output sockets
to your LCD TV.
Use a SCART cable to connect the VCR’s SCART socket to the LCD TV ‘s SCART socket.
Connect all power INPUTs before turning on the power switch of the LCD TV
or other connected equipments.
Press the POWER button to turn on your LCD TV.
METHOD A (AV2)
METHOD B (AV3)
METHOD C (AV1)
To watch VCR, press the INPUT button to select AV1, AV2 or AV3 .
To watch video camera, press the INPUT button to select AV2 or AV3.
Audio
(
R
)
Video /Audio C able
ideo
Audi
(L)
V
o
VHF/UHF IN
PC/VGA IN
5
“Not all cameras have the ability to connect to a TV. Please check your video camera
user guide for compatibility”.
Rear of TV

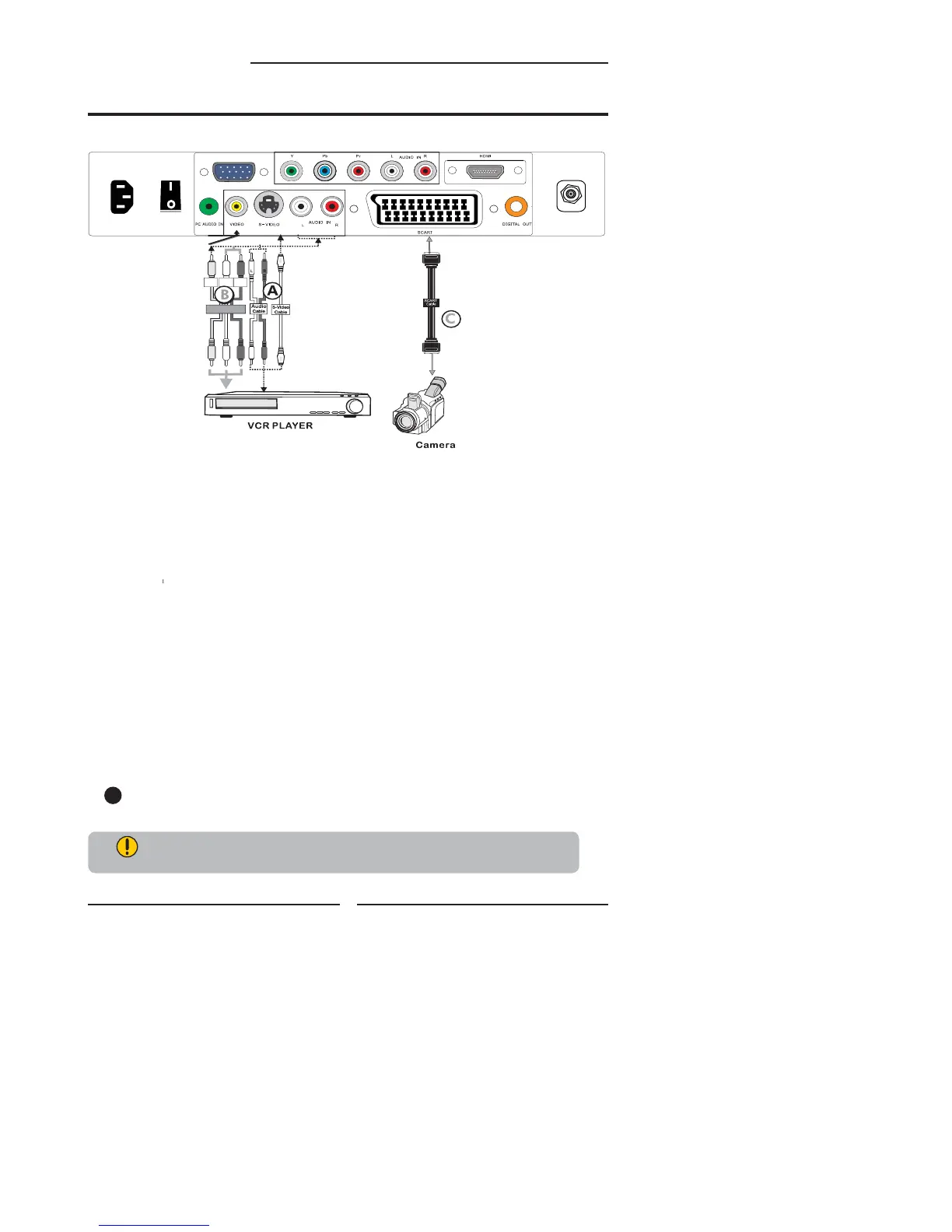

Connecting a VCR&Video Camera
