Polimaster PM1401MA User Manual

11
CHAPTER 2: OPERATION
2.1 Turning the instrument on/off
Once the battery has been installed, РМ1401MA will turn ON
automatically. If the battery was already installed and the instrument is in
the OFF mode, then press and hold the MODE button to power it on. All
display segments and alarms will be activated for 1 second and the unit will then perform its
self-test procedures.
To turn the instrument OFF, press and hold the LIGHT button for
about 7 to 9 seconds until the LCD displays the blinking “OFF” message.
Then, release the LIGHT button (in case Quick shut down is enabled in
instrument’s settings) or additionally press the MODE button to confirm shutdown. The
instrument is switched off when the LCD displays the “OFF” message.
2.2 Installation of the external vibrator
The PM1401MA is equipped with internal audio and light alarms (built-in). Optionally,
PM1401MA can be supplied with an external alarm vibrator. It allows searching for radiation
sources in highly noisy environment and/or performing a hidden search, when audio alarm is
disabled.

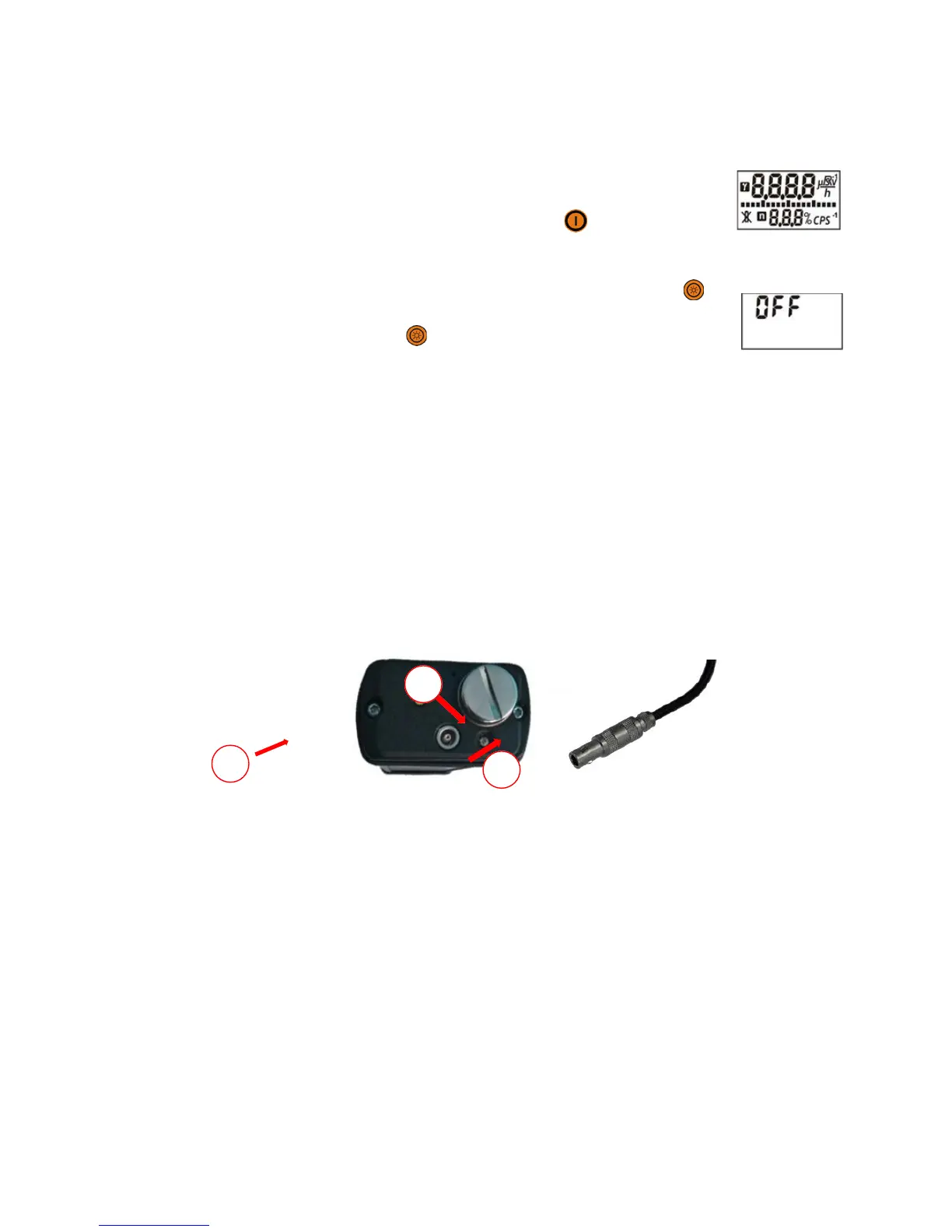

The vibrator’s cable has a secure push/pull connector to hold into the position. To
connect the vibrator, locate the port on the bottom of the PM1401MA, as depicted by item 1
in figure below. Guide the connector until it locks to the position. To disconnect the
connector, grasp the outer knurled sleeve (item 2), and pull straight back (item 3).
Caution! Handle the external vibrator cable only by the outer knurled sleeve on the
connector. Avoid pulling or twisting on the external vibrator’s flexible cable. Doing so can damage
the connector or PM1401MA port.
The external vibrator is also equipped with additional band to hold it secure on the
wrist to perform hidden search. Please see pictures below for guidance.
1
2
3

Polimaster PM1401MA Specifications

General

Detectors Gamma	CsI(Tl) scintillator
Sensitivity, gamma radiation Cs-137 Am-241	100 s-1/(µSv/h) / (1 s-1/(µR/h)) 100 s-1/(µSv/h) / (1 s-1/(µR/h))
Energy range Gamma	0.06 – 3.0 MeV
Indication range Gamma	0.01 µSv/h – 99.99 µSv/h / (1 µR/h – 9999 µR/h)
Response time	0.25 s
Measurement range Gamma (± 30 % at 137Cs)	0.1 µSv/h – 70 µSv/h / (10 µR/h – 7000 µR/h)
Alarm types	visual, audible and external vibrator
Drop test	1, 5 m (5 ft.) onto concrete surface
Power requirements	one AA size battery
Battery lifetime	Up to 1000 hours
Communication	IR interface
Memory	990 data points
Environmental Temperature range LCD indication Humidity	-30 to +50 °C (-22 to +122 °F ) -15 to +50 °C (+5 to +122, 5 °F ) up to 95 % at +35 °C (+95 °F )
Ingress Protection Rating	IP65

Weight and Dimensions

Dimensions	110х57х32 mm (41/3 х 21/4 х 11/4 in)
Weight, including battery	320 g. (11.29 oz)
