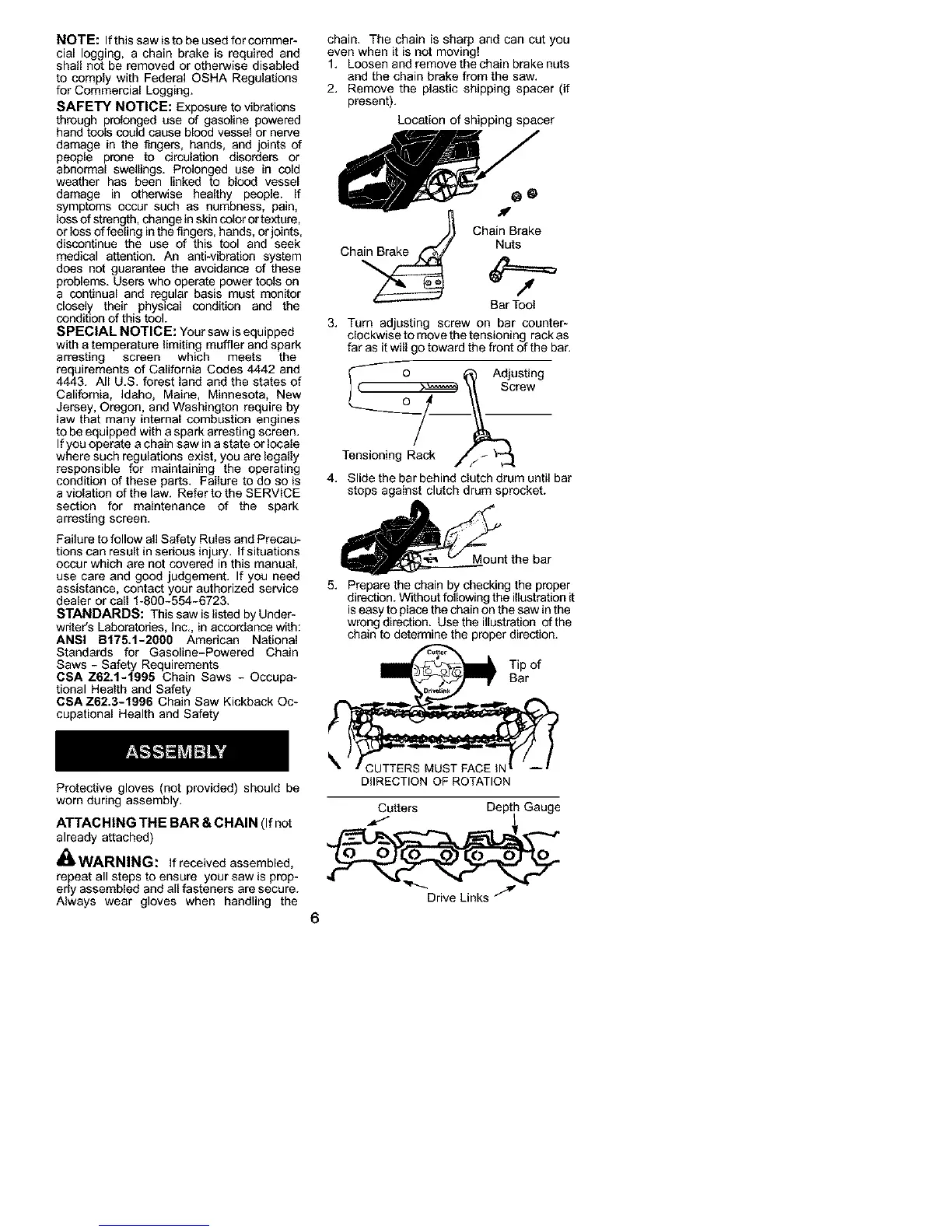

NOTE: If this saw is to be used for commer-
cial logging, a chain brake is required and
shall not be removed or otherwise disabled
to comply with Federal OSHA Regulations
for Commercial Logging.
SAFETY NOTICE: Exposure to vibrations
through prolonged use of gasoline powered
hand tools could cause blood vessel or nerve
damage in the fingers, hands, and joints of
people prone to circulation disorders or
abnormal swellings. Prolonged use in cold
weather has been linked to blood vessel
damage in otherwise healthy people. If
symptoms occur such as numbness, pain,
loss of strength, change in skin color or texture,
or toss of feeling in the fingers, hands, or joints,
discontinue the use of this tool and seek
medical attention. An antiwibration system
does not guarantee the avoidance of these
problems. Users who operate power tools on
a continual and regular basis must monitor
closely their physical condition and the
condition of this tool.
SPECIAL NOTICE: Your saw is equipped
with a temperature limiting muffler and spark
arresting screen which meets the
requirements of California Codes 4442 and
4443. All U.S. forest land and the states of
California, Idaho, Maine, Minnesota, New
Jersey, Oregon, and Washington require by
law that many internal combustion engines
to be equipped with a spark arresting screen.
If you operate a chain saw in a state or locale
where such regulations exist, you are legally
responsible for maintaining the operating
condition of these parts. Failure to do so is
a violation of the law. Refer to the SERVICE
section for maintenance of the spark
arresting screen.
Failure to follow all Safety Rules and Precau-
tions can result in serious injury. If situations
occur which are not covered in this manual,
use care and good judgement. If you need
assistance, contact your authorized service
dealer or call 1-800-554-6723.
STANDARDS: This saw is listed by Under-
writer's Laboratories, Inc., in accordance with:
ANSI BI75.f-2860 American National
Standards for Gasoline-Powered Chain
Saws - Safety Requirements
CSA Z62.1-1995 Chain Saws - Occupa-
tional Health and Safety
CSA Z62.3-1996 Chain Saw Kickback Oc-
cupational Health and Safety
Protective gloves (not provided) should be
worn during assembly.
ATTACHING THE BAR & CHAIN (If not
already attached)
_ WARNING: If receivod assembled,
repeat all steps to ensure your saw is prop-
erly assembled and all fasteners are secure.
Always wear gloves when handling the
4,
chain. The chain is sharp and can cut you
even when it is not moving!
1. Loosen and remove the chain brake nuts
and the chain brake from the saw.
2. Remove the plastic shipping spacer (if
present).
Location of shipping spacer
ChanBak
Ch Nuts
Bar Tool
Turn adjusting screw on bar counter-
clockwise to move the tensioning rack as
far as it will go toward the front of the bar,
_ o _ Adjusting
] ( _ _ Screw
Tensioning Rack _,//_ '_
Slide the bar behind clutch drum until bar
stops against clutch drum sprocket.
_t the bar
5. Prepare the chain by checking the proper
direction. Without following the illustration it
is easy to place the chain on the saw in the
wrong direction. Usethe iUustration ofthe
chain to determine the proper direction.
rof
DIIRECTION OF ROTATION
Cutters Depth Gauge
Drive Links "/_
