INSTALL THE PROJECTOR

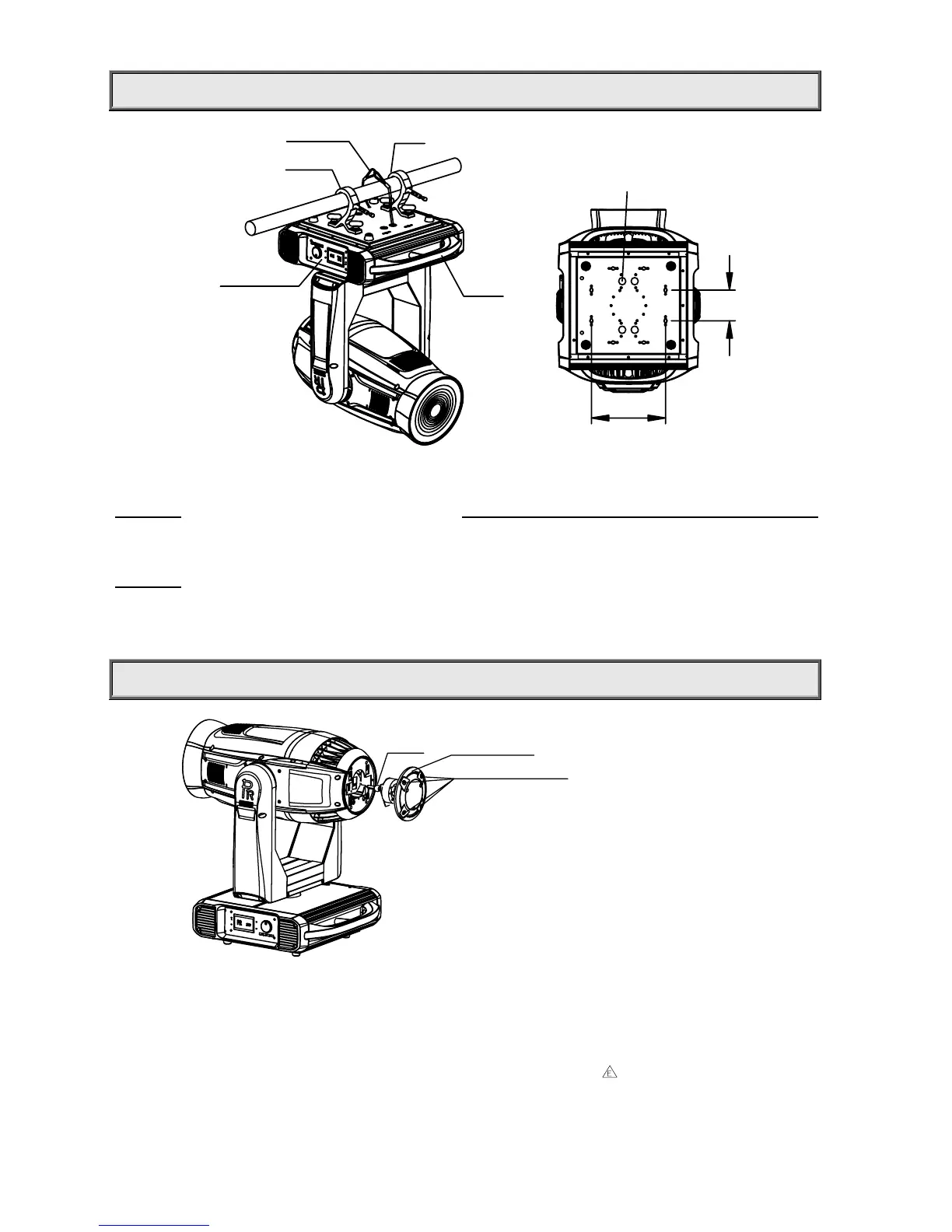

Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 2 retainers
attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the
WARNING
on the underside of the base as shown above) To pass 2 SAFETY CORDS through 4 HOLES for safety!
Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that
the structure that you are going to mount the projector is secure and is strong enough to support the weight of PR5000
FS(PR3000 FS)
WARNING
1. Unlock the PAN and TILT before the 1
st
application of projector for safety.
2. The projector MUST be lifted or carried by the HANDLES instead of clamps.
3. For safety the safety cord should support 10 times of the unit’s weight.
FITTING THE LAMP
Unplug the projector from power before lamp installation or replacement and wait for it to cool.
Lock the yoke before fitting/replacing the lamp.
Loosen 4 fast-fit screws and remove the back cover, you can see the structure as shown in the figure above.
Rotate the lampholder to the left and take out the worn-out lamp.
Fit new lamp and close the back cover by fastening 4 fast-fit screws. Note: don’t touch the bulb of the new lamp with
bare hand so as not to influence the beam output;
WARNING: The MSR series are high-pressure lamps with external igniters (
). Care should always be taken
when handling these lamps. Always read the manufacturers "Instructions for use" enclosed with the lamp.
106
256
HANDLE
SAFETY CORD
CLAMP
To pass 2 SAFETY CORDS
through 4 HOLES for safety!
WARNING
CONTROL PANEL
CLAMP
FAST-FIT SCREWS
LAMP
REAR COVER
