6/21
DMX TERMINATOR

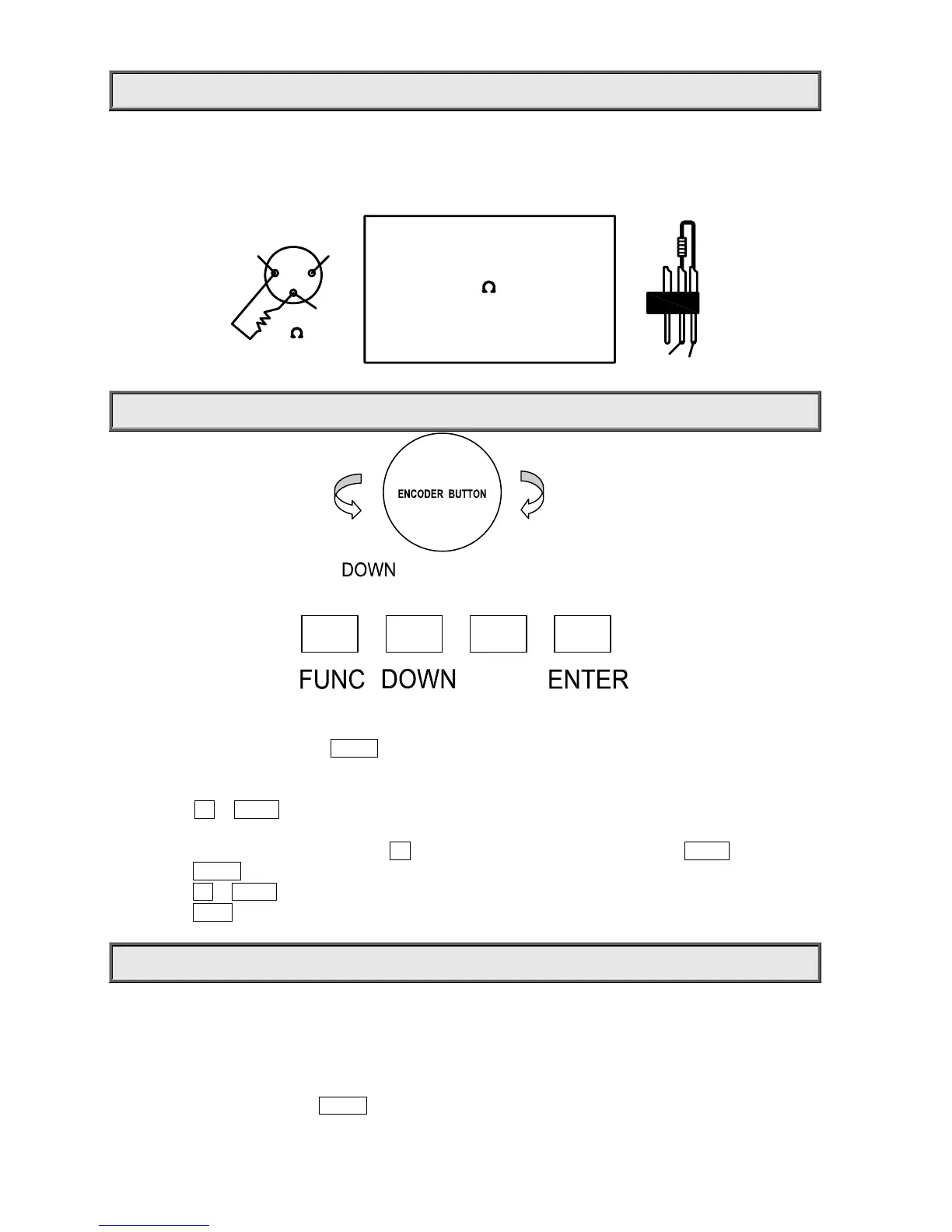

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This
prevents electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is
then plugged into the output socket on the last projector in the chain. The connections are illustrated below.
SETUP OPTIONS-PROJECTOR CONFIGURATION
Projector configuration can be set conveniently via switch button and LCD display. Turn the projector on and the LCD
display will show DMX address you set and save last time and it can be reset and saved again as you please.
Launch the projector. Press button ENTER more than 5 seconds to unlock panel. After this, the display shows the
projector’s function menu and each option has its own sub-menus. Each menu stands for special function, see details as
follows.
Press button UP or DOWN if you want to browse through the various Setup Options. There are 10 option codes
from DMX Address to Wireless options, and each code has a specific function. If you turn the encoder
knob clockwise, the function like as button UP . On the contrary, the function like as button DOWN .
Press button ENTER to save your settings or enter the next menu. There is same function if you push the encoder knob.
Press button UP or DOWN to shift.
Press button FUNC, it will return to the upper menu one by one. If you stay for minutes defaulted will show display status
automatically.
TO SET THE DMX START ADDRESS
Each projector must be given a DMX start address so that the correct projector responds to the correct control signals.
This DMX start address is the channel number from which the projector starts to “listen” to the digital control information
being sent out from the controller. PR5000 Wash Beam has 3 DMX modes. There are standard mode, extended mode
and short mode. For example standard mode have 17 channels, so set the No. 1 projector’s address 001, No. 2
projector’s address 018, No. 3 projector’s address 035, No. 4 projector’s address 052, and so on.
Launch the projector. Press button ENTER or encoder knob more than 5 seconds to unlock panel.
2
1
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
PIN 3
PIN 2
UP
UP
