PM-30MV v3 2020-10 Copyright © 2020 Quality Machine Tools, LLC
PM-30MV SPECIFICATIONS

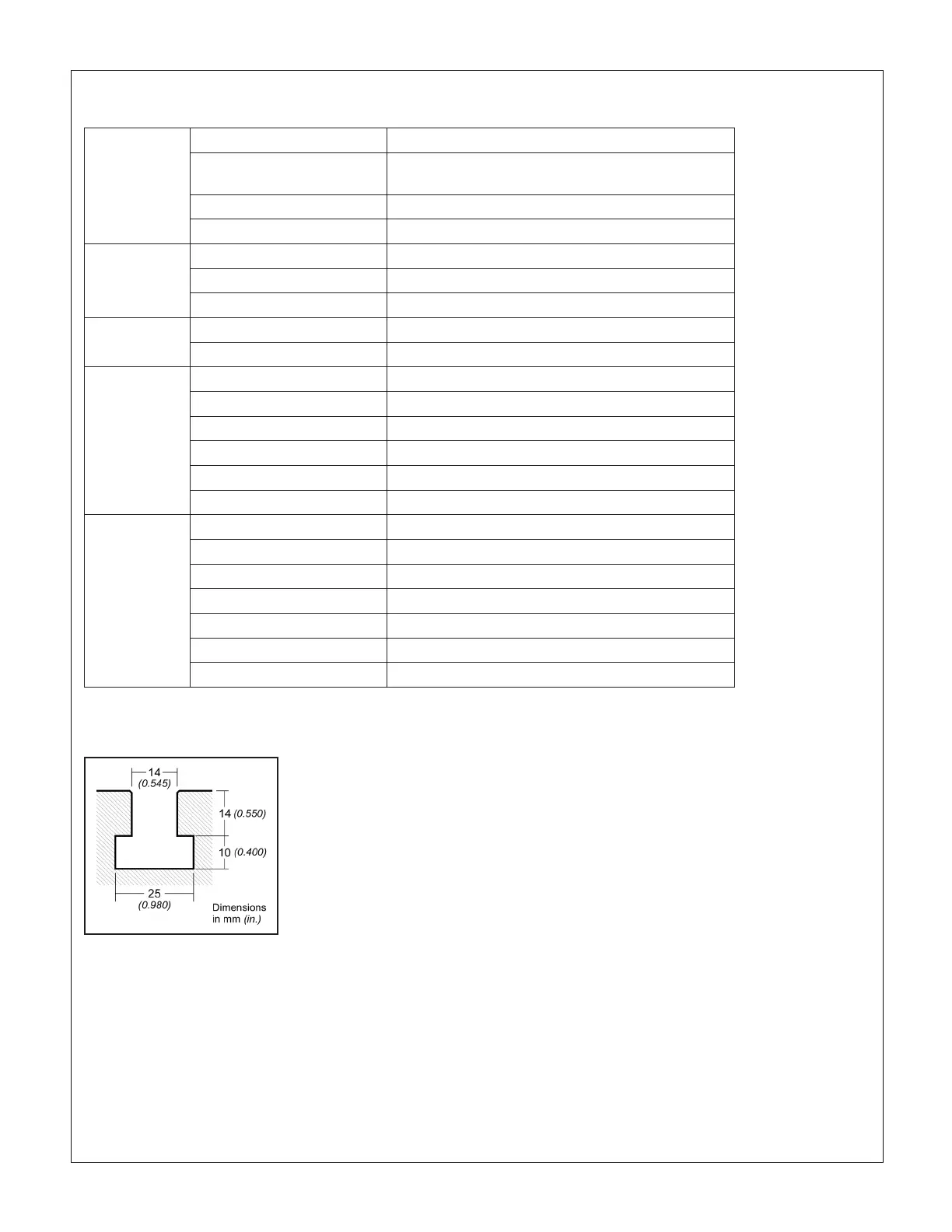

T-slot dimensions
Dimensions
Approximate net weight Machine only 530 lb, stand 75 lb
Overall size (on stand) W 46-1/4 in. x D 31 x H max. 74-1/2
(headstock at normal working height, H = 67 in.)
Stand footprint W 14-1/2 in. x D 21-1/4
Tray W 22-1/2 in. x D 26-1/4
Electrical
Power requirement 220V, 60Hz, single phase, 15A minimum
Spindle motor Brushless dc, 1.5 kW (2 HP)
X-axis power feed (option) Gear motor: 110V, 60 Hz, single phase
Headstock
Vertical travel* 14-1/2 in.
Left-right tilt 90 degrees clockwise/counter-clockwise
Spindle
Speed Low range 50 to 1500 rpm, High range 1400 to 3000
Internal taper R8
Quill travel 3 in.
Spindle nose to table 18-1/4 in. max
Spindle centerline to column 7-1/2 in. to pleated cover, 8-5/8 in. cover absent
Drawbar Standard 7/16-20 thread
Table
Size 33 x 8-1/4 in.
Height over oor (on stand) 36 in. approx.
Maximum load 300 lb, table centered (less if overhanging)
Leadscrews Acme, inch pitch, 10 TPI
Left-right travel (X-axis)* 23 in.
Front-back travel (Y-axis)* 7-5/8 in.
T-slots (3) 14 mm wide, 63.5 mm (2-1/2 in.) centerline spacing
* DRO installation may limit these numbers
