V. YOUR LEGEND
Running Lights Switch
This switch controls your scooters front (upper) and rear running lights.
n Toggle the switch forward to turn on your scooters running lights.
n Toggle the switch back to turn off your scooters running lights.
Headlight Switch
This switch controls your scooters front (lower) light.
n Toggle the switch forward to turn on your scooters front lower light.
n Toggle the switch back to turn off the light.
Horn Button
The key must be fully inserted into the key switch for the horn to be operational.
n This button activates a warning horn.
n Do not hesitate to use the warning horn when doing so may prevent accident or injury.
Hazard Lights Switch
This switch activates the 4-way flashers on your scooter.
n Toggle the switch forward to turn on the flashers.
n Toggle the switch back to turn off the flashers.
Turn Signal Buttons
n Press the appropriate turn signal button once to activate it.
n Your scooters turn signals are timed to shut off automatically.
On/Off Indicator LED
When lit, this LED indicates that your scooter is powered up (on).
3-Amp Tiller Console Fuses
These fuses help protect your scooters front lighting, turn signals, and key switch console systems from receiving
an overload of electrical current. The fuses used in your scooter are the same type used in automobiles. See XII.
Care and Maintenance for fuse replacement.
3-AMP LEFT TURN SIGNAL FUSE
3-AMP RIGHT TURN SIGNAL FUSE
3-AMP LOWER LIGHT FUSE
3-AMP KEY SWITCH FUSE
SPARE

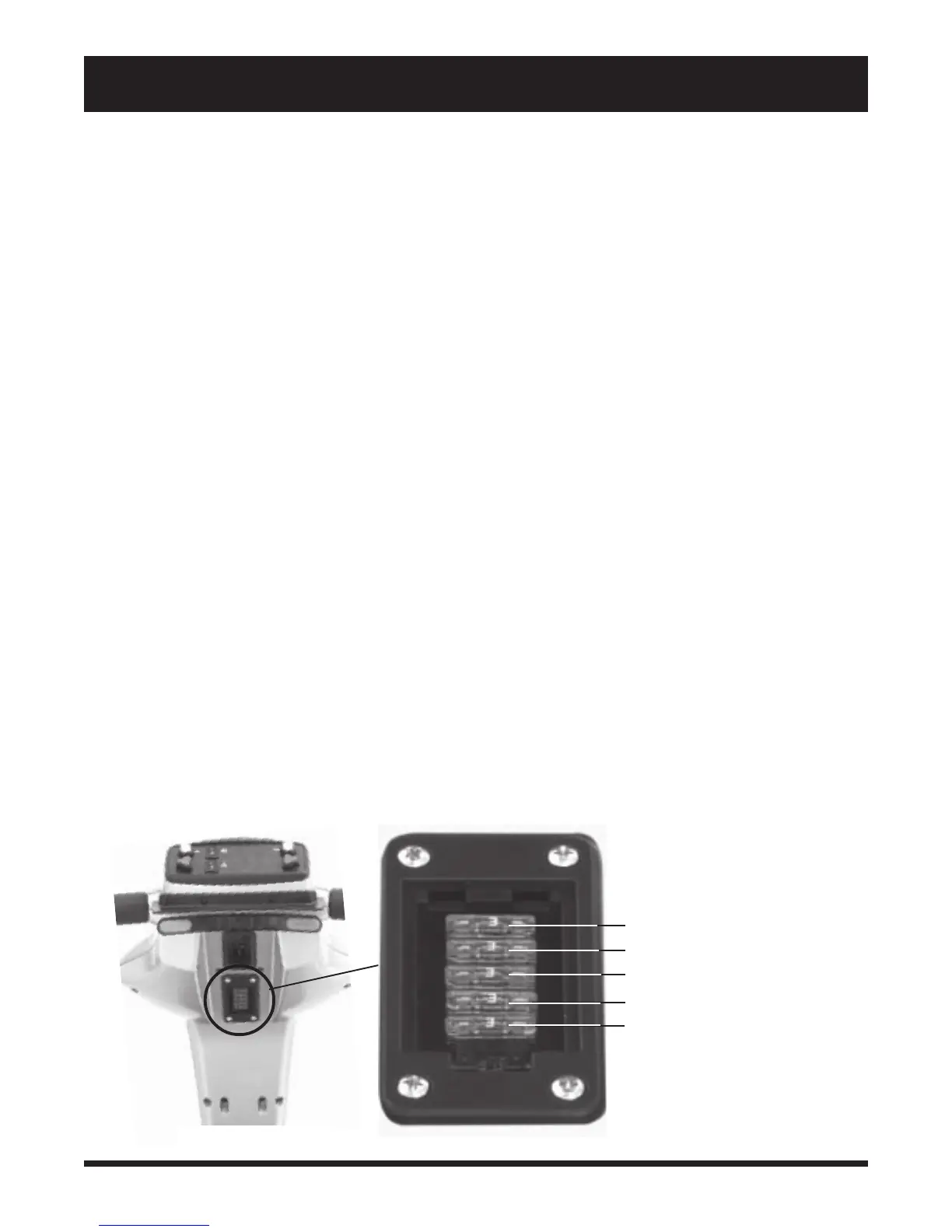

FIGURE 5A. TILLER CONSOLE FUSES
