Maxima
15
www.pridemobility.com
Key Switch
Fully insert the key into the key switch and turn it clockwise to power up (turn on) your scooter.
Turn the key anticlockwise to power down (turn off) your scooter.
WARNING! If the key is moved to the “off” position while your scooter is in motion, the
electronic brakes engage and your scooter comes to an abrupt stop!
Speed Adjustment Dial
This adjustment dial enables you to preselect and limit your scooter’s top speed.
The image of the tortoise represents the slowest speed setting.
The image of the hare represents the fastest speed setting.
Status LED
The Status LED alerts you to electrical problems that may occur with the scooter. The LED remains
constantly lit while your scooter is on. If the scooter develops an electrical problem, the status LED will
flash a code. See VIII. “Basic Troubleshooting” for troubleshooting flash codes.
III. YOUR SCOOTER
CONTROL CONSOLE ASSEMBLY
The control console assembly houses all of the controls you need to drive your scooter, including the key
switch, speed adjustment dial, status LED, throttle control lever, battery condition meter, horn buttons,
lights switch, turn indicator buttons, off-board charger port, and the hazard lights switch. See figure 5.
PROHIBITED! Do not expose the control console assembly to moisture. In the event that
the control console assembly does become exposed to moisture, do not attempt to
operate your scooter until the control console assembly has dried thoroughly.

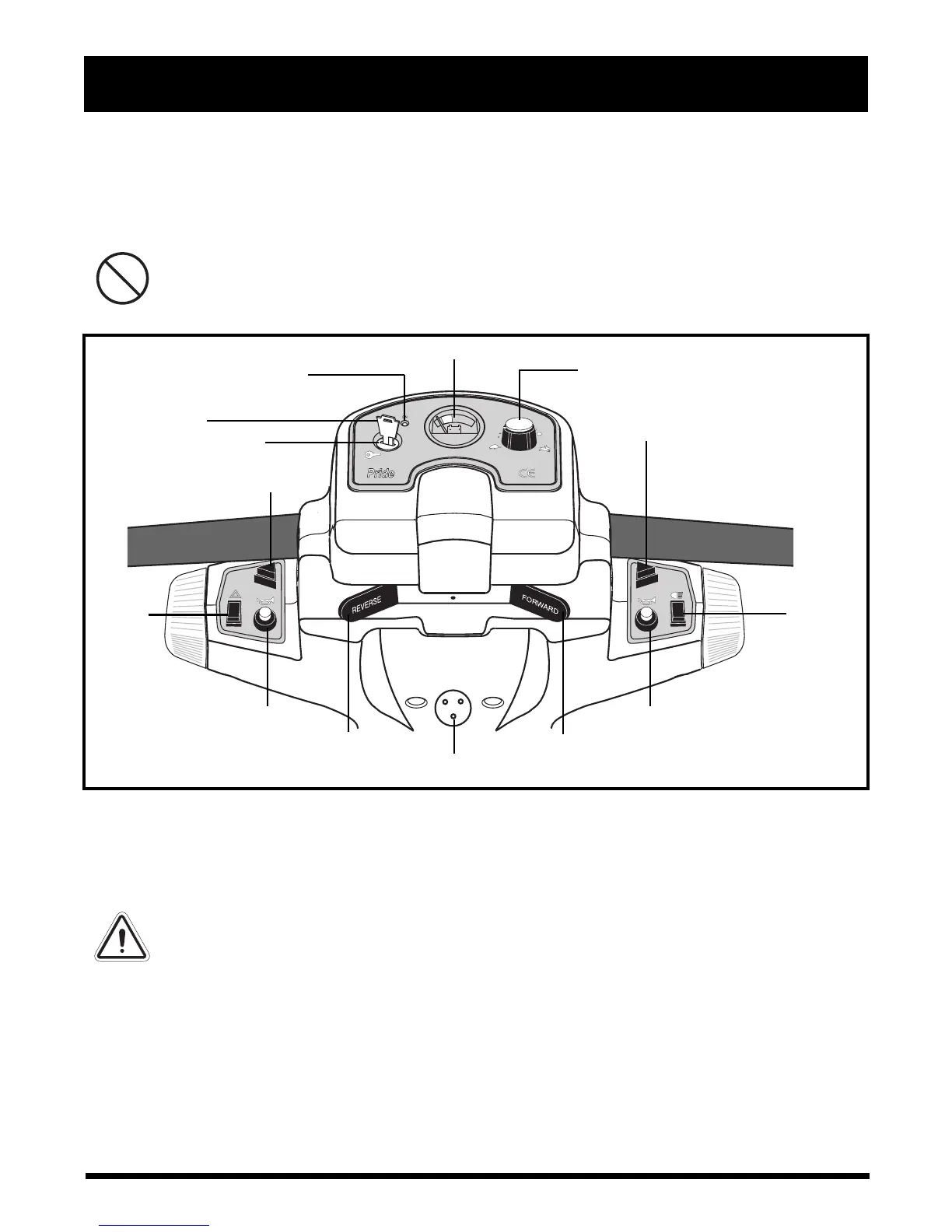

Figure 5. Control Console Assembly
BATTERY CONDITION METER
KEY SWITCH
HORN BUTTON
SPEED ADJUSTMENT DIAL
THROTTLE CONTROL LEVER (REVERSE)
HORN BUTTON
KEY
HAZARD
LIGHTS
SWITCH
LEFT TURN INDICATOR BUTTON
LIGHTS
SWITCH
RIGHT TURN INDICATOR BUTTON
THROTTLE CONTROL LEVER (FORWARD)
STATUS LED
OFF-BOARD CHARGER PORT
