VII. DISASSEMBLY AND ASSEMBLY
NOTE: There is no need to disconnect the motor harness when disassembling the scooter. See figure 21.
7. Lift both batteries off the scooter. See figure 22.
8. Push the locking cam levers forward to the unlocked position and remove the ball detent pins. See
figures 23 and 24.
9. Remove the frame handle ball detent pin. See figure 25.
10. Gently slide the two sections of the scooter apart. See figure 26.
11. Grab the hand grip on the tiller, pull upward on the tiller adjustment lever, and fully lower the tiller
down to the centre of the scooter chassis.

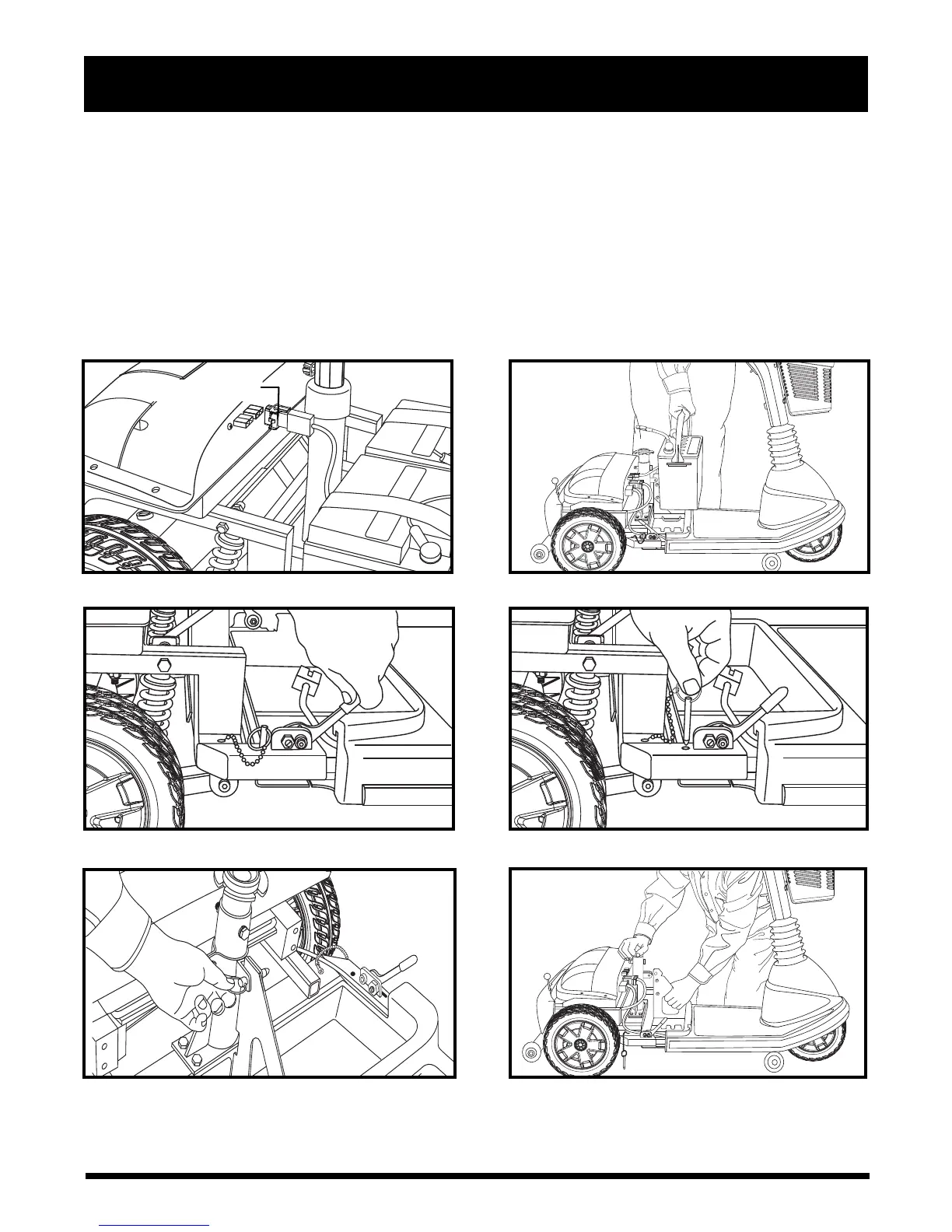

Figure 21. Motor Harness
Figure 22. Battery Removal
Figure 26. Frame Separation
Figure 25. Frame Handle Ball Detent Pin
Figure 23. Locking Cam Levers (Unlocked Position)
Figure 24. Frame Lock-up Ball Detent Pins
