Inspect and tighten all parts of the elliptical regularly.
R
eplace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
t
o the console, keep liquids away from the con-
sole and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, replace all the
batteries at the same time; most console problems are
the result of low batteries. See assembly step 9 on
page 10 for replacement instructions.
If the console does not display your heart rate when
you use the handgrip pulse sensor, see step 5 on
page 17.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.

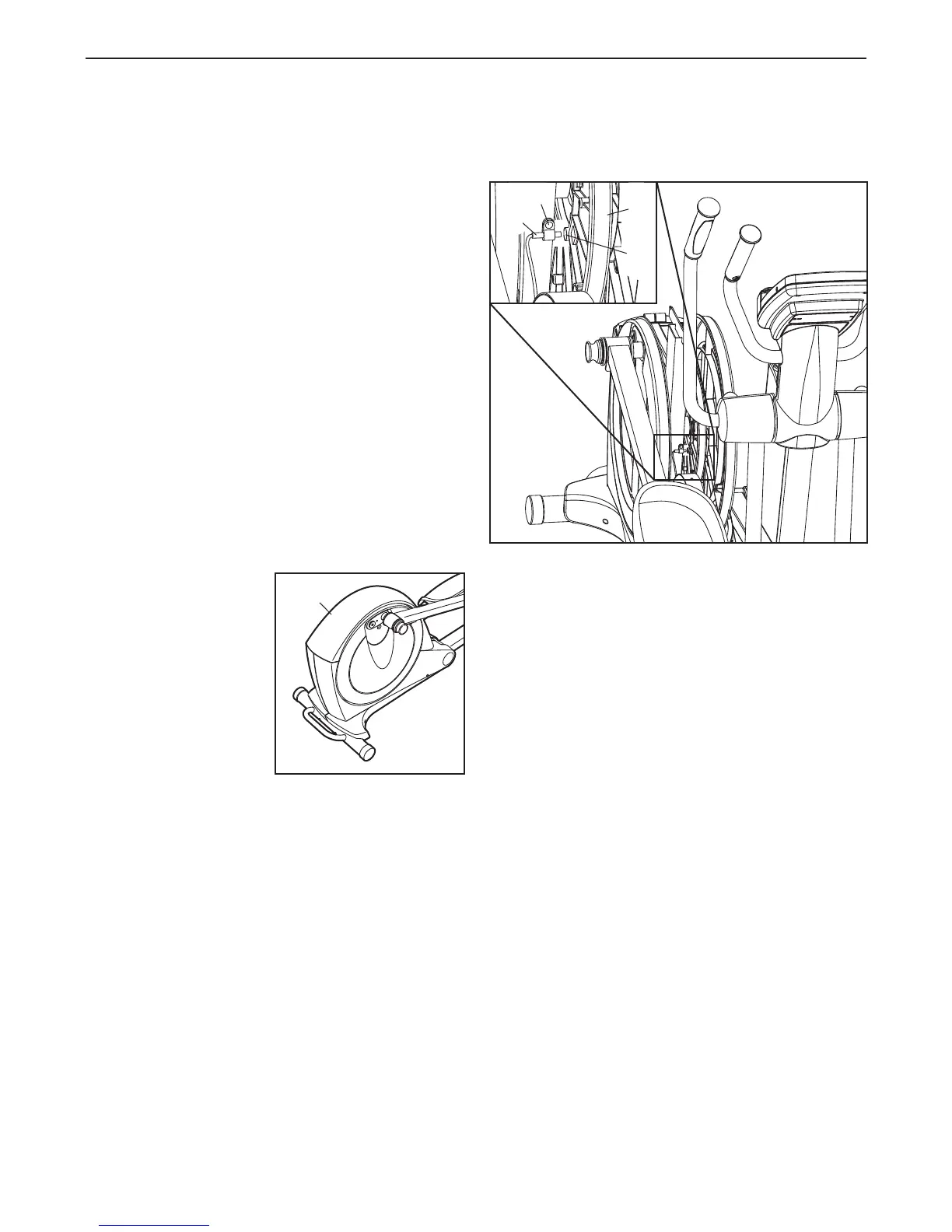

To adjust the reed
switch, you must first
remove the Top Shield
(20). Using a flat
screwdriver, release
the tabs on the front
and rear of the Top
Shield and then
remove the Top Shield.
Next, locate the Reed Switch (69). Loosen, but do not
r
emove, the M4 x 16mm Screw (93).
Next, rotate the Large Pulley (74) until a Magnet (75)
is aligned with the Reed Switch (69). Slide the Reed
Switch slightly toward or away from the Magnet. Then,
retighten the M4 x 16mm Screw (93).
Rotate the Large Pulley (74) for a moment. Repeat
these actions until the console displays correct feed-
back.
When the reed switch is correctly adjusted, reattach
the top shield.
MAINTENANCE AND TROUBLESHOOTING
20
93
69
75
7
4
