22
11Frame
21Rear Frame
31Front Stabilizer
41Rear Stabilizer
51Backrest
61Handlebar
71Seat Frame
81Lower Wire Harness
91Left Shield
10 1 Right Shield
11 2 Stabilizer Cap
12 1 Seat
13 1 Upright
14 1 Front Bushing
15 1 Rear Bushing
16 1 Console
17 1 Adjustment Knob
18 2 Wheel
19 2 Wheel Cap
20 1 Frame Pad
21 1 Frame Stop
22 1 Reed Switch Clamp
23 1 C-magnet Bracket
24 1 Left Pedal/Strap
25 2 Foam Grip
26 1 Right Pedal/Strap
27 4 M6 Locknut
28 1 Resistance Motor
29 1 Flywheel Axle
30 1 Belt
31 1 Pulley/Crank
32 1 C-magnet
33 3 M8 x 25mm Button Screw
34 1 Flywheel
35 1 Crank Bearing Assembly
36 1 Upper Wire Harness
37 2 Bearing
38 2 Magnet
39 2 Tension Bolt
40 1 Tension Bracket
41 1 M8 Washer
42 1 Flywheel Washer
43 1 Reed Switch/Wire
44 2 Handlebar Cap
45 3 M4 x 25mm Screw
46 1 Resistance Cable
47 1 Return Spring
48 4 M6 x 38mm Patch Screw
49 4 M6 x 42mm Button Screw
50 3 M4 x 16mm Flat Head Screw
51 4 M10 x 75mm Carriage Bolt
52 4 M4 x 16mm Screw
53 1 5mm Spacer
54 2 M8 x 70mm Button Bolt
55 8 M6 Washer
56 1 M8 x 20mm Button Bolt
57 12 M4 x 16mm Screw
58 4 M5 Washer
59 5 M8 Split Washer
60 5 M8 Locknut
61 6 M6 Nut
62 2 M8 Jam Nut
63 4 M10 Locknut
64 1 M6 x 38mm Bolt
65 1 Left Pulse Bar
66 1 Right Pulse Bar
67 4 Pulse Sensor
68 2 Pulse Grip
69 4 M6 x 38mm Button Bolt
70 4 M4 x 20mm Screw
71 2 Pulse Wire
*–Userʼs Manual
*–Assembly Tool
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated. If a part is missing, call 1-888-533-1333.

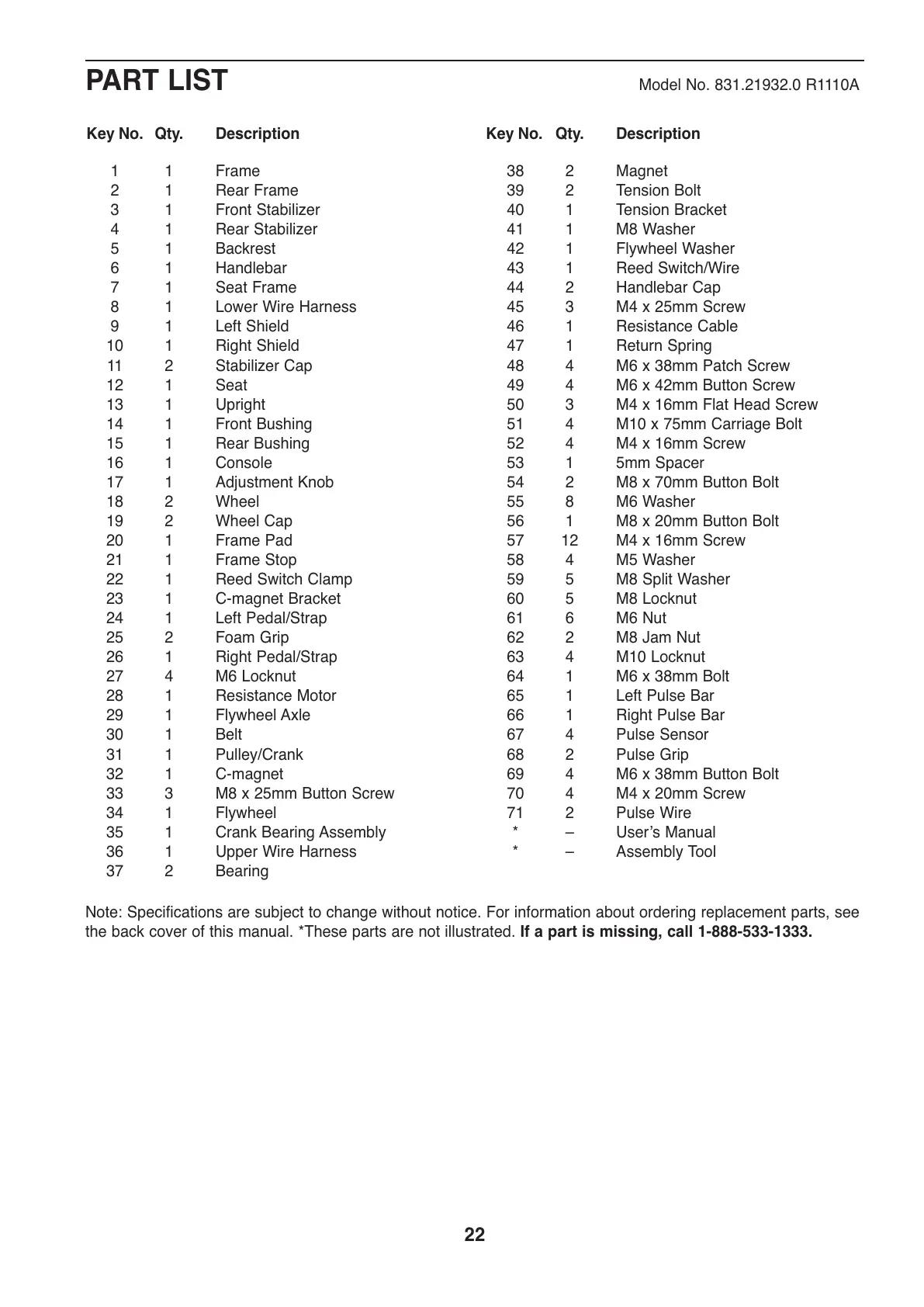

PART LIST Model No. 831.21932.0 R1110A
Key No. Qty. Description Key No. Qty. Description
