Pro-Form 10.8X User Manual

5
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
I
n addition to the included tool(s), assembly requires a Phillips screwdriver and an
adjustable wrench .

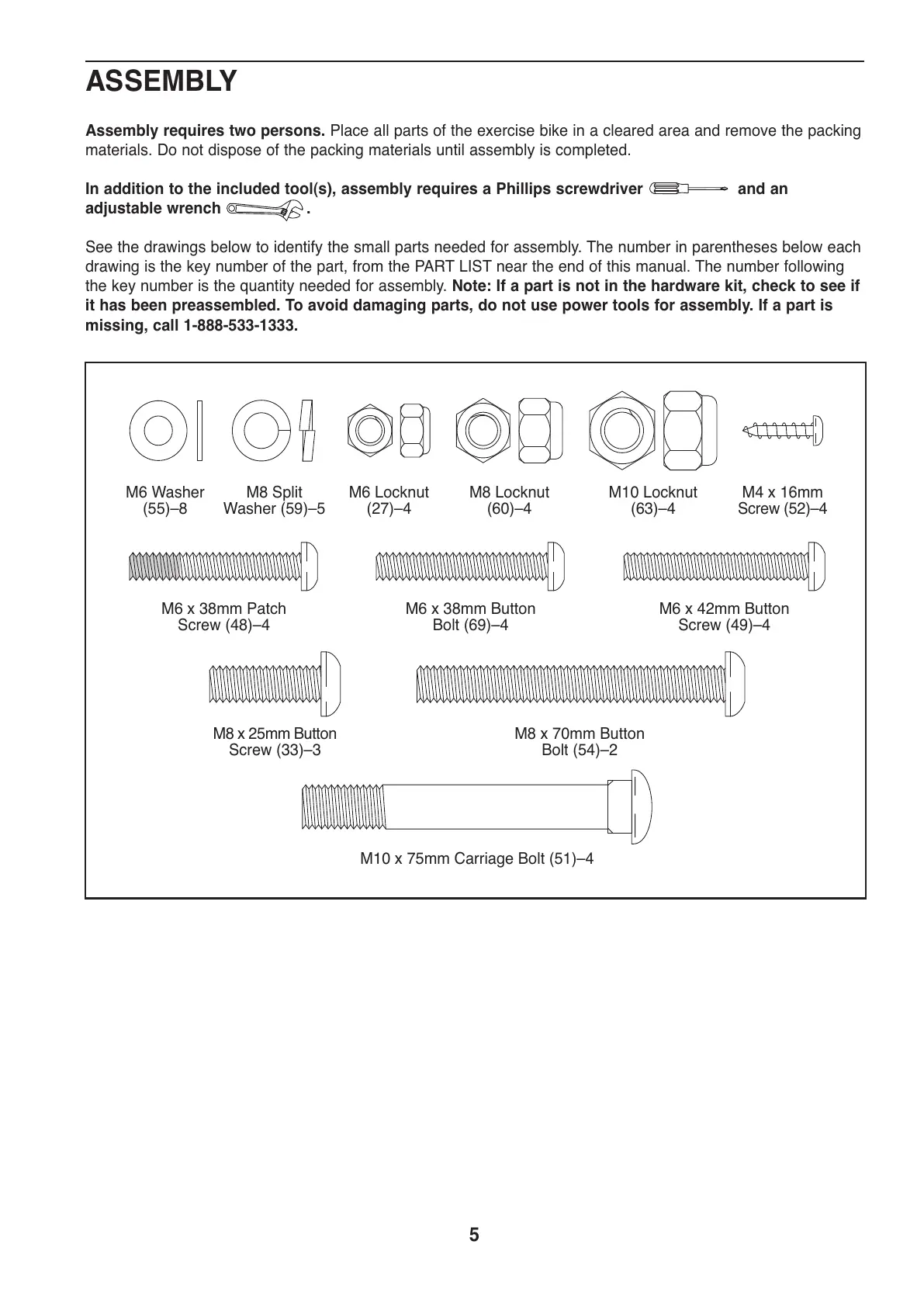

See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly. If a part is
missing, call 1-888-533-1333.
M10 Locknut
(63)–4
M8 Locknut
(60)–4
M8 Split
Washer (59)–5
M6 Washer
(55)–8
M8 x 25mm Button
Screw (33)–3
M8 x 70mm Button
Bolt (54)–2
M6 Locknut
(27)–4
M10 x 75mm Carriage Bolt (51)–4
M6 x 42mm Button
Screw (49)–4
M6 x 38mm Patch
Screw (48)–4
M6 x 38mm Button
Bolt (69)–4
M4 x 16mm
Screw (52)–4
