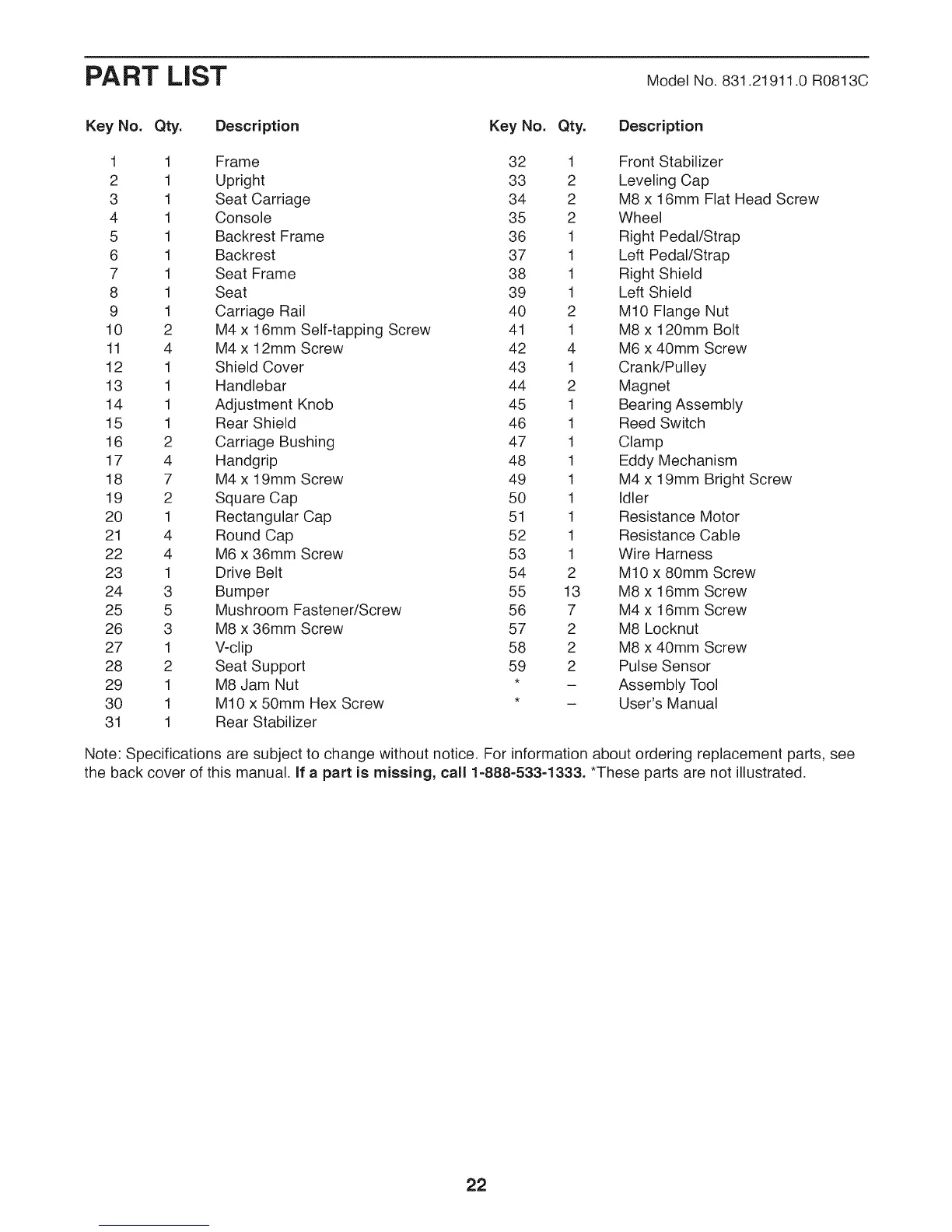

PART LIST Model No. 831.21911.0 R0813C
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 32 1 Front Stabilizer
2 1 Upright 33 2 Leveling Cap
3 1 Seat Carriage 34 2 M8 x 16mm Flat Head Screw
4 1 Console 35 2 Wheel
5 1 Backrest Frame 36 1 Right Pedal/Strap
6 1 Backrest 37 1 Left Pedal/Strap
7 1 Seat Frame 38 1 Right Shield
8 1 Seat 39 1 Left Shield
9 1 Carriage Rail 40 2 M10 Flange Nut
10 2 M4 x 16mm Self-tapping Screw 41 1 M8 x 120mm Bolt
11 4 M4 x 12mm Screw 42 4 M6 x 40mm Screw
12 1 Shield Cover 43 1 Crank/Pulley
13 1 Handlebar 44 2 Magnet
14 1 Adjustment Knob 45 1 Bearing Assembly
15 1 Rear Shield 46 1 Reed Switch
16 2 Carriage Bushing 47 1 Clamp
17 4 Handgrip 48 1 Eddy Mechanism
18 7 M4 x 19mm Screw 49 1 M4 x 19mm Bright Screw
19 2 Square Cap 50 1 Idler
20 1 Rectangular Cap 51 1 Resistance Motor
21 4 Round Cap 52 1 Resistance Cable
22 4 M6 x 36mm Screw 53 1 Wire Harness
23 1 Drive Belt 54 2 M10 x 80mm Screw
24 3 Bumper 55 13 M8 x 16mm Screw
25 5 Mushroom Fastener/Screw 56 7 M4 x 16mm Screw
26 3 M8 x 36mm Screw 57 2 M8 Locknut
27 1 V-clip 58 2 M8 x 40mm Screw
28 2 Seat Support 59 2 Pulse Sensor
29 1 M8 Jam Nut * - Assembly Tool
30 1 M10 x 50mm Hex Screw * - User's Manual
31 1 Rear Stabilizer
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. If a part is missing, call 1-888-533-1333. *These parts are not illustrated.
