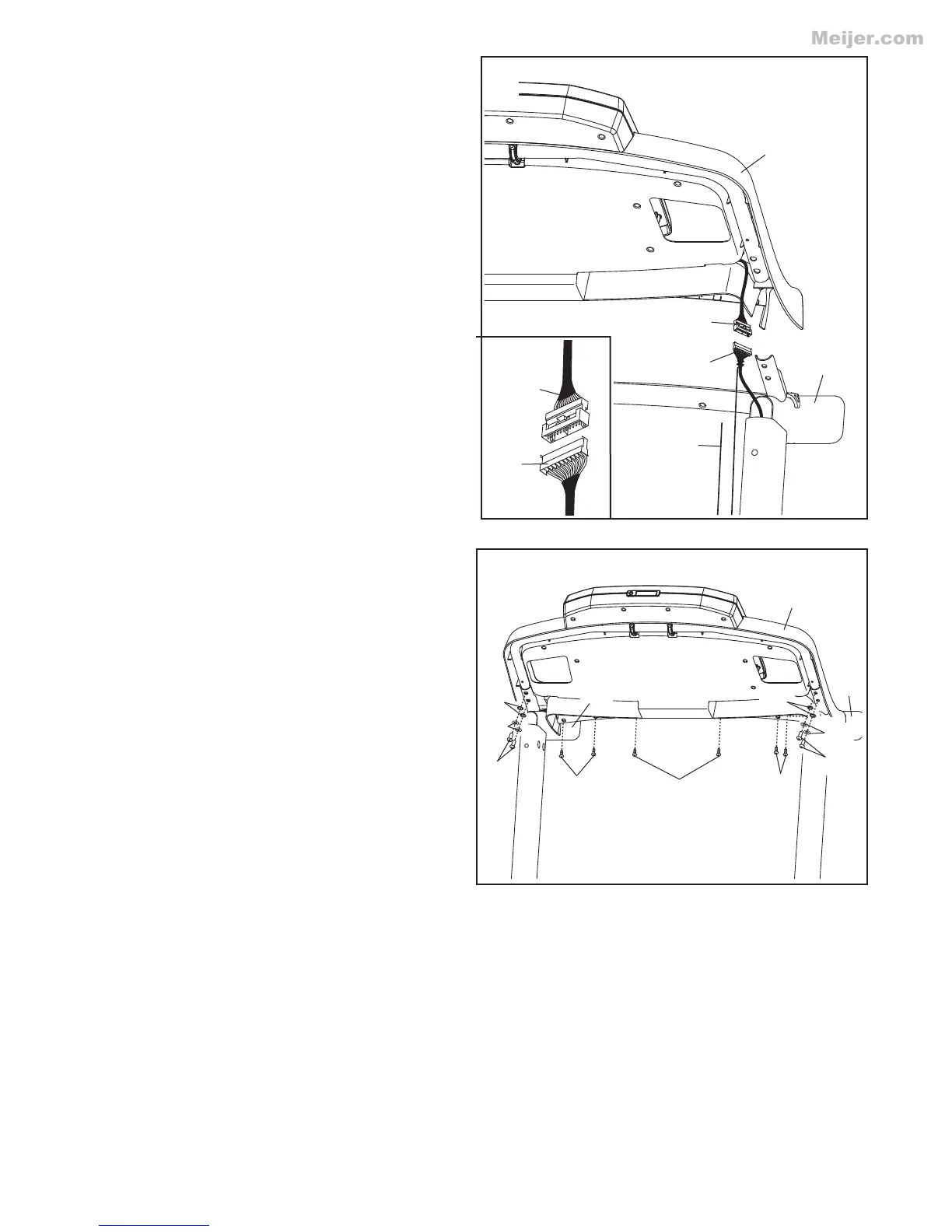

11. Set the console assembly on the Left Handrail
(88) and the Right Handrail (87). Be careful not
to pinch any wires. Insert the excess Upright
Wire (not shown) into the Left Handrail.
Attach the console assembly with six #8 x 1/2"
Screws (1), four 1/4" x 1/2" Screws (36), four
5/16" Flat Washers (113), and four 1/4" Star
Washers (35) as shown. Start all ten Screws,
and then tighten each of them.
See step 7. Fully tighten the four 5/16" x 1"
Screws (5) and the two 5/16" x 1 1/4" Bolts (4).
35
88
1
11
Console
Assembly
1
87
35
36
113
1
113
36
10. With the help of a second person, hold the con-
sole assembly near the Left Handrail (88).
Connect the Upright Wire (81) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Remove the wire tie from the
Upright Wire.
Console
Assembly
Console
Wire
Wire
Tie
88
81
81
Console
Wire
10
To Next Page
