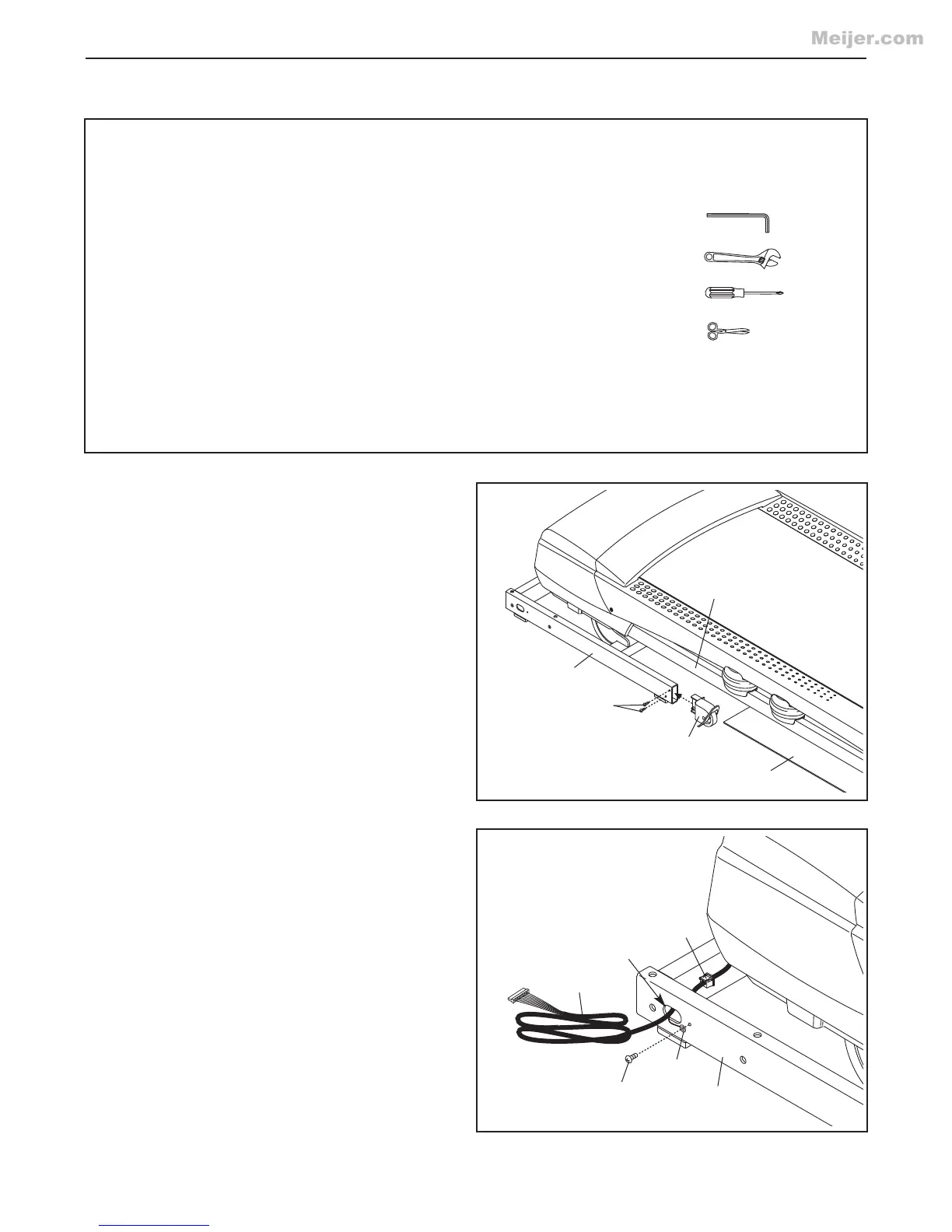

1. Make sure that the power cord is unplugged.
Place a piece of cardboard below the rear of the
Frame (56) to protect the floor or carpet.
Attach the Left Wheel Cap (96) to the Base (94)
with two #8 x 3/4" Screws (2).
Attach the Right Wheel Cap (not shown) to
the right side of the Base (94) in the same
way.
1
96
94
2
56
Cardboard
2. Pull the Upright Wire (81) and the Base Ground
Wire (110) through the indicated hole in the
Base (94).
Attach the Base Ground Wire (110) to the Base
(94) with a #8 x 1/2" Ground Screw (10).
Press the Grommet (77) into the square hole in
the Base (94).
81
2
77
Hole
10
110
94
ASSEMBLY
• To hire a service technician to assemble this
product in your home, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish assembly.
• The underside of the walking belt is coated with
high-performance lubricant. After shipping, there
may be some lubricant on top of the walking belt
or on the shipping carton. This is normal. If there
is lubricant on top of the walking belt, wipe it off
with a soft cloth and a mild, non-abrasive cleaner.
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
one adjustable wrench
one Phillips screwdriver
scissors
To avoid damaging parts, do not use power tools
for assembly.
