6

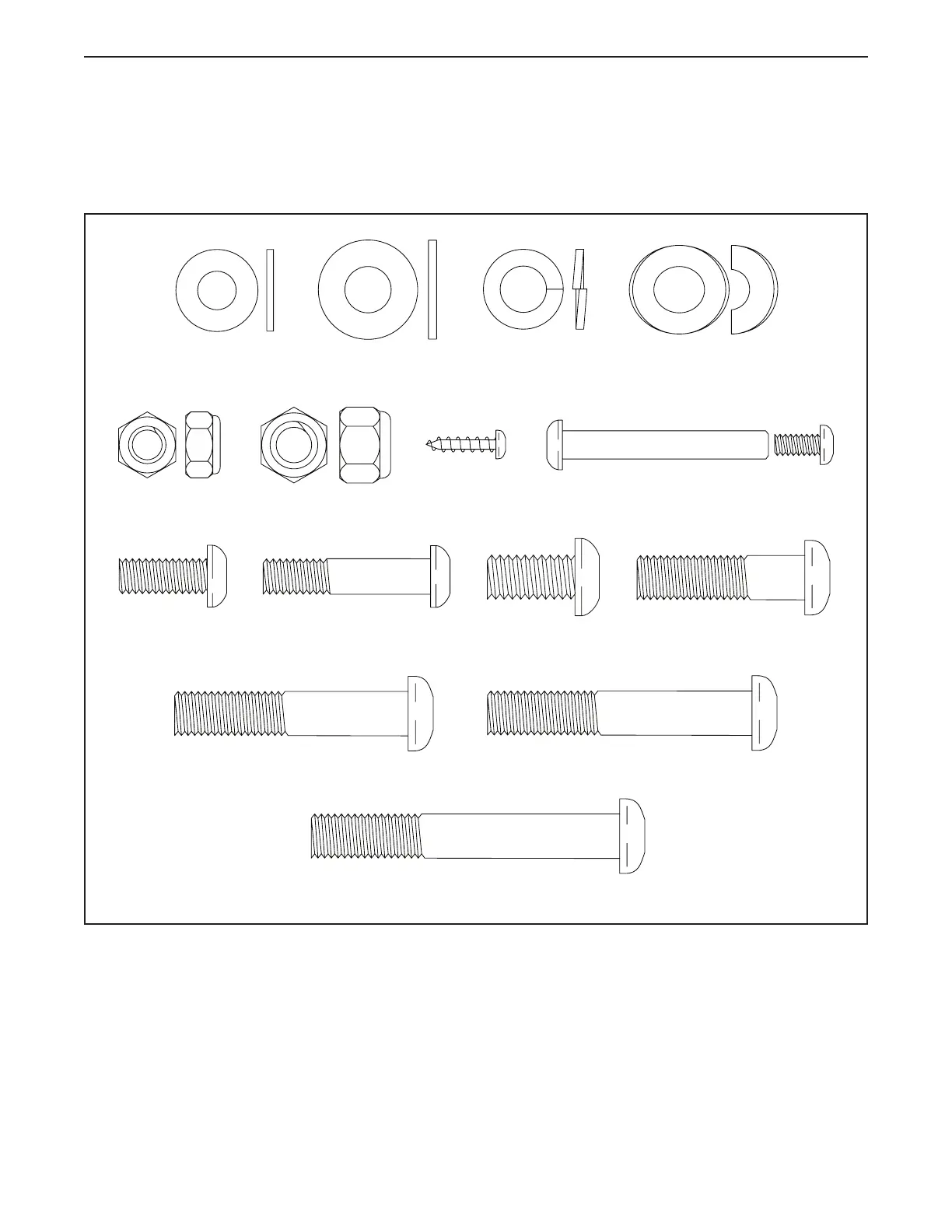

PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 Locknut
(60)–6
M8 Washer
(63)–6
M4 x 16mm
Screw (56)–4
M10 x 70mm Screw (76)–2
M10 x 60mm Bolt (72)–1
M10 x 53mm Screw (73)–1
M10 x 38mm Screw (75)–2
M8 x 38mm Bolt
(59)–6
M8 x 20mm
Screw (61)–6
M6 Bolt Set (67)–2
M10 Washer
(64)–6
M10 Curved
Washer (62)–2
M10 Split
Washer (80)–2
M10 Locknut
(77)–1
M10 x 20mm
Screw (74)–5
