PRODIM 2017 © Proliner Quick start guide - Training preparation Page 9

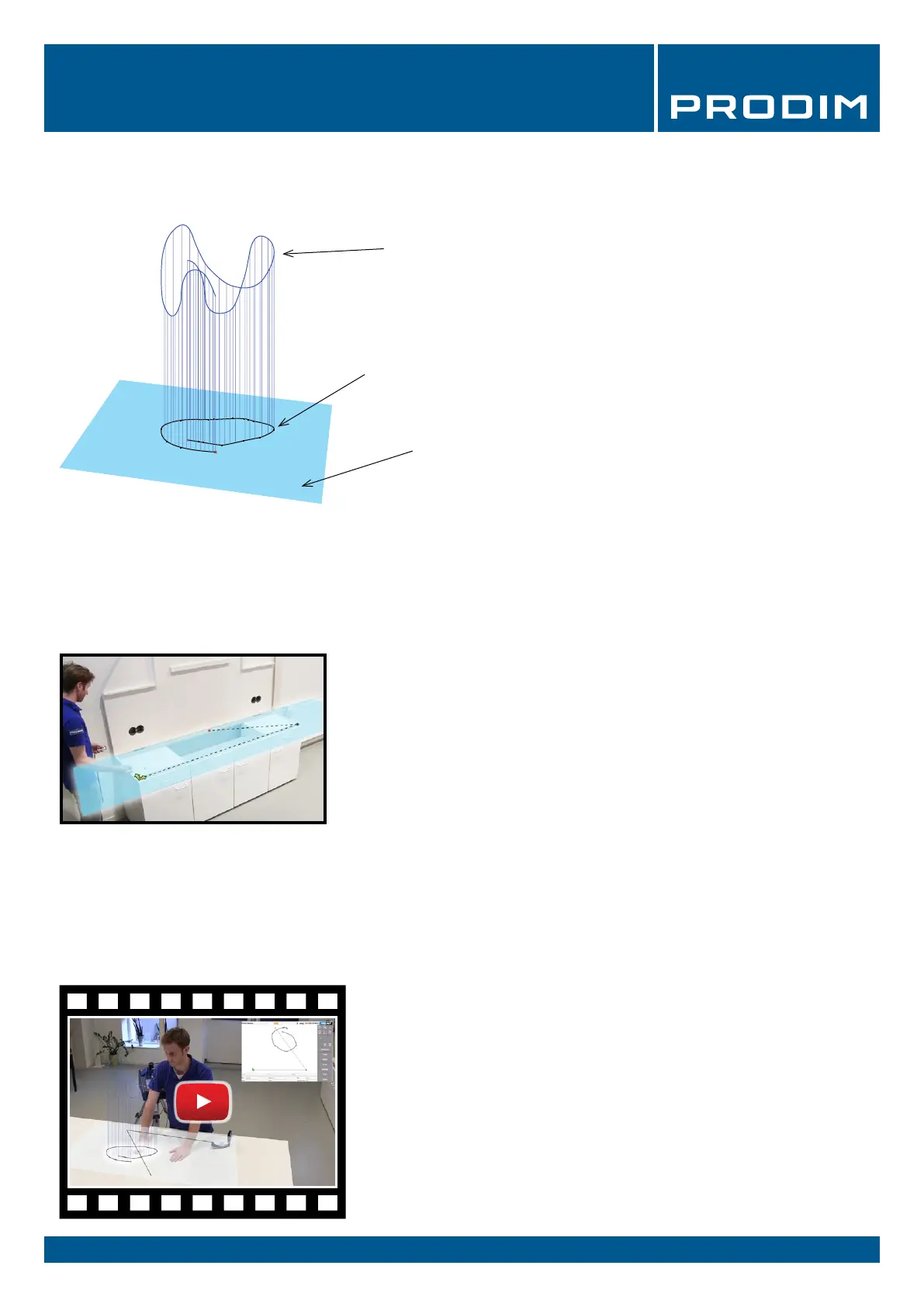

5. Projection
The Proliner always measures in 3D.
To create a 2D template, the measured 3D points have to be projected on a projection plane.
Project plane
3D measurement
2D template
The drawing above is an excessive example to help explain what the Proliner software actually does.
Below is a picture of a kitchen countertop. This top looks fairly at, but is uneven in practice, thus 3D.
Therefore, you will always need to determine the 2D projection plane rst.
The determined 2D projection plane used for measuring the countertop is shown in light blue.
Watch the video
