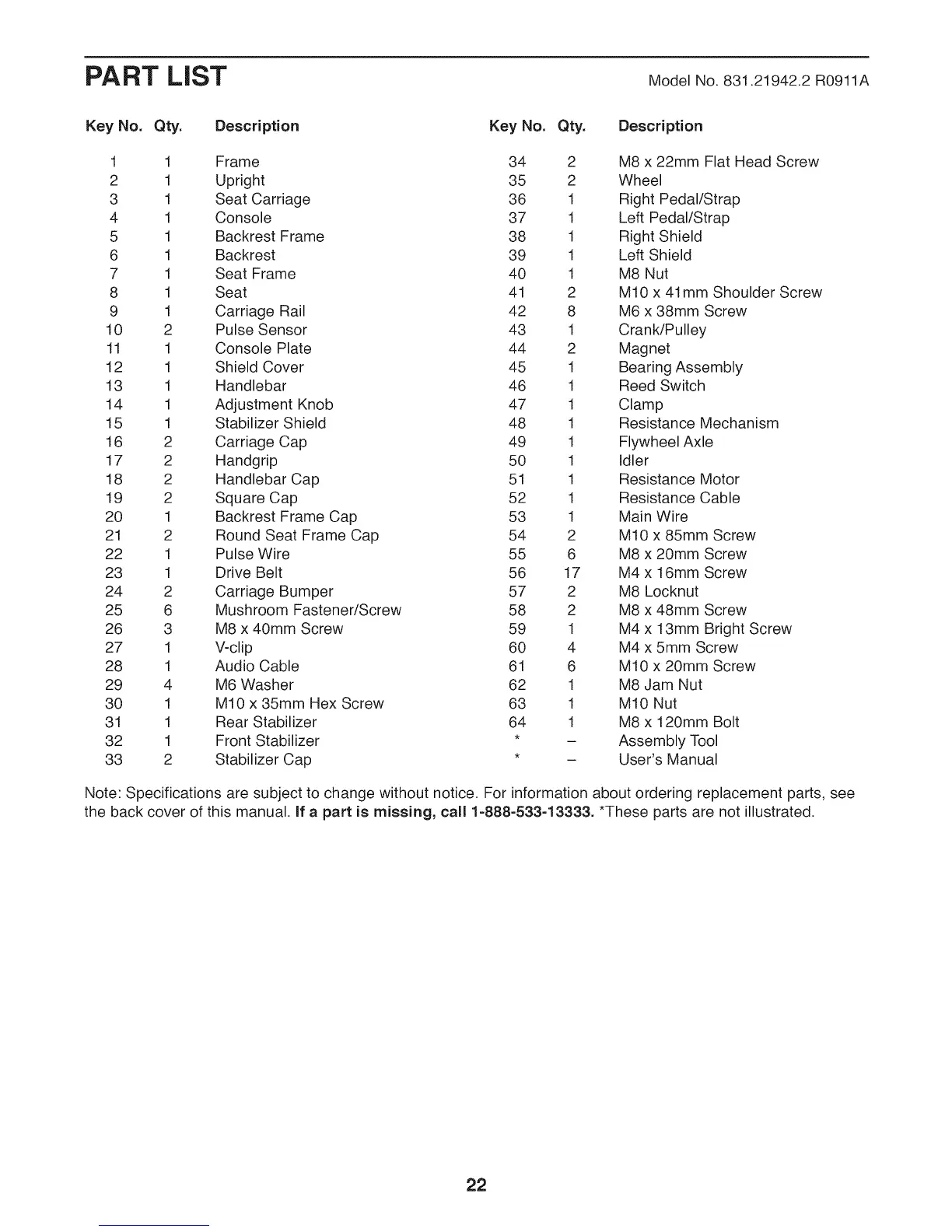

PART LIST Model No. 831.21942.2 R0911A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 34 2 M8 x 22mm Flat Head Screw
2 1 Upright 35 2 Wheel
3 1 Seat Carriage 36 1 Right Pedal/Strap
4 1 Console 37 1 Left Pedal/Strap
5 1 Backrest Frame 38 1 Right Shield
6 1 Backrest 39 1 Left Shield
7 1 Seat Frame 40 1 M8 Nut
8 1 Seat 41 2 M10 x 41mm Shoulder Screw
9 1 Carriage Rail 42 8 M6 x 38mm Screw
10 2 Pulse Sensor 43 1 Crank/Pulley
11 1 Console Plate 44 2 Magnet
12 1 Shield Cover 45 1 Bearing Assembly
13 1 Handlebar 46 1 Reed Switch
14 1 Adjustment Knob 47 1 Clamp
15 1 Stabilizer Shield 48 1 Resistance Mechanism
16 2 Carriage Cap 49 1 Flywheel Axle
17 2 Handgrip 50 1 idler
18 2 Handlebar Cap 51 1 Resistance Motor
19 2 Square Cap 52 1 Resistance Cable
20 1 Backrest Frame Cap 53 1 Main Wire
21 2 Round Seat Frame Cap 54 2 M10 x 85mm Screw
22 1 Pulse Wire 55 6 M8 x 20mm Screw
23 1 Drive Belt 56 17 M4 x 16mm Screw
24 2 Carriage Bumper 57 2 M8 Locknut
25 6 Mushroom Fastener/Screw 58 2 M8 x 48mm Screw
26 3 M8 x 40mm Screw 59 1 M4 x 13mm Bright Screw
27 1 V-clip 60 4 M4 x 5mm Screw
28 1 Audio Cable 61 6 M10 x 20mm Screw
29 4 M6 Washer 62 1 M8 Jam Nut
30 1 M10 x 35mm Hex Screw 63 1 M10 Nut
31 1 Rear Stabilizer 64 1 M8 x 120mm Bolt
32 1 Front Stabilizer * - Assembly Tool
33 2 Stabilizer Cap * - User's Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual, if a part is missing, call 1-888-533-13333. *These parts are not illustrated.
22
