20
OPTIONAL P
ART
Front stabilizer (2.2 mm)
Pièces d’option
Barre stabilisatrice A
V
Optiedeel
Voorste torsiestang
Sonderzubehör
Stabilisator vorne
T54.102
3 X 10 mm T/P screw
Vis
Zelftapschroef
Blechschraube
M3 Flange nut
Ecrou avec fl
asque
Moer met rand
Mutter mit rand
M3 X 15 Screw
Vis
Schroef
Schraube
3 X 8mm Washer
Rondelle
Rondel
Unterlegscheibe
4 mm Plastic washer
Rondelle en plastique
Plastiekrondel
Plastik Unterlegscheibe
6 mm Ball
Boule
Kogel
Kugel
T51.073
3 X 8mm Washer
Rondelle
Rondel
Unterlegscheibe
Front shock absorber
Amortisseur avant
Voorste schokdemper
Stoßdämpfer vorne
T54.067
Spacer
Entretoise
Spacer
Distanzscheibe
M3 Lock nut
Ecrou nylstop
Stopmoer
Stop Mutter

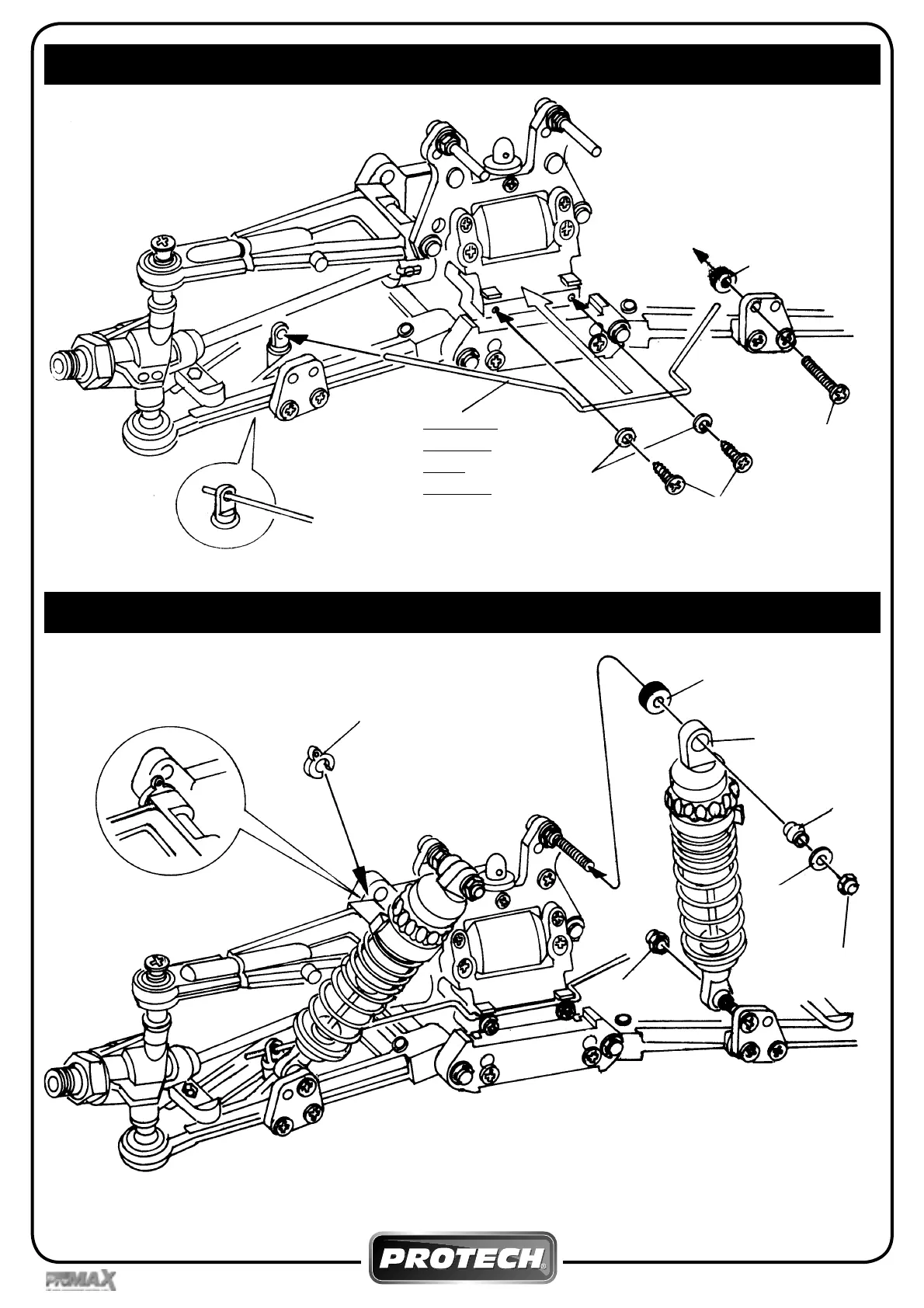

Assembly of the front stabilizer / Montage van de voorste ophanging /
Montage du stabilisateur A
V / Montierung des Vordere Stabilisator
Assembly of the front shocks / Montage van de voorste schokdempers /
Montage des amortisseurs A
V / Montierung des Vordere Stoßdämpfer
19
21
Table of Contents
Safety Precautions
2
Before Driving Checks
2
Maintenance
2
Assembly
2
Tools Required
3
Assembly of the Front and Rear Shock Absorbers
6
Mounting of the Front and Rear Shock Absorbers
7
Installing the Servos
8
Installing the Receiver and Receiver Battery
8
Switch and Antenna Installation
8
Mounting of the Tank
9
Mounting of the Brake Levers
9
Throttle and Brake Linkage
10
Tuned Pipe Assembly
11
Finishing
12
Painting
12
Assembly of the Front and Rear Shocks
13
Assembly of the Differential (X3)
14
Assembly of the Differential (X2)
14
Table of Contents
15
Assembly of the Spur Gear
15
Assembly of the Brake Joint Cup
15
Disque de Frein Remschijf Bremsscheibe
15
Assembly of the Center Diff and Brake Unit
16
T54.028
16
T54.033
16
T54.032
16
T54.022
16
Assembly of the Front Gearbox and Shock Stay
17
Assembly of the Front Steering Knuckles
17
Assembly of the Front Suspension
18
Assembly of the Front Stabilizer
20
Assembly of the Front Shocks
20
Assembly of the Rear Gearbox and Stabilizer
21
T54.064
21
Noix de Cardan Côté Frein
21
Assembly of the Rear Up-Right
22
Assembly of the Rear Suspension Arms
23
Assembly of the Rear Shocks
24
Assembly of the Servo Saver
25
Assembly of the Steering Tie Rod
25
Assembly of the Servo Tie Rod
25
Mounting of the Front Suspension
27
Mounting of the Rear Suspension
27
Buiding the Clutch
28
Assembly of the Air-Filter
28
Installation of the Engine
29
Assembling the Radio Plate
30
Assembly of the Radio Plate and Throttle Linkage
31
Assembling the Plastic Side Guards
32
Connecting the Fuel Tubing
33
Assembly of the Front Stiffener
33
Assembly of the Front Steering Rod
33
Align Throttle Servo and Brake
34
Mounting the Body Posts
34
Mounting the Wing
35
Exploded Diagram and Parts List
36
2-Speed Gearbox Instructions
38
2 Speed Gear Ration Combinations
39
Bodies
40
2-Speed Gearbox Parts
41
