OPERATION
14
WARNING!
Generator must be properly grounded to prevent electrocution.

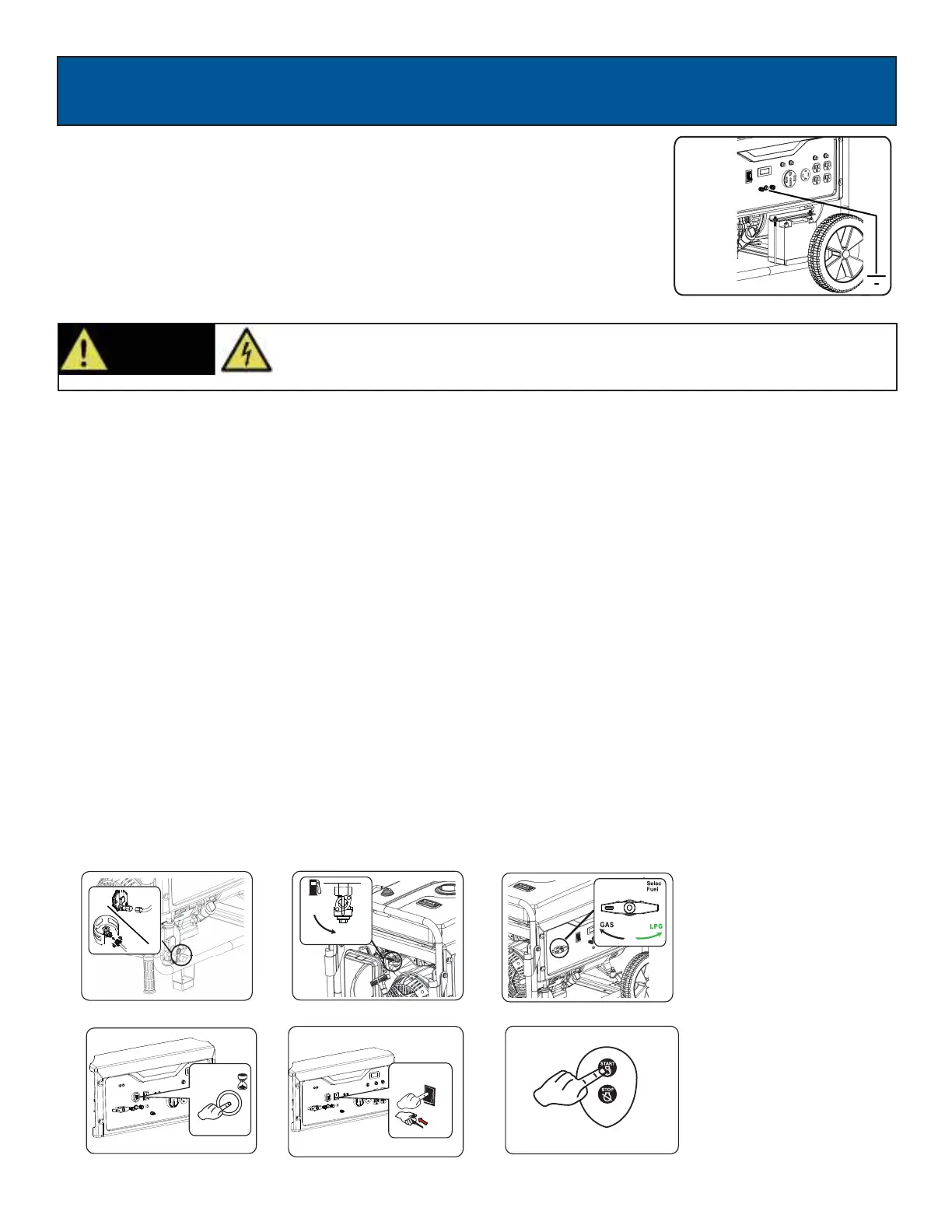

How to Start Engine (See fig 8-14 )
Fig 9
Fig 11 Electric Start
Fig 13
Fig 7
Grounding the Generator (See fig 7)
The portable generator is equipped with a terminal for the connection of a ground
electrode conductor where a grounding electrode system is required by NEC Article
250.34(A). The equipment grounding conductors of the generator receptacles are bonded
to the generator frame. Where the generator supplies power to cord and plug connected
equipment, like power tools, the frame of the generator is not required by the NEC to be
connected to an earthen ground electrode. The generator neutral conductor is bonded to
the generator frame in accordance with NEC Article 250.34(C)
Fig 12 Recoil Start
Fig 8
Fig 10
Place generator on a level surface. All electrical loads MUST be disconnected from generator.
•
Turn fuel valve to the “ON” position. (See fig 9)
• Turn the fuel selector to “GAS” position (See fig 10)
• Push the battery switch to the "RUN" position.
For Push Button Start: Push and hold the One Push Start Button for no more than 1 second and release. The engine
will automatically set the choke and begin the start sequence. If it fails to start successfully, repeat this step. If it fails
to start after 5 attempts, refer to the “TROUBLESHOOTING” section on page 24 of the operator’s manual (See fig 11)
For Manual Start: Pull the recoil starter grip slowly until resistance is felt, then pull rapidly. (See fig 12)
For Remote Control Start: Push and hold start button for no more than 1 second and release (See fig 13)
• Connect LPG hose to the the propane tank and to the generator; Open the valve of LPG bottle (See fig8)
• Turn the fuel selector to “LPG” position (See fig 10)
For Push Button Start: Push and hold the One Push Start Button for no more than 1 second and release. The engine
will automatically set the choke and begin the start sequence. If it fails to start successfully, repeat this step. If it fails
to start after 5 attempts, refer to the “TROUBLESHOOTING” section on page 24 of the operator’s manual (See fig 11)
For Manual Start: Pull the recoil starter grip slowly until resistance is felt, then pull rapidly. (See fig 12)
For Remote Control Start: Push and hold start button for no more than 1 second and release (See fig 13)
WHEN USING LPG
OFF
ON
One push
1
Sec.
ENGINE
START
STO P
STOP
BATTERY.SW.
RUN
WHEN USING GASOLINE
•Always connect the nut and ground terminal on the frame to an appropriate ground source.
