INSTALLATION
Installation Procedures
First complete the electrical connections and then check that all connections are correct.

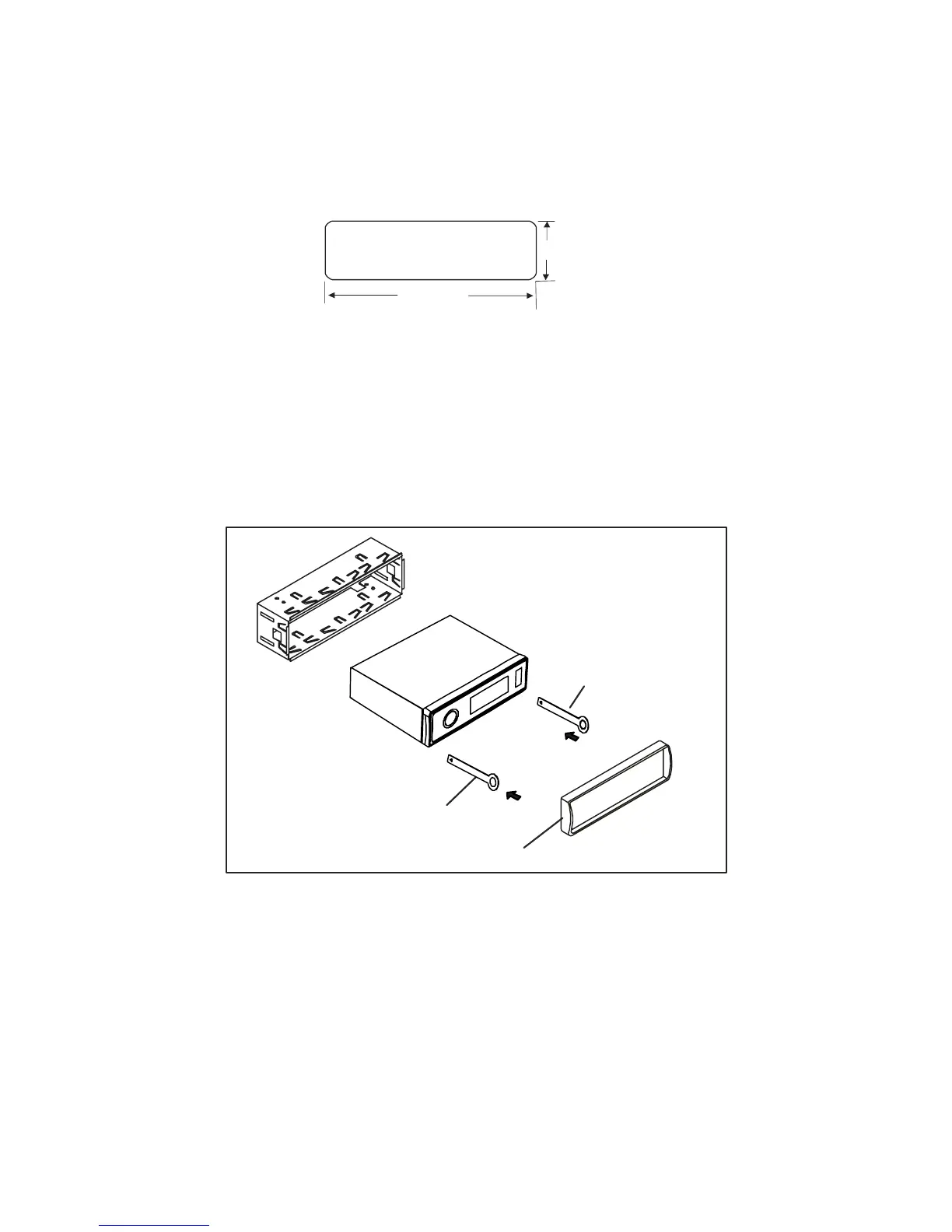

Installation Opening
This unit can be installed in any dashboard that has an opening as illustrated as below figure.
To Install the Ship/Car Receiver
Be sure to first test all connections and then follow these steps to install this unit.
1. Make sure the ignition is turned off and then disconnect the cable from the vehicle battery’s negative (-)
terminal.
2. Disconnect the wire harness and the antenna.
3. Lift the left or right top corner of the plastic outer trim ring then pull it out to remove it.
4. Insert the two bracket keys into the left and right side of the chassis, as shown as below figure to
separate the chassis from the housing.
5. Insert the mounting sleeve into the dashboard and bend the mounting tabs out with a screwdriver.
Make sure that the lock lever is flush with the mounting sleeve and that it does not project beyond it.
6. Insert this receiver into the mounting sleeve.
7. Connect wires as illustrated in the “Wiring Diagram.”
8. Install the plastic outer trim ring.
182 mm
53 mm
Bracket key
Bracket key
Plastic outer trim ring
To Next Page
