Pylontech Force-H1 User Manual

13
/34
Definition of RJ45 Port Pin
No.
CAN
RS485
RS232
1
---
---
---
2
GND
---
---
3
---
---
TX
4
CANH
---
---
5
CANL
---
---
6
---
---
RX
7
---
RS485A
---
8
---
RS485B
---

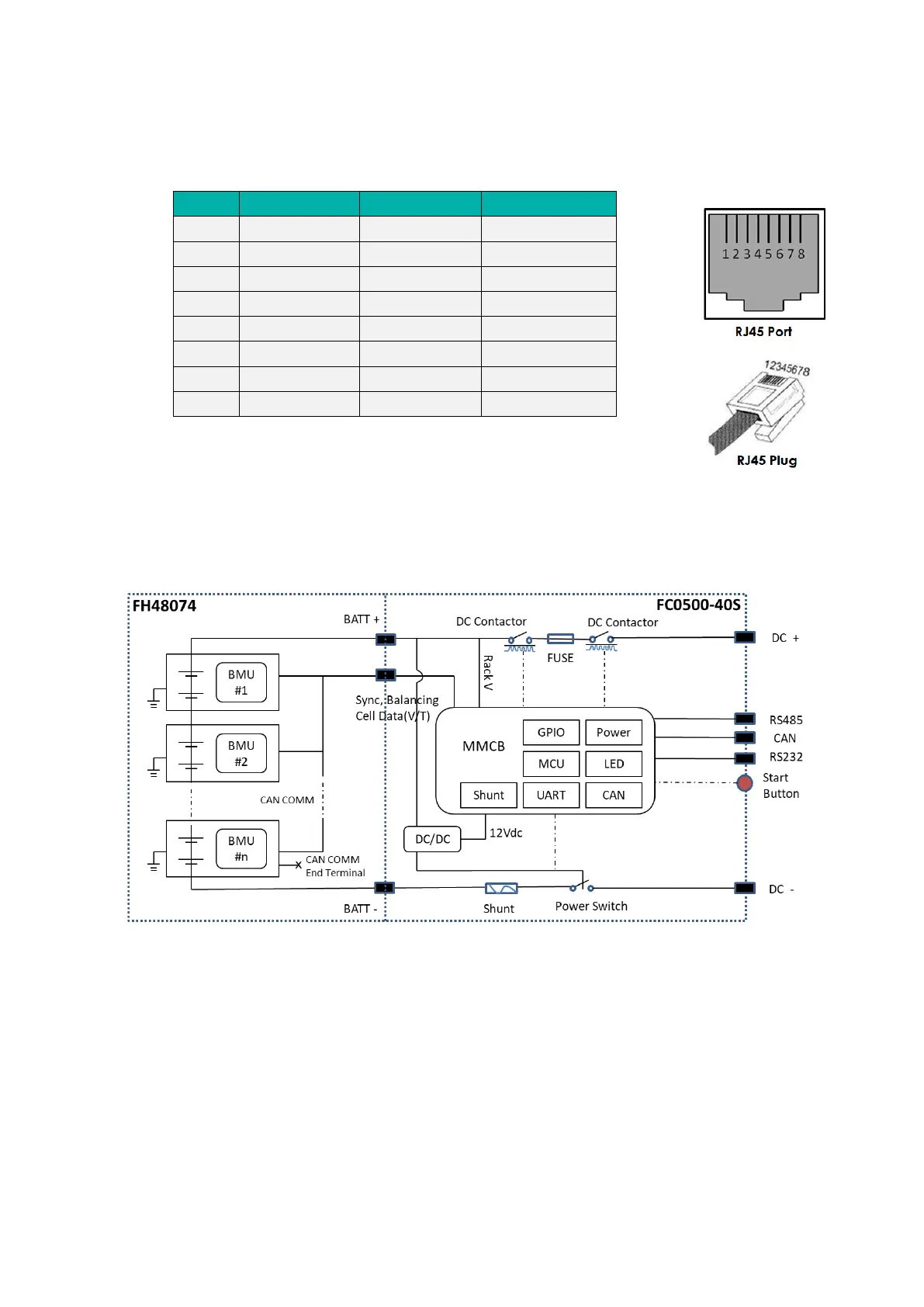

2.3 System Diagram

Pylontech Force-H1 Specifications

General

Battery Type	Lithium Iron Phosphate (LiFePO4)
Nominal Voltage	48 V
Capacity per Module	3.55 kWh
Operating Temperature	-10°C to 50°C
Communication	CAN, RS485
Warranty	10 years
Peak Discharge Current (3 seconds)	100 A
Charge Voltage	52.5 V - 54 V
Storage Temperature Range	-20°C to 60°C
IP Rating	IP20
Cycle Life	>6000 cycles
