2.3 Equipment Interface Instruction
This section details the front and back panel of the interface functions.

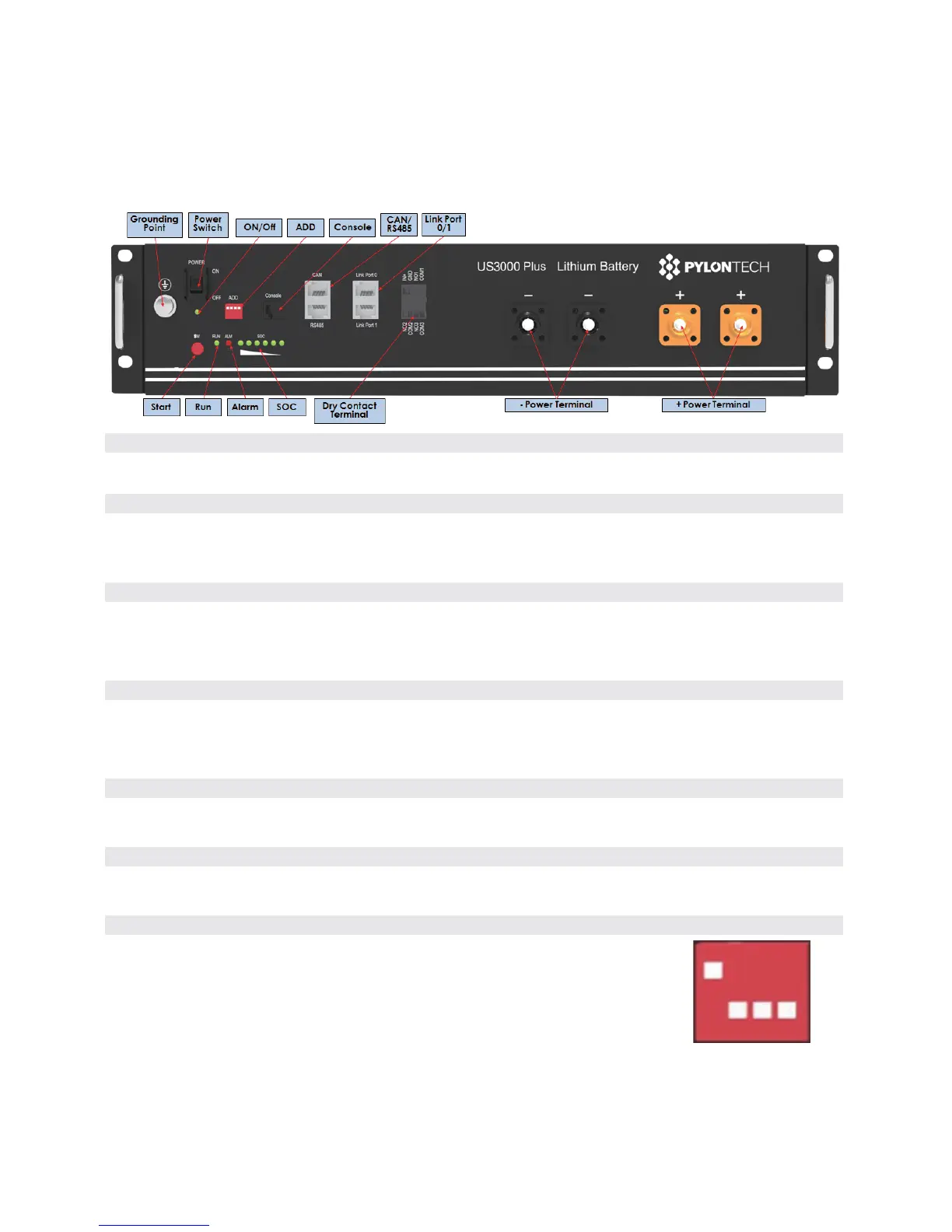

US3000 Plus Product Front Interface
Power Switch
Power Switch: to turn ON/OFF the whole battery BMS standby, no power output.
ON/OFF
ON/OFF light: green LED lighting to show the Power Switch is ON, and the BMS has electricity
(No power output).
RUN
RUN light: green LED lighting to show the battery is running. US3000B does not have this LED
light.
Alarm
Alarm light: red LED flashing to show the battery has alarm, and lighting to show the battery is
under protection.
SOC
SOC light: 6 green LEDs to show the battery’s current capacity.
Start
Start Button: press more than 0.5s to start the battery module, Power output ready.
ADD Switch
ADD Switch: 4 ADD switches, Dip1 to definite different baud rate (0 is
115200, 1 is 9600). Nether position is OFF, means “0”. Upper position is ON,
means “1”. “0000” setup the baud rate 115200, and “1000” setup the
baud rate 9600. The settings will be active only after restart the battery.
ON
OFF
5 / 23 18BQSV0801
