QNAP TS-212P User Manual

103
Chapter 8. Install M.2 SSDs
8.1 M.2 SSD Heat Sink Installation
NAS models that support M.2 SSDs are packaged with M.2 SSD heat sinks. For reliable
operation, it is recommended that you install the heat sinks onto the SSD controller.
To install heat sink:
1. Locate the SSD controller on the M.2 SSD. Location of SSD controller varies by model.
Refer to SSD manufacturer for details.
2. Remove any existing stickers or labels on the controller.

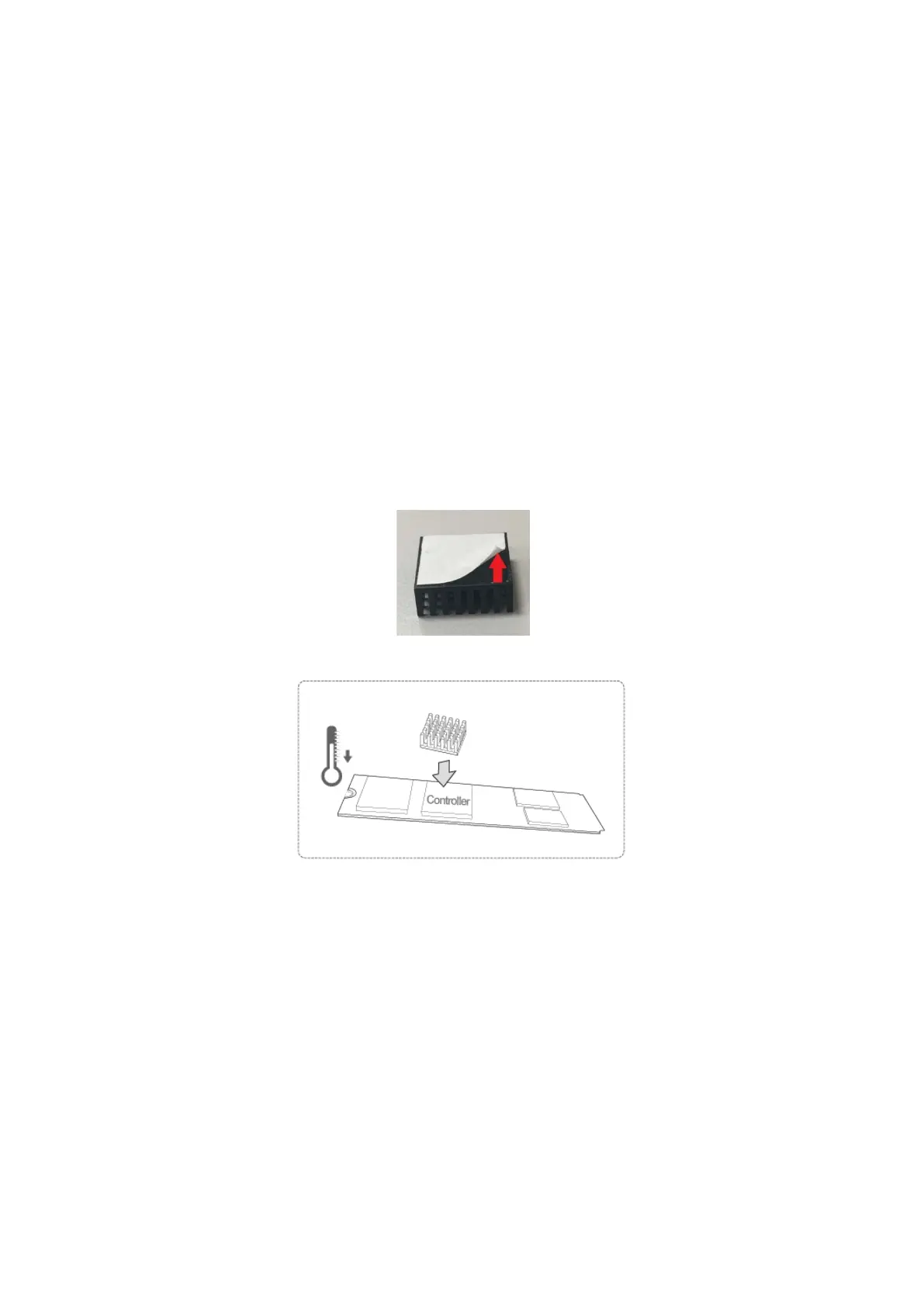

3. Remove the release liner from bottom of the heat sink.
4. Stick heat sink onto the controller. No thermal paste required.

QNAP TS-212P Specifications

General

RAID levels	0, 1, JBOD
RAID support	Yes
Storage drive capacity	8 GB
Storage drive interface	Serial ATA II
Storage drives installed	No
Installed storage drive type	-
Supported storage drive types	HDD
Total installed storage capacity	0 TB
Maximum supported storage capacity	8 TB
Number of storage drives installed	0
Number of storage drives supported	2
Processor family	Marvell
Processor frequency	1.66 GHz
Flash memory	16 MB
Internal memory	512 GB
Internal memory type	DDR3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Product color	White
Type	NAS
Power consumption (sleep)	6 W
Power consumption (typical)	13 W

Weight and Dimensions

Depth	218.4 mm
Width	85 mm
Height	165.5 mm
Weight	910 g
Package weight	2200 g
