QNAP TS-212P User Manual

74

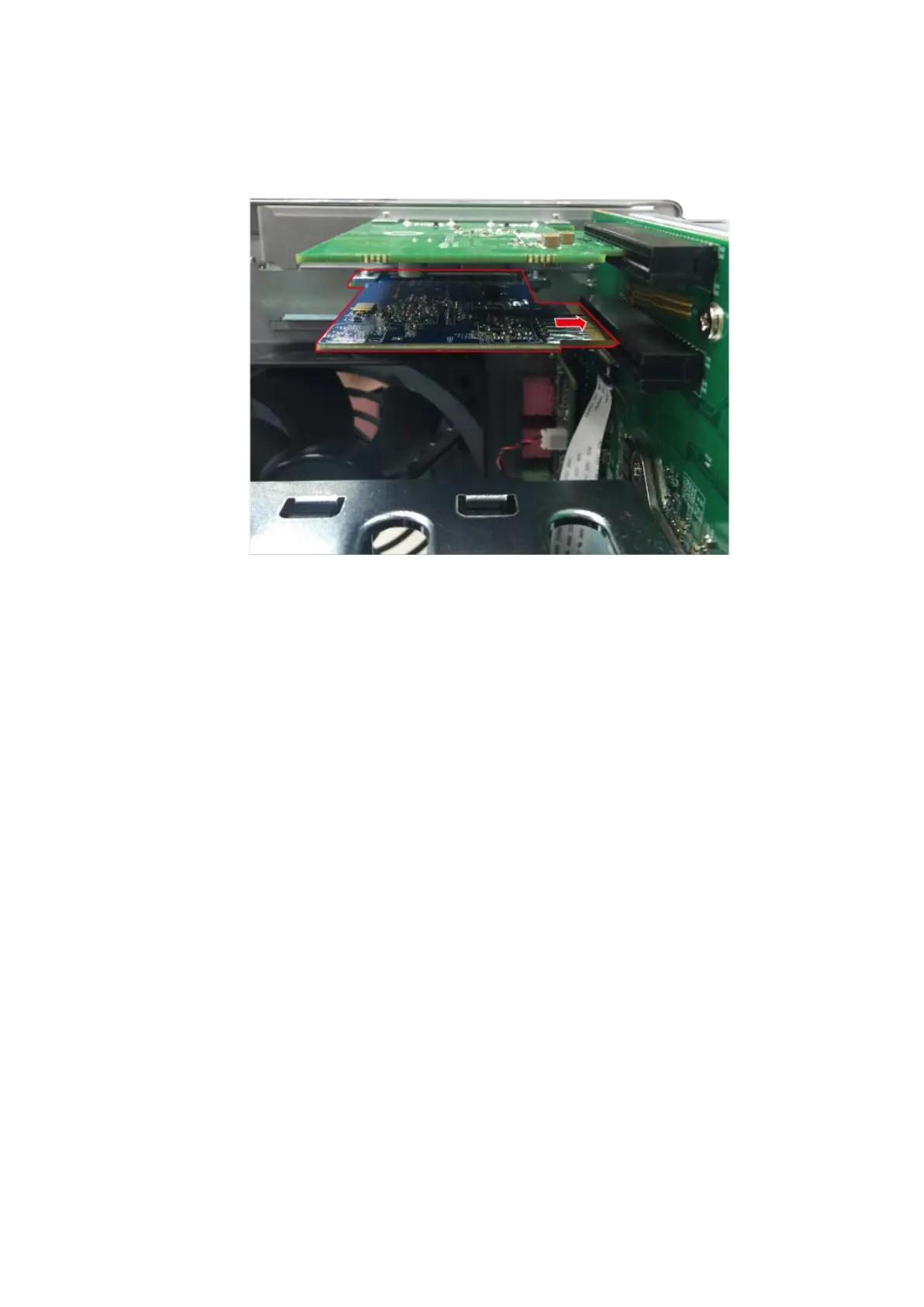

network expansion card to the break in the PCIe slot. Fully insert the network
expansion card to the expansion slot.
10. Fasten screw to lock in card.
11. Place PSU back to its original position and fasten the 5 screws that were removed in
steps 6 and 7.
12. Close the case cover and fasten the screws. Connect the power adaptor and cables
to the NAS.
13. To verify that the network expansion card has been installed correctly and is being
recognized by the operating system, log into QTS as administrator and go to
“Control Panel” > “System Settings” > “System Status” > “Network Status” and
check for the total number of network interfaces.
6.4 TS-431XU, TS-463U, TS-463U-RP, TVS-471 Series
1. Turn off the NAS. Disconnect the power adaptor, network cable(s), and any other
connectors or cables from the NAS.
2. Before installing the network expansion card, put on an antistatic wrist strap to
prevent electrostatic discharge. The crocodile clip should be connected to the ground.

QNAP TS-212P Specifications

General

RAID levels	0, 1, JBOD
RAID support	Yes
Storage drive capacity	8 GB
Storage drive interface	Serial ATA II
Storage drives installed	No
Installed storage drive type	-
Supported storage drive types	HDD
Total installed storage capacity	0 TB
Maximum supported storage capacity	8 TB
Number of storage drives installed	0
Number of storage drives supported	2
Processor family	Marvell
Processor frequency	1.66 GHz
Flash memory	16 MB
Internal memory	512 GB
Internal memory type	DDR3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Product color	White
Type	NAS
Power consumption (sleep)	6 W
Power consumption (typical)	13 W

Weight and Dimensions

Depth	218.4 mm
Width	85 mm
Height	165.5 mm
Weight	910 g
Package weight	2200 g
