67
TD-001578-01-B

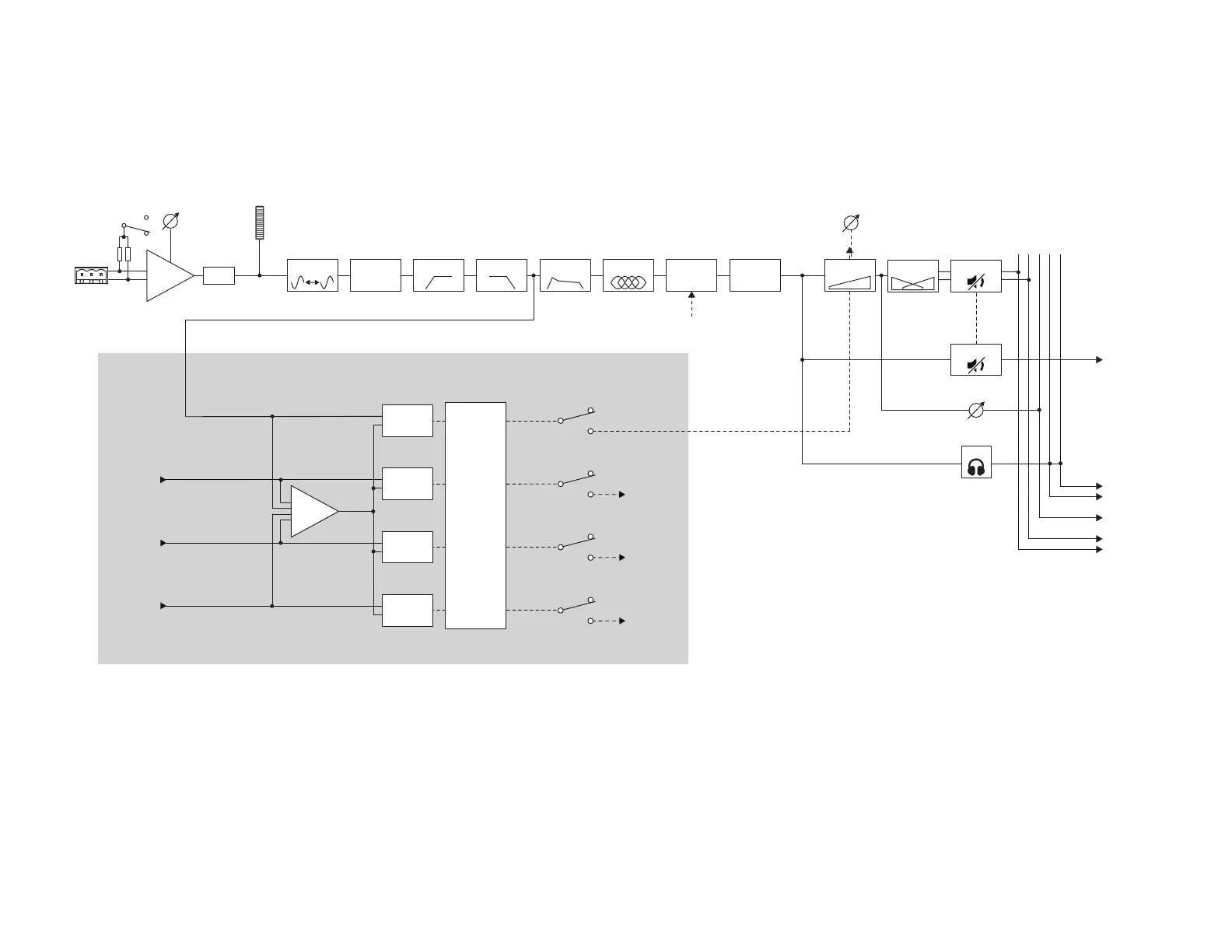

MP-M Block Diagrams
Mic/Line Input Channels & Auto Mix
er
A/D
Mi
c Pre
+12 V
Level
From
Mic/Line
Input 1
From
Mic/Line
Input 2
From
Mic/Line
Input 3
From
Mic/Line
Input 4
Mic/Line
Input 1
Low Cut
Polarity
Φ
Delay
High Cut
PEQ
Comp
AGC
Automatic Microphone Mixer
MP-M40: 4 Channels
MP-M80: 8 Channels
To
Mic/Line
Ch. 2
To
Mic/Line
Ch. 3
To
Mic/Line
Ch. 4
Pan
Mute
Store &
Forward
Gain
Gate
FX
Cue
Gain
Gain
Mute
From GPI
or Gate
Compare
Compare
Auto-Mixer
Algorithm
Compare
Compare
To Outputs
L
R
FX
L
R
Mixer
Cue
To Cue
To FX
To Mixer
72
74
Table of Contents
Maintenance and Repair
2
FCC Statement
3
Arranty
3
Table of Contents
4
Music & Paging Zone Mixer Reference
7
Netting Started
7
System Requirements
7
MP Install
7
MP Manage
7
MP-MFC Controllers
7
MP-M Hardware
8
Front Panel
8
Rear Panel
8
Specifications
9
MP Install
10
Control Panel
10
Navigational Controls
10
Operational Controls
10
Input Channels
11
Input Channels Block Diagrams
11
MIC/Line Input Channels and Auto-Mixer
11
Line Inputs, USB Inputs, Music on Hold, Cue, Wireless Paging
11
Input Channels - Home Screen
12
Input Channel − Navigation and Master Controls
13
Input Channel Navigation Controls
13
Input Channel Master Controls
13
Input Channel − Setup
14
Input Channel − Overview
15
Input Channel − Presets
16
Factory Presets
16
User Presets
17
Input Channel − PEQ
18
Input Channel − Dynamics (Compressor / AGC)
19
Compressor
19
Automatic Gain Control (AGC)
20
To Adjust the AGC
20
Input Channel − Gate
21
Input Channel − USB Player Setup
22
Input Channel − USB Player Overview
23
PEQ Section
23
Dynamics Section (AGC)
23
Input Channel − USB Player
24
Input Channel − USB Player PEQ
25
To Adjust the AGC
26
Output Zones
27
Output Zone - Block Diagrams
27
Mono Zone
27
Stereo (Linked) Zone
27
Output Zones - Home Screen
28
Output Zone − Navigation & Master Controls
29
Output Zone Navigation Icons
29
Output Zone Master Controls
29
Output Zones − Setup / Delay
30
About Stereo Linking
30
About Delay
30
Output − Music on Hold (Moh)
31
Output Zone − Overview
32
Output Channel − Sources
33
Priority Sources
33
Selectable Sources
33
Output Zone − Presets
34
Factory Loudspeaker Library
34
User Presets
35
Filters / PEQ
36
Output Zone − Graphic Equalizer (GEQ)
37
Output Zone − Anti-Feedback
38
Output Zone − Loudness
39
To Set Loudness Compensation
39
Output Zone − Limiter
40
Mixer Main - Home Screen
41
Mixer
41
Mixer Main - Block Diagram
41
Mixer Main - PEQ
42
Mixer - FX Channel
43
Mixer - FX Effect
43
Mixer − FX Presets
43
Factory Presets
43
Mixer - FX Shelf EQ
44
Setup Izard
45
On the Screen
45
Wizard Steps
45
Menu
46
Menu - Home Screen
46
Menu - Configurations
47
Managing Configurations - Online
47
Managing Configurations - Offline
48
Configuration Files and Windows
48
Common Workflow Scenarios
48
Menu - Scenes
50
Menu - Scheduling
51
Menu - Controllers
52
Menu - Smartphone
53
Access Options
53
Menu − GPI Setup
54
To Setup the Recall Conditions
54
Menu - Report
55
Report Format
55
Menu - System Test
56
Menu − Network
57
USB Wi-Fi Adapters
57
Network Help Button
57
Connecting to a Facility's Network
57
Menu - Wired Network Setup: Auto IP Address
58
Menu - Wired Network Setup: Static IP Address
59
Menu - Wireless Network Setup: Create New Network
60
Menu - Wireless Network Setup: Connect to Existing Network
61
Menu - Security
62
Staff Access Management
62
Reset Passwords
62
Menu - Settings
63
Multi-Function Controller
64
Setup
64
Operation
64
MP Manage
65
MP Manage − Security
65
Log in as Manager
65
Add a New Users
65
MP Manage − Home Screen
66
MP Manage − Zone Overview
67
MP Manage - Zone Edit
67
MP Manage − Scheduler
68
To Modify an Event (New or Existing)
68
MP Manage − Scenes
69
MP Manage − Player
69
MP Manage − Mixer
70
MP Manage − Paging
71
MP-M Dimensions
72
MP-M Block Diagrams
73
MIC/Line Input Channels & Auto Mixer
73
Line Inputs, USB Inputs, Music on Hold, Cue, Ireless Paging
74
Mono Zone Output
75
Stereo (Linked) Zone Outputs
76
Mixer
77
Contact QSC
78
