Chapter 2

QDSP-2070 User’s Manual

Changing mini-PCIe

(1) Place your mini-PCIe module toward the mini-PCIe socket.

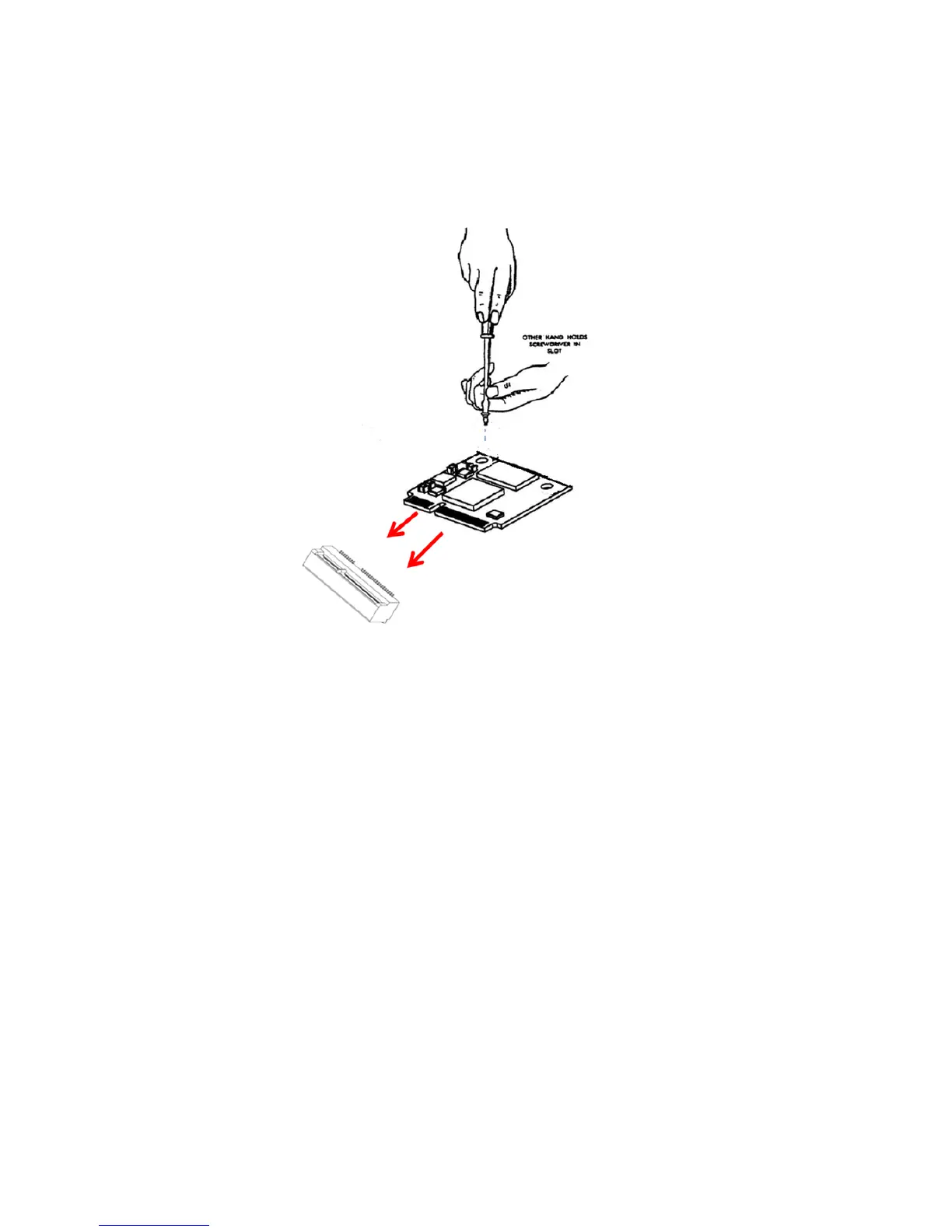

Figure 16 Mini-PCIe Installation

(2) Tightening the screw on the hole of the mini-PCIe module as shown above.
