LTE Module Series
EM05 Hardware Design
EM05_Hardware_Design Confidential / Released 44 / 59
Voltage Standing Wave Ratio (VSWR)
Meet the requirements of:
Max 1.3 (DC~3GHz)
Max 1.45 (3GHz~6GHz)
The standard 2mm × 2mm RF receptacle connector to be used in conjunction with EM05 can be two
types of mating plugs that meet a maximum height of 1.2mm using a Ø 0.81mm coax cable or a maximum
height of 1.45mm utilizing a Ø 1.13mm coax cable.
The following figure shows the specifications of 0.81mm coaxial cable mating the recommended RF
connector.

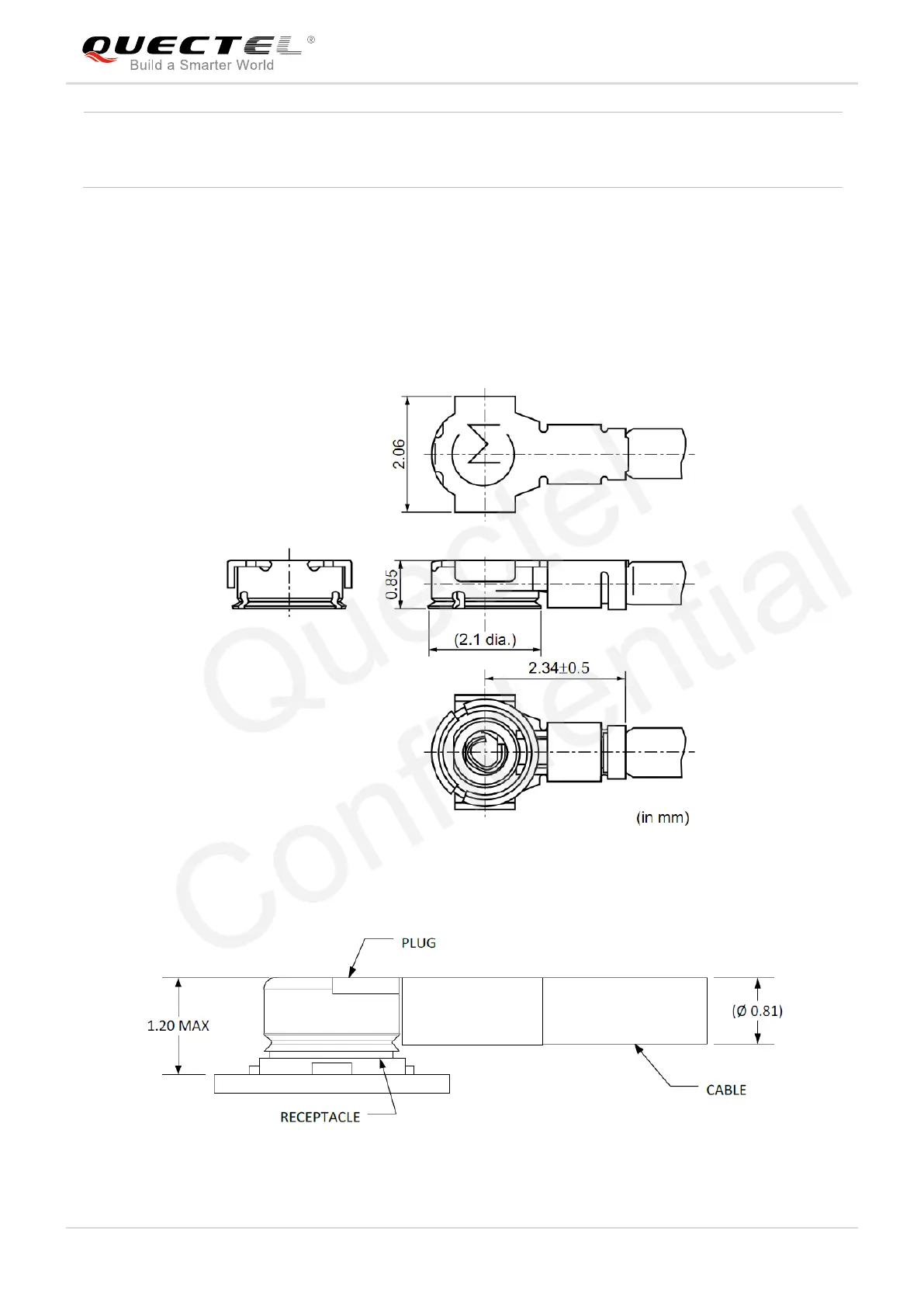

Figure 28: Specifications of 0.81mm Coaxial Cable
Figure 29: Connection between the RF Connector and the 0.81mm Coaxial Cable
