Quectel EG21-G User Manual

LTE Module Series
EG21-G Hardware Design
EG21-G_Hardware_Design 28 / 100
RXD
TXD
RI
DTR
AP_READY
TXD
RXD
EINT
GPIO
GPIO
Module
Host
GND
GND

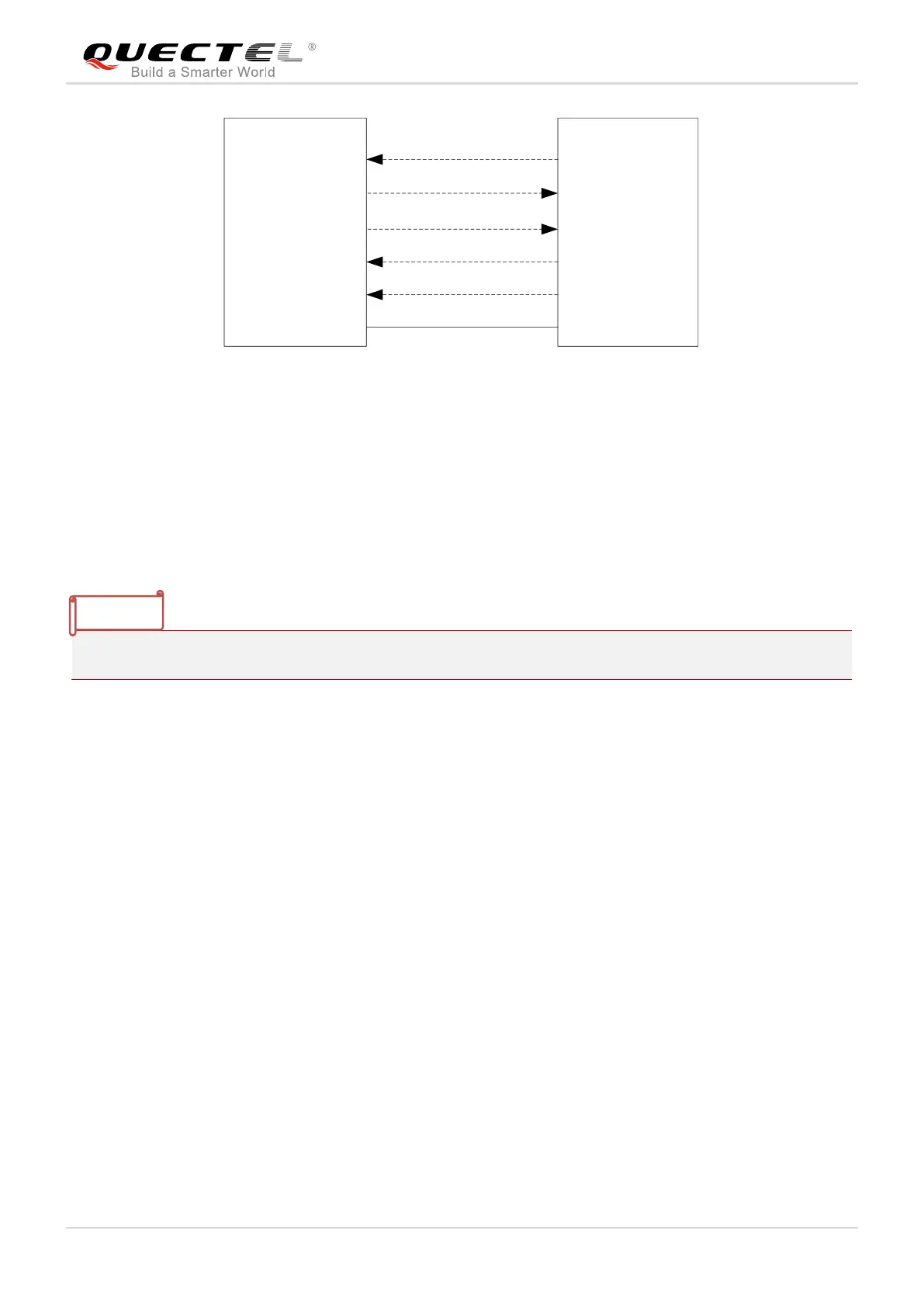

Figure 3: Sleep Mode Application via UART
 Driving the host DTR to low level will wake up the module.
 When EG21-G has a URC to report, RI signal will wake up the host. Please refer to Chapter 3.19 for
details about RI behaviors.
 AP_READY will detect the sleep state of the host (can be configured to high level or low level
detection). Please refer to AT+QCFG="apready"* command for details.

“*” means under development.
3.5.1.2. USB Application with USB Remote Wakeup Function
If the host supports USB suspension/resume and remote wakeup function, the following three
preconditions must be met to let the module enter into the sleep mode.
 Execute AT+QSCLK=1 command to enable sleep mode.
 Ensure the DTR is held at high level or keep it open.
 The host’s USB bus, which is connected with the module’s USB interface, enters into suspension
state.
The following figure shows the connection between the module and the host.
NOTE
