79
/
100
7.2.

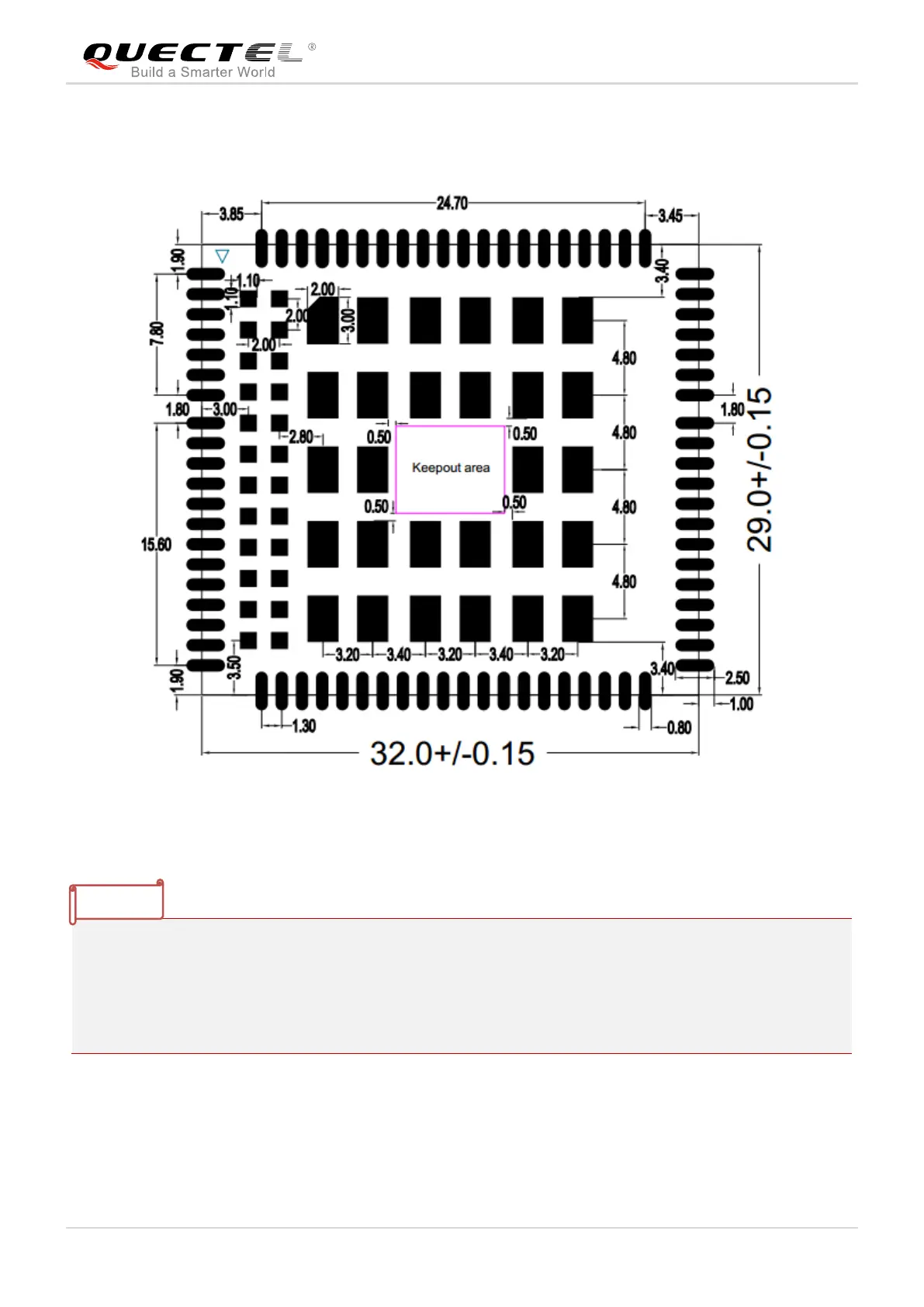

Recommended Footprint
Figure
43
: Recommended Footprint (Top View)
1.
The keepout area should not be designed.
2.
For
easy
maintenance
of
the
module,
please
keep
about
3mm
between
the
module
and
other
components in the
host PCB.
3.
EG21
-
G
share
the
same
recommended
footprint
with
EC25,
but
dif
ferent
recommended
stencil
.
Refer to
document [4]
for more information.
NOTES
79
81
