2. MAINTENANCE

SUPPORT CENTRE

2.2.13. ACCESSING THE BOILER

For most control and maintenance operations, the

panels of the casing have to be removed.

To remove the panel of the boiler, please follow the

instructions below (see fig.1):

› remove the fastening screws (1) placed on the

side of the panel flange and remove it;

› remove the fastening screws (2) placed on the

upper and lower side of the panel, and remove it

by pulling it towards yourself;

› remove the fastening screws (3) placed on

the lower side of the boiler and remove the

connection cover.

To intervene on the front of the boiler, please

proceed as follows:

› remove the fastening screws (4) placed on the

front panel;

› grab the front panel and remove it by pulling it

towards yourself;

To intervene on the side panels of the boiler, please

proceed as follows:

› remove the fastening screws (5) placed on the

front edge of the side panel;

› grab the bottom of the panel, and remove it by

moving it sideways and pulling it upwards.

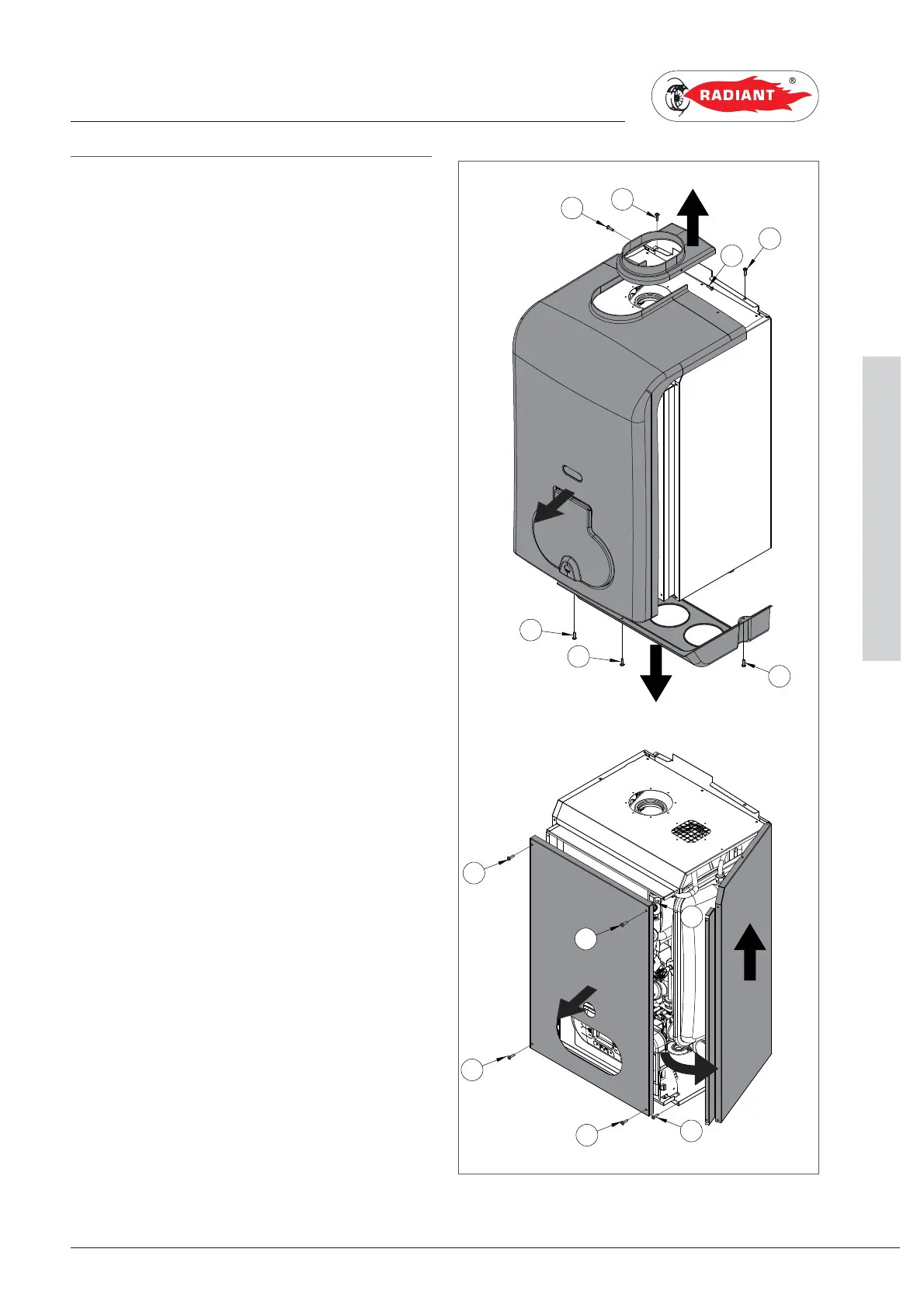

fig. 1
