IN/OUT connector DSUB15/F (female)
Pin1 – GNDWE
Pin2 - OUT1
Pin3 - OUT2
Pin4 – COMM
Pin6 - IN4
Pin7 - IN3
Pin11 - IN2
Pin12 - IN1
Pin14 - OUT4
Pin15 - OUT3
6.4.1. Technical Specifications
Output parameters
Output quantity
4
Output type
Solid-state relay
Cable cross-section
0.14 - 0.5 mm
2
Maximum output current
0.5 A DC
Maximum output voltage
30 VDC
Input parameters
Input quantity
4
Input type
Optoisolated
Cable cross-section
0.14 - 0.5 mm
2
Input voltage range
524VDC

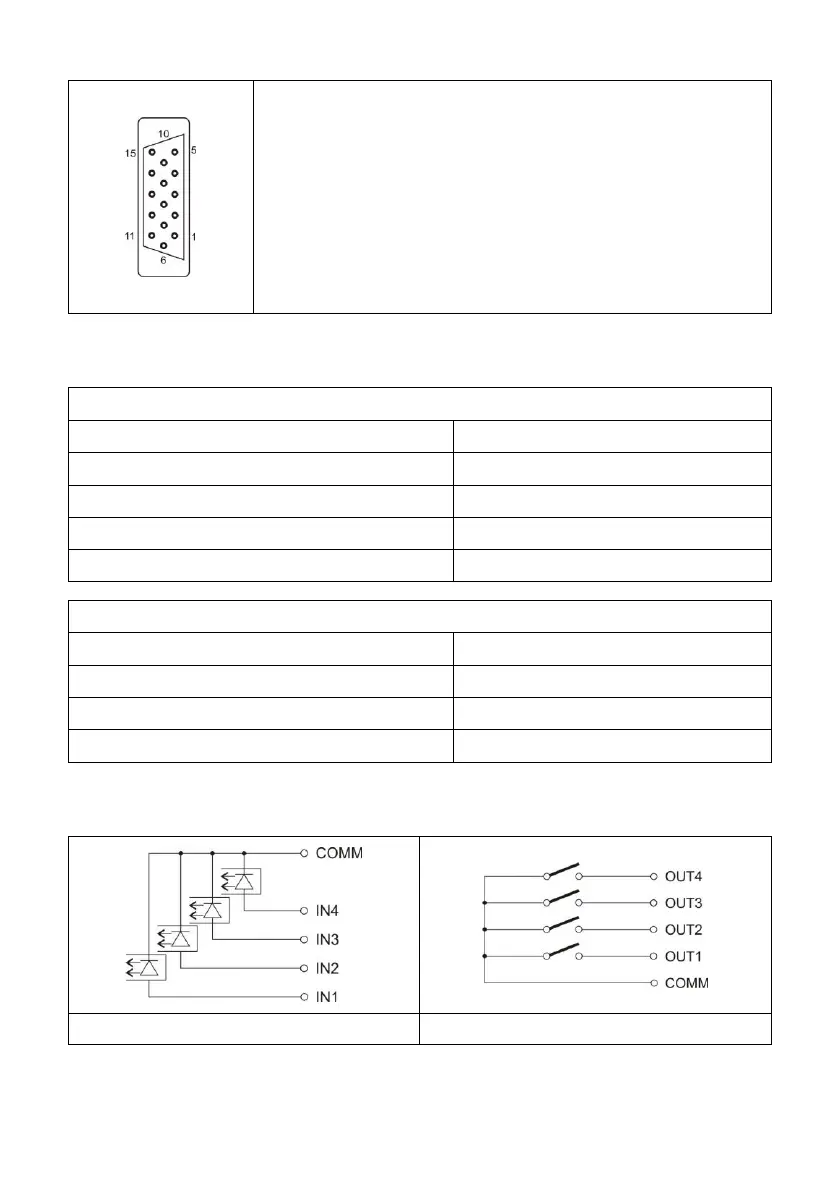

6.4.2. I/O Schematic Diagrams
4 inputs
4 outputs
