6-6 SL520/530/631 PLUS Chartplotter Displays
Selecting the Display
Unit Location

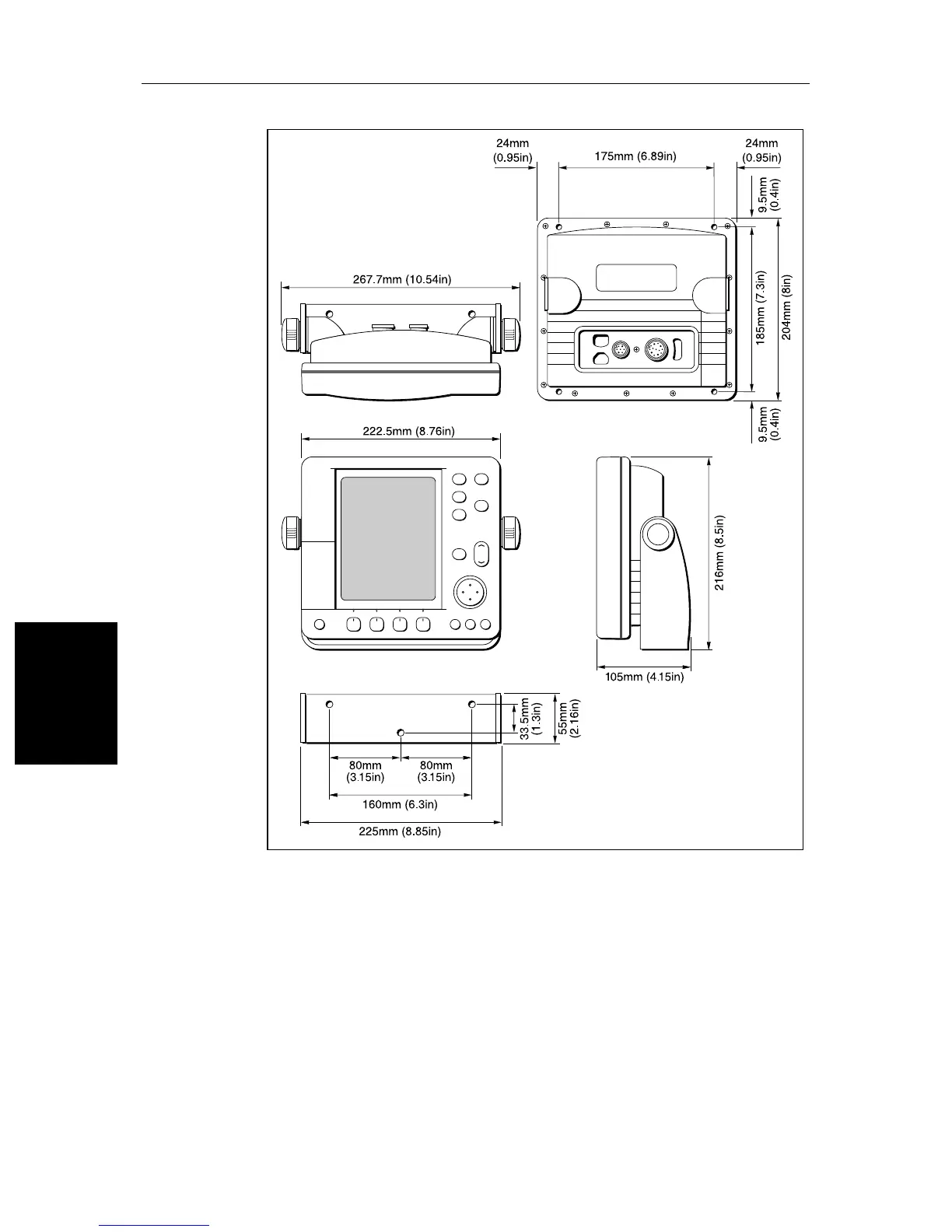

Figure 6-3: 7” Mono LCD Display Dimensions
DISPLAY
GAIN
VRM/EBL
MULTI
MARKS
ALARMS
RANGE
ENTER CLEAR MENU
POWER
Weight: 1.2 Kg (2.6 lbs)
Compass Safe Distance: 1 m (39 in)
D3221_3
