Chapter 1: Overview 3

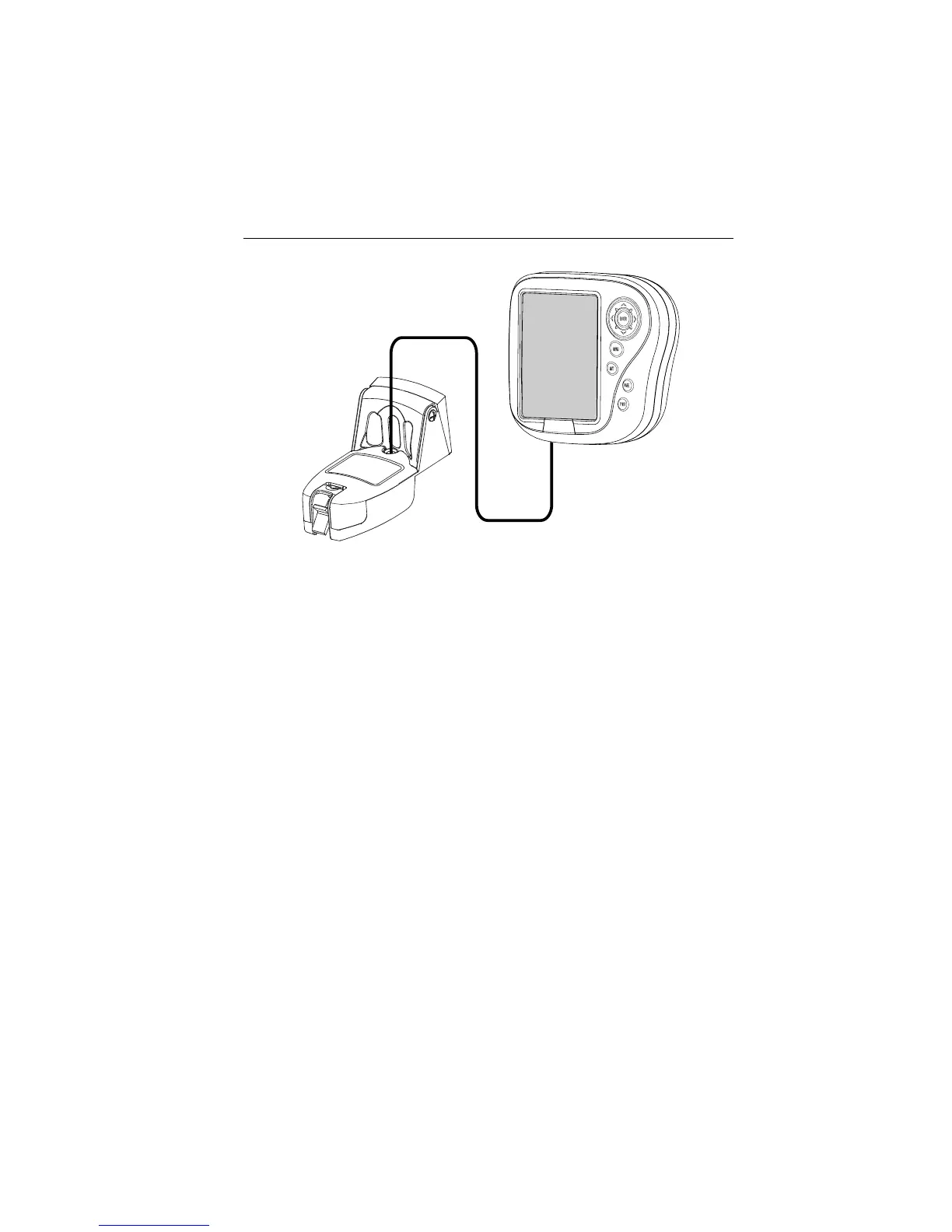

Figure 1-3: Basic Fishfinder System using the DS400/500
Transducer
The DS400/500 requires a transducer for measuring water depth, water
temperature, distance traveled, and speed. A transducer is included with
some fishfinder models. It is important to position your transducer correctly.
Details on your transducer, including location and installation instructions,
are included in the transducer box.
Note: Instructions for mounting the E66062 (P58) Multisensor Transom
Mount Transducer is not included with the transducer. Installation instruc-
tions for this transducer can be found on page 16.
Transducer
Fishfinder
D6451-1
