Chapter 2: Installation 25

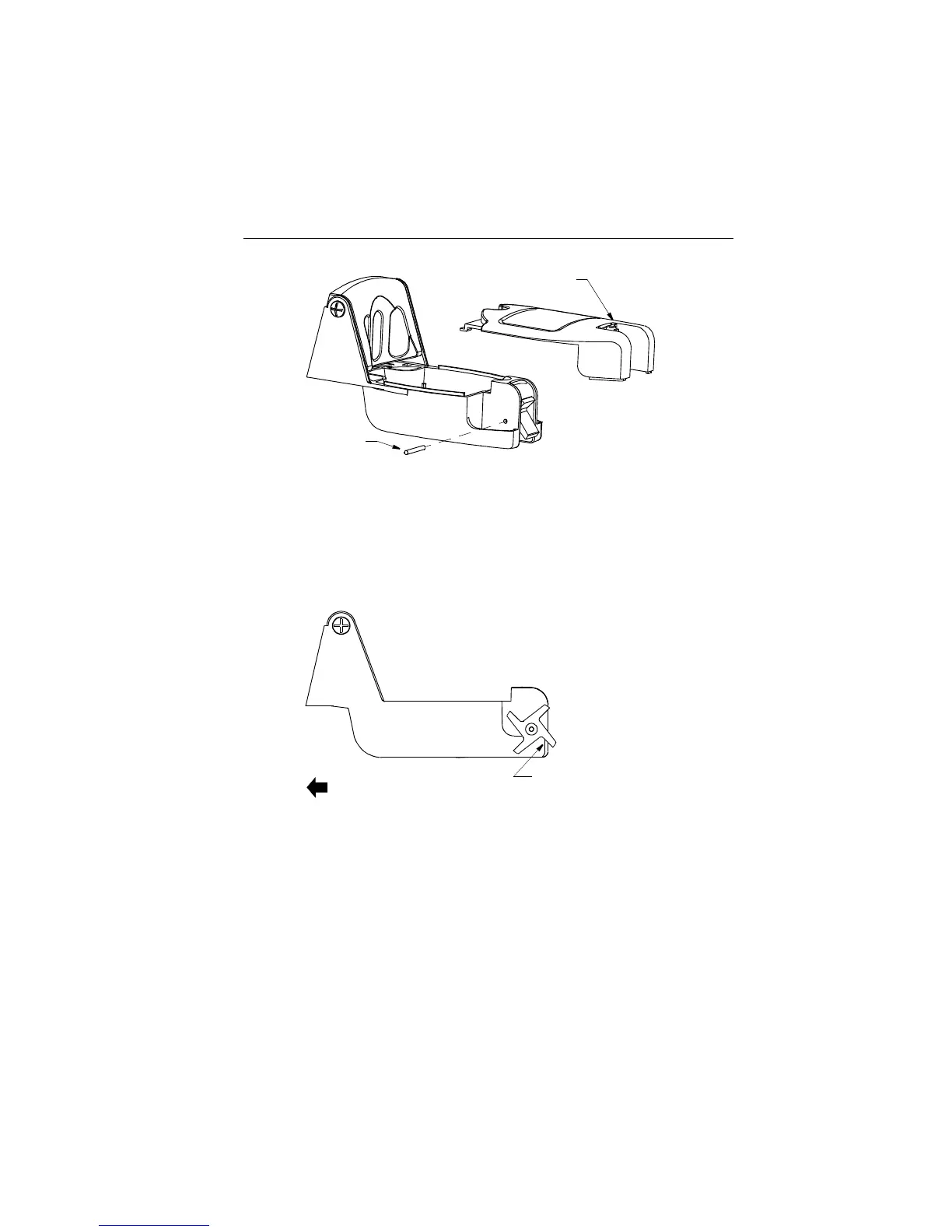

Figure 2-12: Servicing the Paddlewheel
Note: The paddlewheel must be oriented correctly to measure boat speed.
After cleaning, orient the short side of the paddlewheel blade as shown in
Figure 2-13 . Slide the shaft through the holes in the housing and
paddlewheel (see Figure 2-12 ). Be sure the ends of the shaft are flush with
the housing. Replace the cover.
Figure 2-13: Orienting the Paddlewheel
shaft
cover
depress
latch
D6769-1
short side of
paddlewheel
blade faces
forward (bow)
BOW
D6769-1
