Raymarine Rotary Drive User Manual

4 Rotary Drive - Installation Guide
Specifications

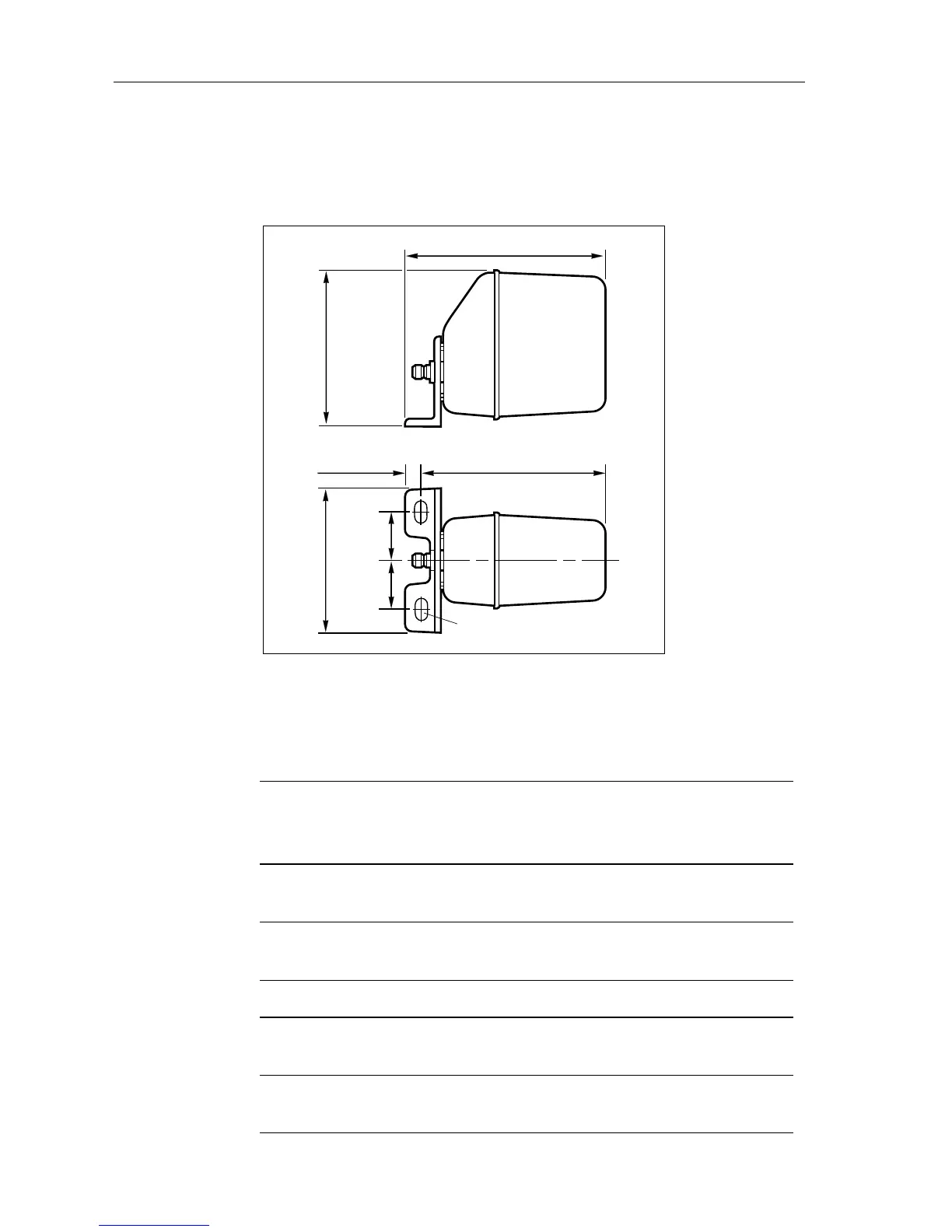

Drive dimensions
Figure 2: Drive dimensions
Drive specifications
Table 1: Drive specifications
Performance
(at nominal voltage)
Type 1 (T1)
M81135 (12 V)
Type 2 (T2)
M81136 (12 V)
M81137 (24 V)
Maximum boat
displacement
10,000 kg
(22,000 lb)
20,000 kg
(44,000 lb)
Peak output torque 20 Nm
(180 lb.in)
34 Nm
(300 lb.in)
Maximum shaft speed 33 rpm 33 rpm
Recommended hardover
to hardover time (no load)
10 sec 10 sec
Power consumption
(typical average)
24-48 W 60-84 W (12 V)
72-120 W (24 V)
274 mm (10.8 in)
195 mm
(7.7 in)
256 mm (10 in)20 mm (0.8 in)
184 mm
(7.2 in)
60 mm
(2.4 in)
60 mm
(2.4 in)
D5087-1
2 slots to accept
12 mm (0.5 in) bolts
