REMOVING THE CIRCUIT BOARD
Make sure the power and gas are off.

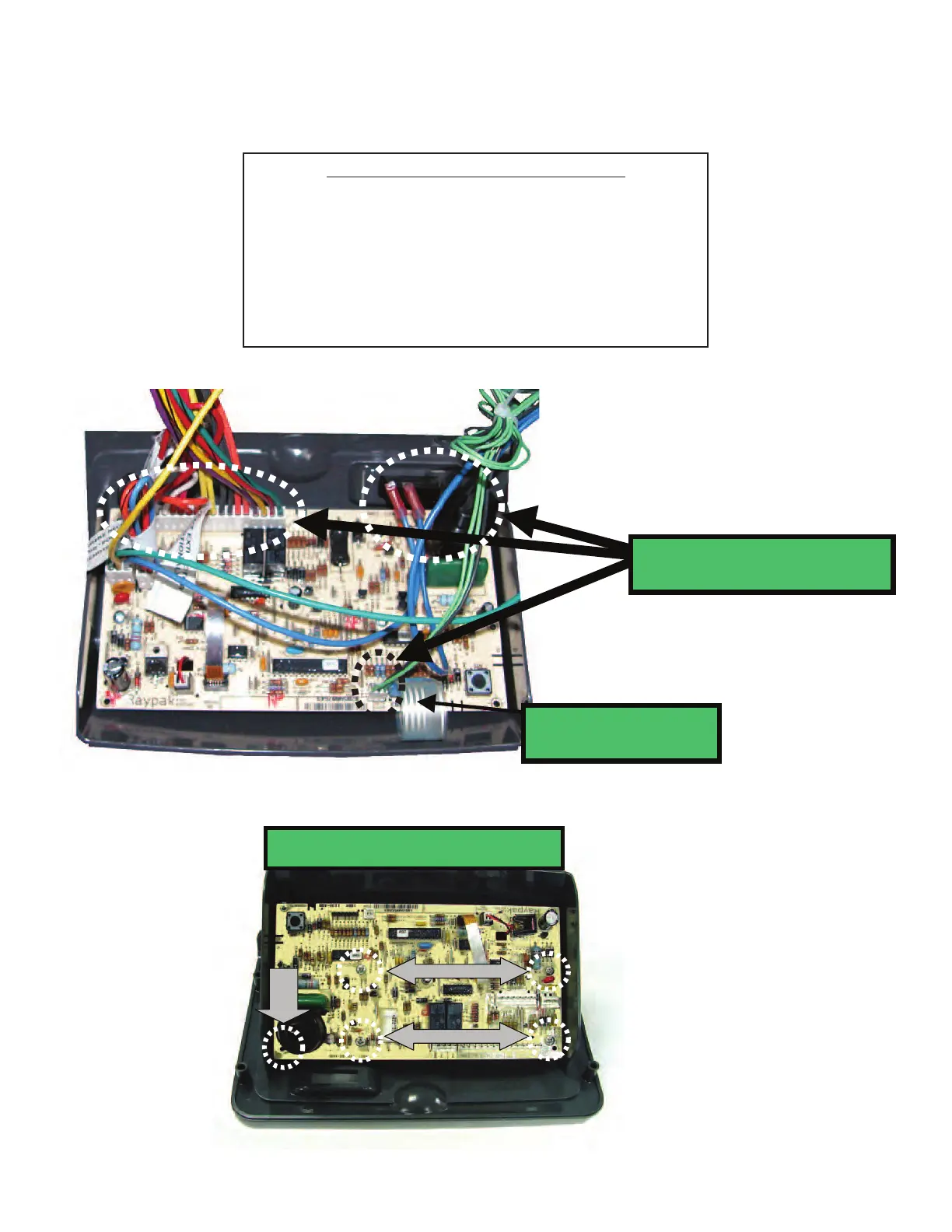

1. Unplug all connectors from old circuit board. See
Fig. 5.
2. Unplug keypad ribbon from old circuit board.
3. Remove screws as shown in Fig. 6.
4. Remove old circuit board.
UNPLUG
ALL CONNECTORS
REMOVE KEYBOARD
RIBBON
REMOVE MOUNTING SCREWS
Fig. 5
Fig. 6
