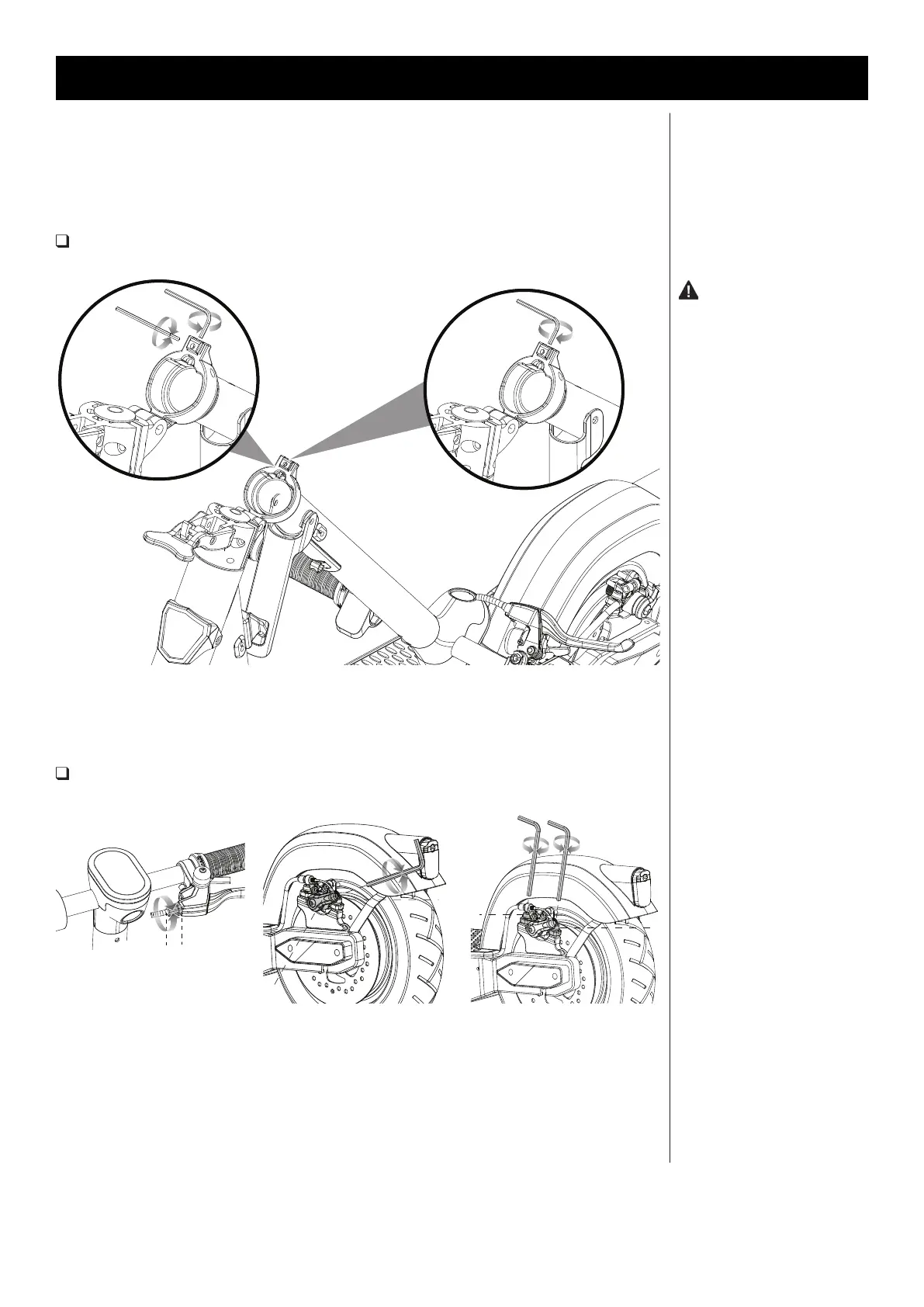

Adjusting the Folding Mechanism
Required Tool: 2.5 mm Allen Wrench (included)
Adjusting the Brake
Required Tool: 5 mm Allen Wrench (not included)
1 Fold scooter according to folding scooter
instructions on page 9. Using a 2.5 mm Allen wrench,
loosen screw A. Using a 2.5 mm Allen wrench adjust
screw B.
1 Adjusting brake at the brake
lever. The best braking distance is
when the distance between the
brake lever and the grip is 15 mm
to 20 mm. Fine tune the brake lever
by adjusting screw (A) and tighten
nut (B).
2 If the brake has too much slack,
loosen the screw (C) using a 5 mm
Allen wrench, pull the brake caliper
actuator arm (D) while holding the
brake cable to the desired tension.
Secure the screw (C), test the brake
and readjust if needed.
3 If the brake pads are rubbing
against the disc brake, loosen
screws (E & F) using a 5 mm Allen
wrench, and line up the brake
caliper until the brake pads stop
rubbing on the disc brake and
retighten the screws (E & F).
2 Tighten screw A and unfold to complete adjustment.
Turn power switch “OFF” before beginning repair or maintenance:
• Read the instructions
• Remove charger plug
• Turn the power off
• Secure the product under repair
• Exercise caution around
exposed parts
• Repair and maintenance should
be performed by an adult only
A
B
A
WARNING: Keep fingers
clear of the pivoting mechanism
when folding or unfolding the
scooter. Make sure others are
standing clear.
A B
D
C
E
F
