6 Chapter 1
Graphics contained within this publication are for representation only.
Connections & Setup

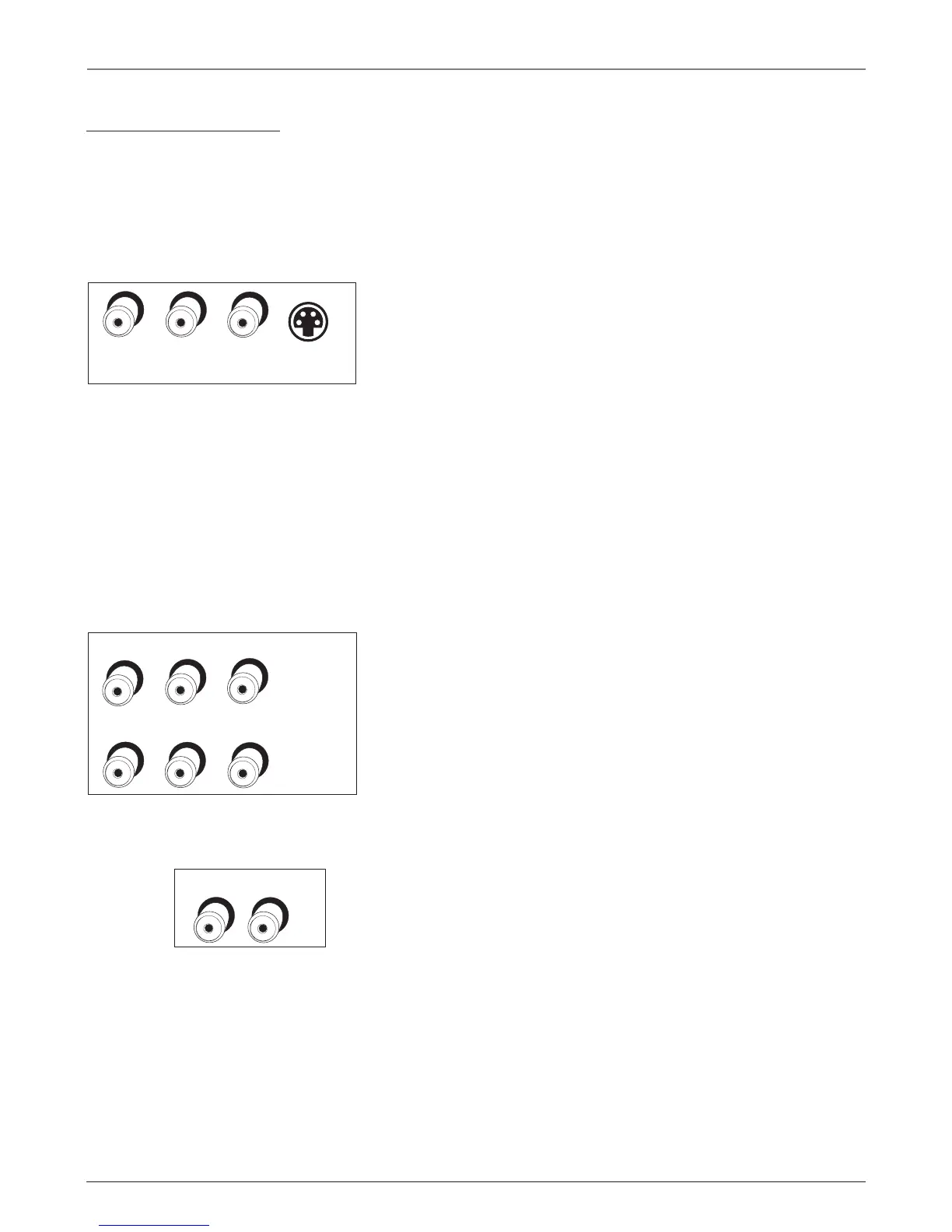

Explanation of Jacks
This section describes the jacks you can use to make connections. There are several
ways to connect components to your TV.
VPORT Go to the previous page for VPORT explanation.
TV ANT Lets you connect a coaxial cable to receive the signal from the antenna,
cable, cable box, or if using the example on page 4, a VCR.
VIDEO 1
VIDEO, AUDIO R and L/MONO Lets you connect a
component such as a VCR, DVD player, or laserdisc player.
• R (RIGHT) AUDIO Provides right audio connection. The
right audio connector is usually red.
• L/MONO AUDIO Provides left audio connection. The
left audio connector is usually white.
• VIDEO Provides composite video connection. The video
connector is usually yellow.
• S-VIDEO IN Provides better picture quality than the
video jacks because the color part of the signal is
separated from the black and white part of the picture.
When using S-VIDEO IN, make sure to connect left and
right audio cables to the L/MONO and R AUDIO Input
jacks.
VIDEO 2
VIDEO, AUDIO R and L/MONO and Y, Pb, Pr Lets you
connect a component video source, such as a DVD player.
• Y, Pb, Pr Provides optimum picture quality because the
video is separated into three signals. Use three video-
grade cables for the connection. When using VIDEO 2
Y, Pb, Pr, make sure to connect left and right audio cables
to the VIDEO 2 AUDIO Input jacks.
• R (RIGHT) AUDIO, L/MONO and VIDEO Their
description is the same as VIDEO 1.
AUDIO OUTPUT Lets you connect an amplifier or audio
receiver for improved sound quality.
R
L/MONO
AUDIO
VIDEO
S-VIDEO IN
VIDEO 1
Pr
Pb
Y
R
AUDIO
VIDEO
L/MONO
VIDEO 2
R
L
AUDIO
OUTPUT
To Next Page
