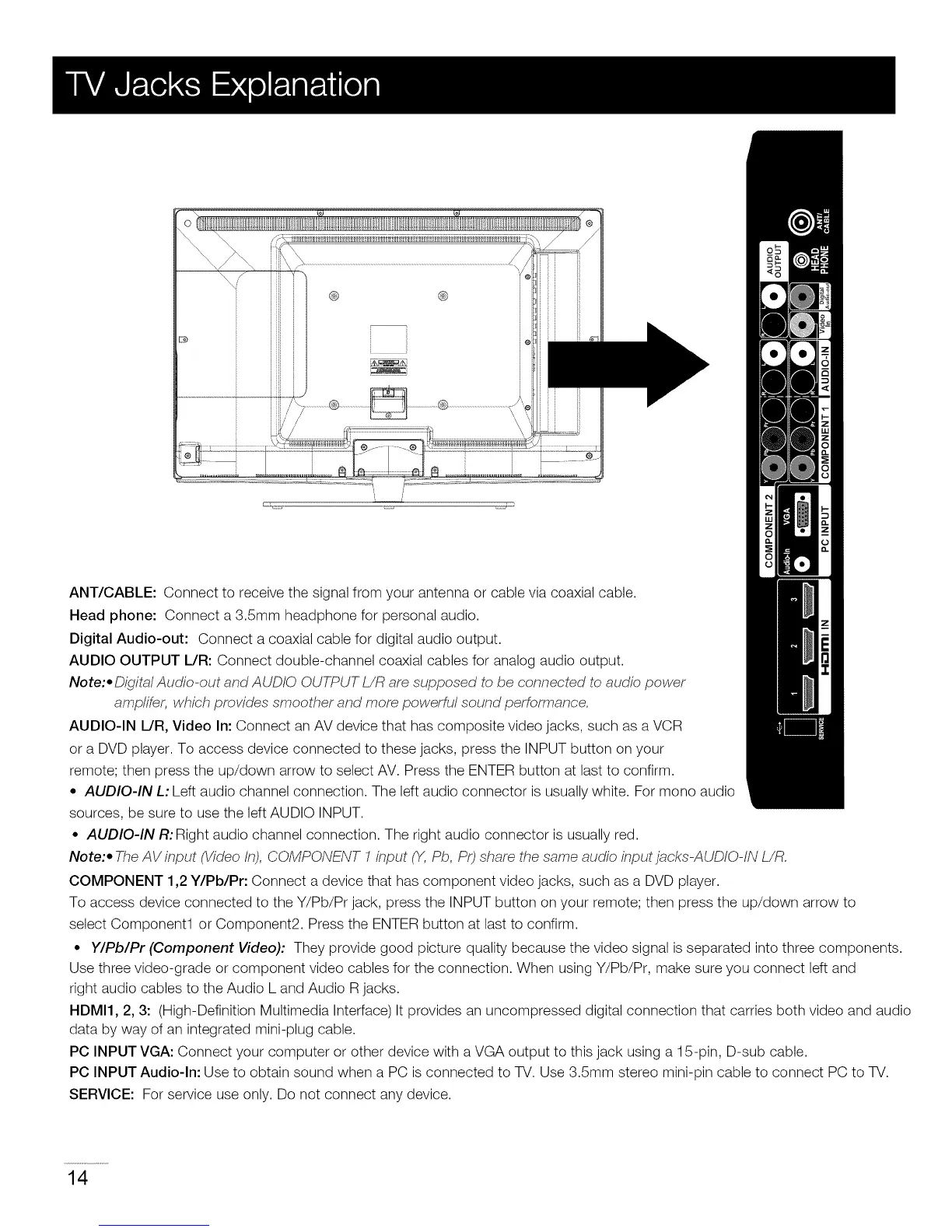

ANT/CABLE: Connect to receive the signal from your antenna or cable via coaxial cable.
Head phone: Connect a 3.Smm headphone for personal audio.
Digital Audio-out: Connect a coaxial cable for digital audio output.
AUDIO OUTPUT L/R: Connect double-channel coaxial cables for analog audio output.
Note:• Digital Audio-out and AUD/O OUTPUT L/R are supposed to be connected to audio power
amplifer, which proddes smoother and more powerful sound performance.
AUDIO-IN L/R, Video In: Connect an AV device that has composite video jacks, such as a VCR
or a DVD player. To access device connected to these jacks, press the INPUT button on your
remote; then press the up/down arrow to select AV. Press the ENTER button at last to confirm.
• AUDIO-IN L: Left audio channel connection. The left audio connector is usually white. For mono audio
sources, be sure to use the left AUDIO INPUT.
• AUDIO-IN R: Right audio channel connection. The right audio connector is usually red.
Note:• The AV input (Video In), COMPONENT I _nput _, Pb, Pr) share the same audio _nputjacks-AUD/O-tN L/R.
COMPONENT 1,2 Y/Pb/Pr: Connect a device that has component video jacks, such as a DVD player.
To access device connected to the Y/Pb/Pr jack, press the INPUT button on your remote; then press the up/down arrow to
select Component1 or Component2. Press the ENTER button at last to confirm.
• Y/Pb/Pr (Component Video): They provide good picture quality because the video signal is separated into three components.
Use three video-grade or component video cables for the connection. When using Y/Pb/Pr, make sure you connect left and
right audio cables to the Audio L and Audio R jacks.
HDMI1, 2, 3: (High-Definition Multimedia Interface) It provides an uncompressed digital connection that carries both video and audio
data by way of an integrated mini-plug cable.
PC INPUT VGA: Connect your computer or other device with a VGA output to this jack using a 15-pin, D-sub cable.
PC INPUT Audio-In: Use to obtain sound when a PC is connected to TV. Use 3.5mm stereo mini-pin cable to connect PC to TV.
SERVICE: For service use only. Do not connect any device.
