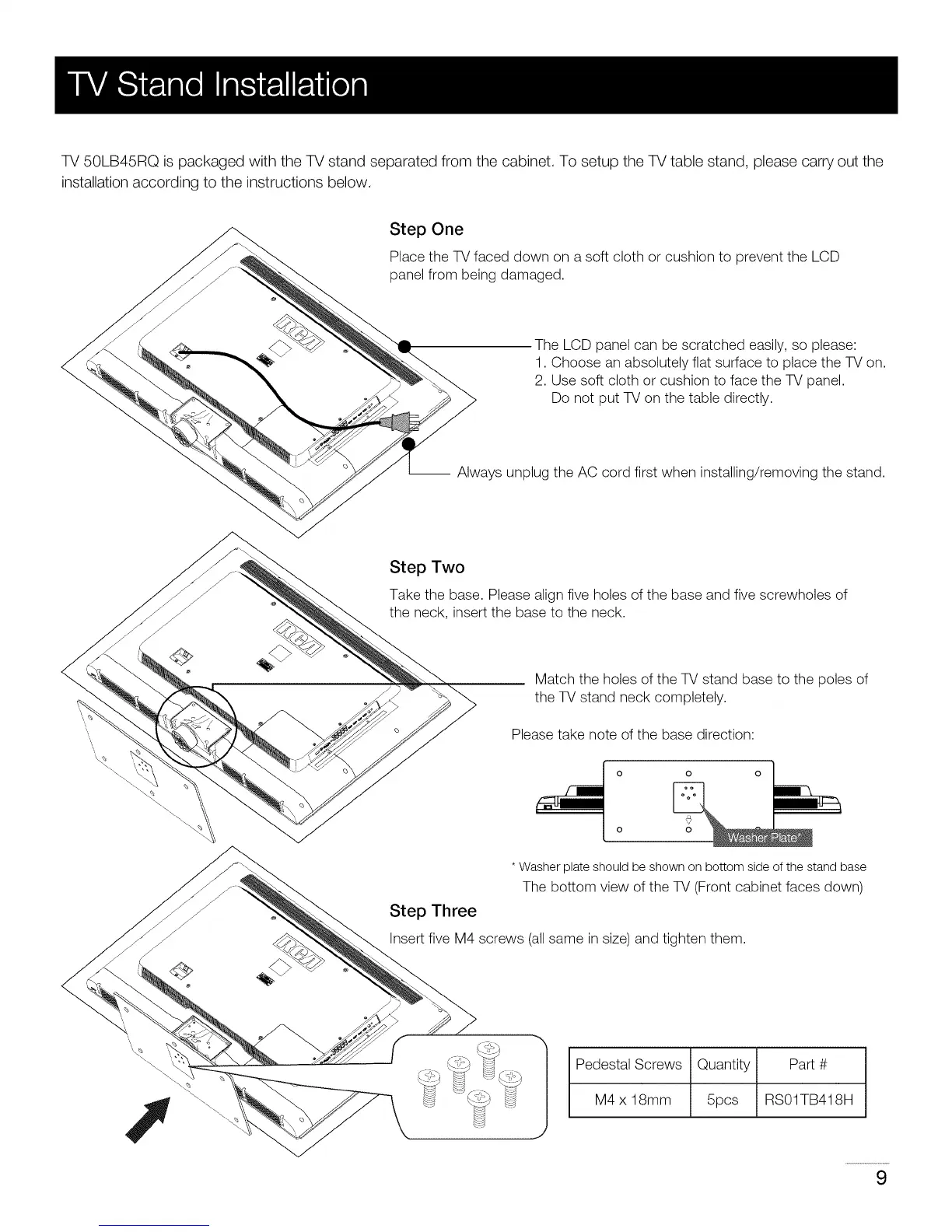

TV 50LB45RQ is packaged with the TV stand separated from the cabinet. To setup the TV table stand, please carry out the
installation according to the instructions below.
Step One
Place the TV faced down on a soft cloth or cushion to prevent the LCD
panel from being damaged.
The LCD panel can be scratched easily, so please:
1. Choose an absolutely flat surface to place the TV on.
2. Use soft cloth or cushion to face the TV panel.
Do not put TV on the table directly.
-- Always unplug the AC cord first when installing/removing the stand.
Step Two
Take the base. Pleasealign five holes of the base and five screwholes of
the neck, insert the base to the neck.
Match the holes of the TV stand base to the poles of
the TV stand neck completely.
Please take note of the base direction:
0 0 0
o
* Washer plateshould be shown on bottom side of the stand base
The bottom view of the TV (Front cabinet faces down)
Step Three
Insert five M4 screws (all same in size) and tighten them.
Pedestal Screws Quantity Part #
M4 x 18mm 5pcs RS01TB418H
9
