Connections & Setup
Chapter 1 9
Graphics contained within this publication are for representation only.
ANTENNA/
CABLE
S-VIDEO
AUDIO/VIDEO OUTPUT
FIXED AUDIO
VARIABLE
AUDIO
EXTERNAL SPEAKERS
EXT/INT
LEFT
RIGHT
+
DVI-HDTV
TV
L/ MONO
R
Y
P
B P R
CMP1
CMP2
L/ MONO
R
Y
P
B P R
L/ MONO
R
V
VID1
S-VIDEO
L/ MONO
R
V
VID
2
+
L/ MONO
R
L
V
R
L
SUBWOOFER
COMPONENT INPUTS
COMPOSITE INPUTS
IN
OUT
A/V RECEIVER
VCR
IN
TV
IN
OUT
TAPE
IN
CD
L
R
R

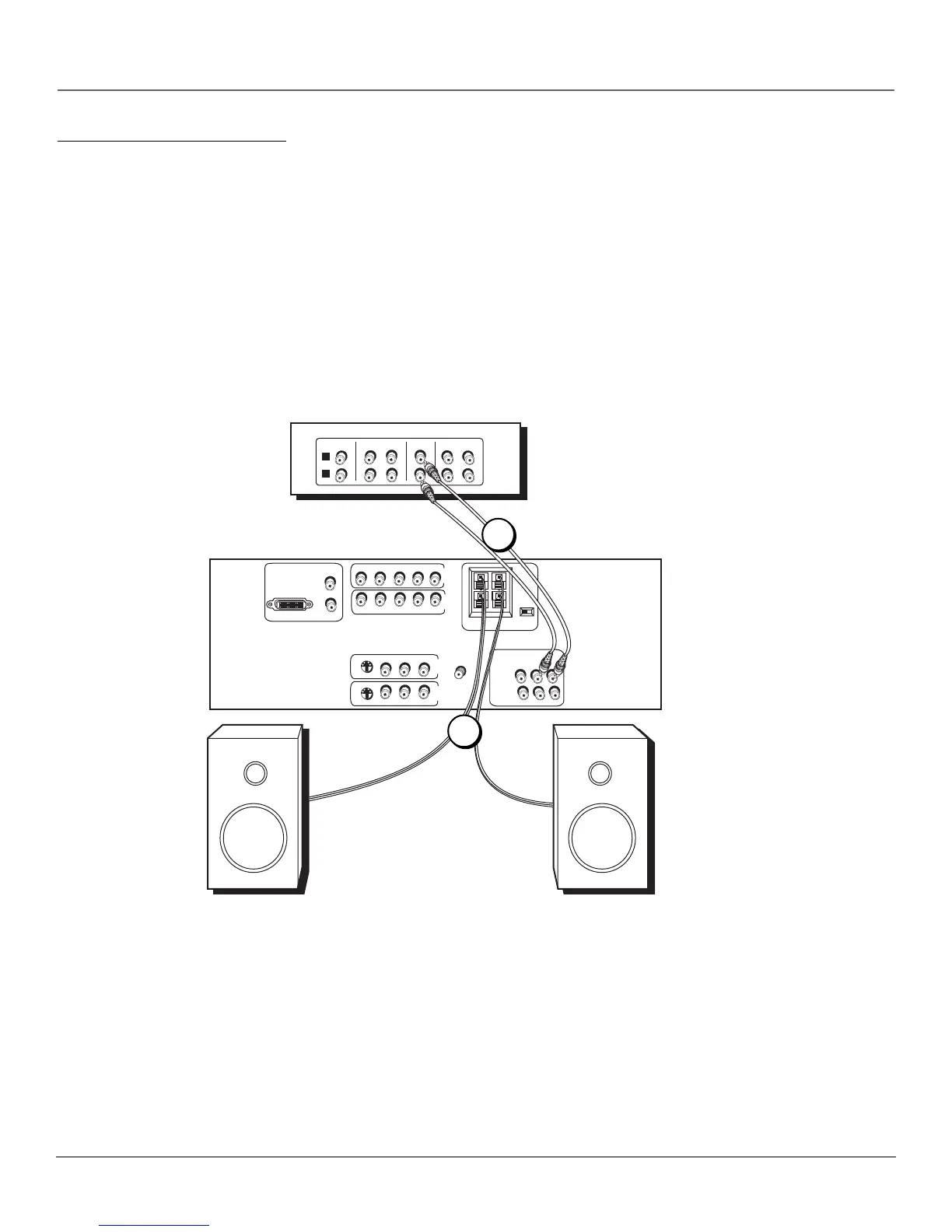

TV+ A/V Receiver or Speakers
These are two different ways your TV uses a component to hear audio.
1. Connect audio cables to either the FIXED or VARIABLE AUDIO L and R OUTPUT jacks and to the Audio Inputs on
the A/V receiver.
• FIXED provides fixed-level audio output from the TV. This audio output is ideal for connecting to an A/
V receiver that has its own volume control.
• VARIABLE provides variable-level audio output. Volume levels can be controlled by the volume controls
on the TV and TV remote control.
-OR-
2. Use speaker wire to connect the TV to external speakers.
• The EXT/INT switch beside the jacks let you turn the TV’s internal speakers on or off. If you connect
external speakers, slide the switch to EXT so the audio is sent to the external speakers only. Choosing
INT sends the audio to the TV’s speakers only.
Note: The external speaker rating is 8 ohms with 15 watts power handling capabilities.
1
2
Connect to either FIXED or
VARIABLE Output
