Connections & Setup
Chapter 1 7
Graphics contained within this publication are for representation only.
TV + Satellite Receiver + VCR

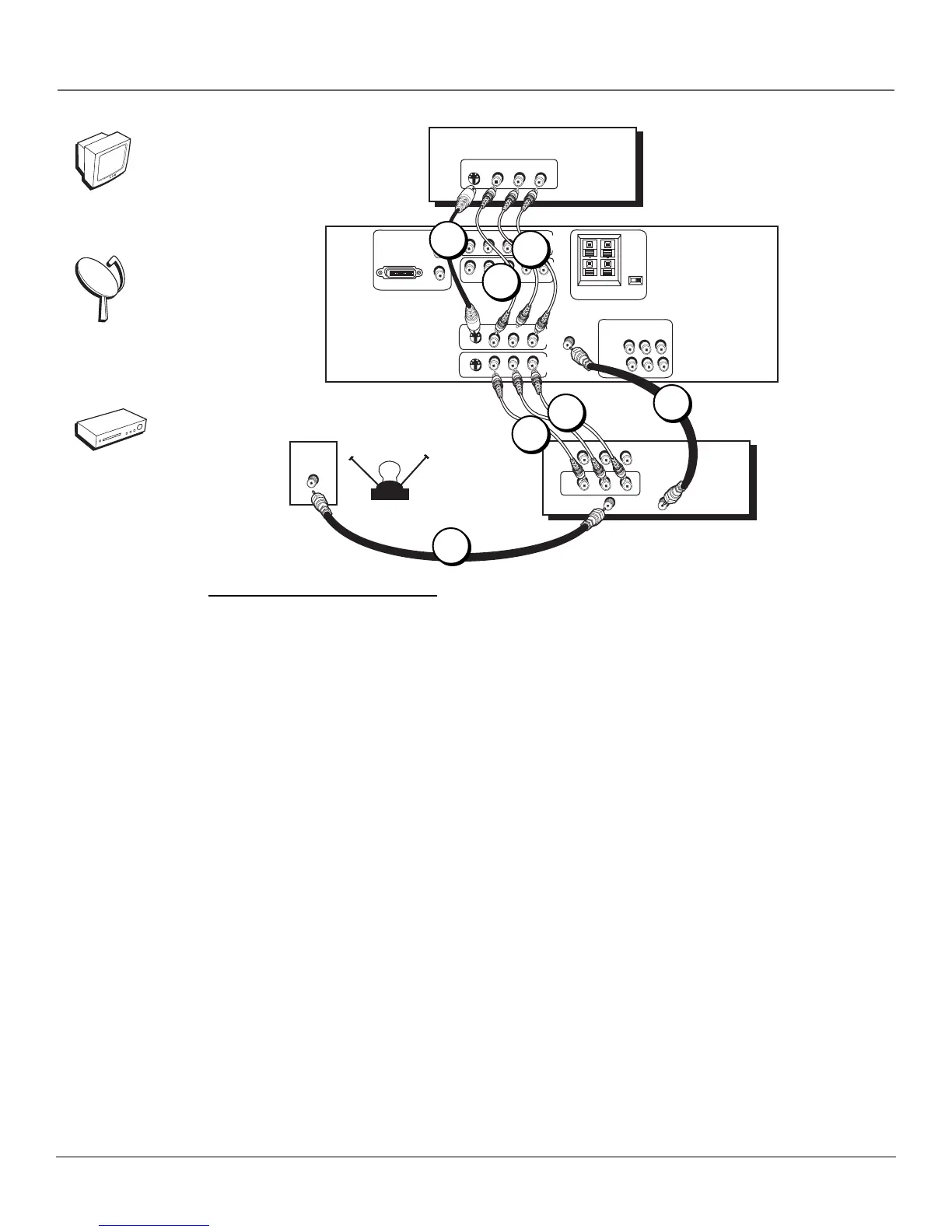

1. Connect your VCR to your TV.
A. Connect a coaxial cable to the VCR’s antenna output and to the ANTENNA/CABLE Input jack on the TV.
B. Connect the audio (white and red) cables to the VID2 L/MONO and R Audio jacks on the back of the TV and to the
Audio Output jacks on the VCR.
C. Connect the video cable to the VID2 V (Video) jack on the back of the TV and to the Video Output jack on the VCR.
2. Make sure cable or antenna is connected to your VCR.
Connect the coaxial cable from your cable outlet or antenna to the antenna input on the VCR.
3. Connect your Satellite Receiver to your TV.
A. Connect the audio (white and red) cables to the VID1 L/MONO and R Audio jacks on the back of the TV and to the
Audio Output jacks on the Satellite Receiver.
B. Connect the video cable to the VID1 V (Video) jack on the back of the TV and to the Video Output jack on the
Satellite Receiver.
C. If your Satellite Receiver has an S-Video jack, connect an S-Video cable (instead of the video cable in step B) to
the S-VIDEO jack on the TV and to the S-VIDEO jack on the satellite receiver.
Go to page 12
