RCA DRC69702 User Manual

5
Power Supply

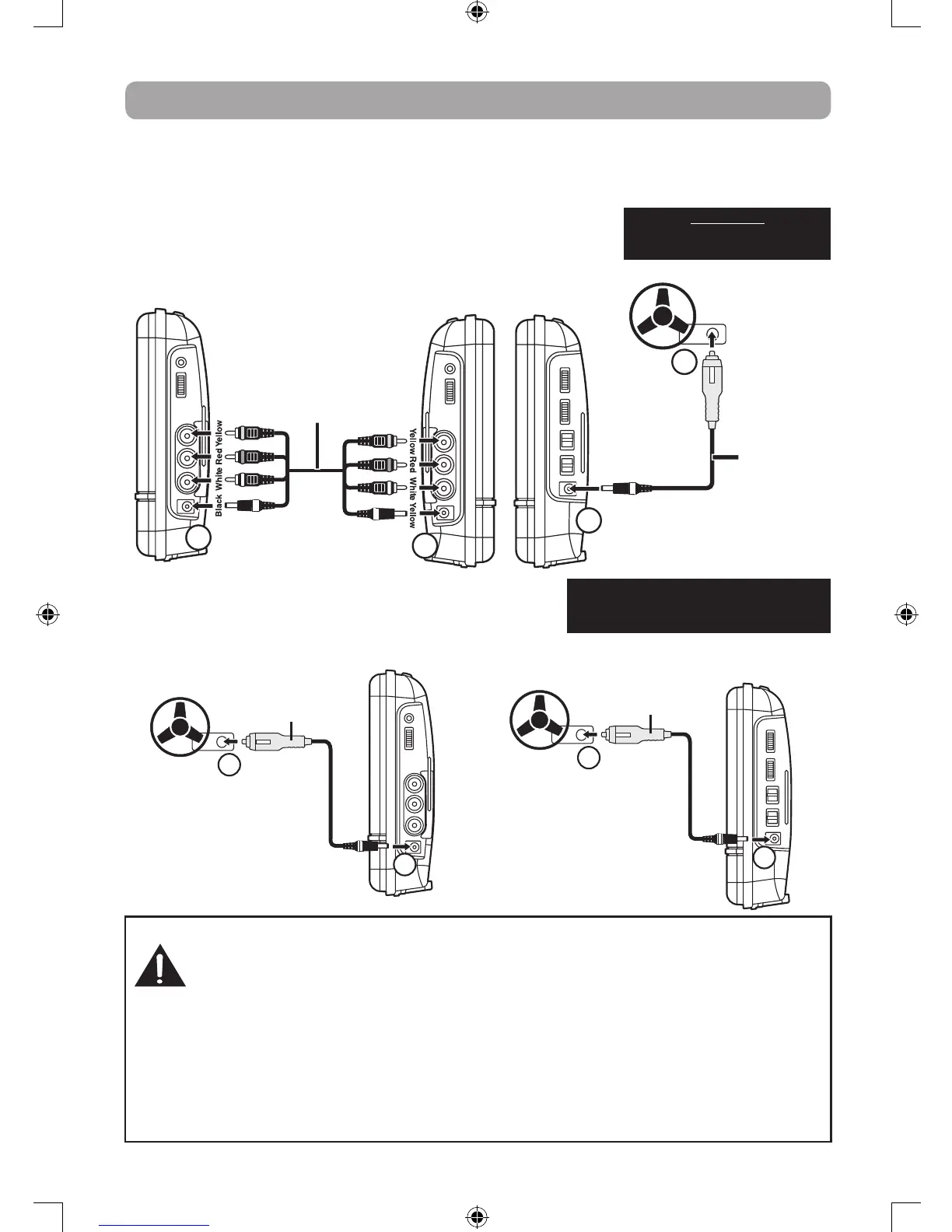

Using the DVD Player and the Monitor Together
Using the DVD Player or the Monitor Separately
Monitor -
left side right side
AV-DC cable
(included)
To A/V OUT &
DC IN 9V-12V
jacks
To A/V IN &
DC OUT 9V-12V
jacks
1
2
Car Power
Adapter
To DC IN 9V-12V
jack
4
3
DVD player
right side
To 12V
power outlet
A. Using the Car Power Adapter
The included 12V car power adapter is designed for use with vehicles that have a 12V, negative ground
electrical system.
Cautions:
•Usethisunitonlywiththeincluded12Vcarpoweradapter.Usewithothercaradapterscould
damage the unit, or even your vehicle.
•Theincluded12Vcarpoweradapterisforusewiththisunitonly.Donotuseitwithanyother
equipment.
• Intheinterestoftrafcsafety,driversshouldnotoperatetheunitorviewvideoswhiledriving.
• Whentheinsideofthe12Vpoweroutletisdirtywithashesordust,theplugsectionmaybecomehot
due to poor contact. Be sure to clean the 12V power outlet before use.
• Afteruse,disconnectthe12Vcarpoweradapterfromboththeunitand12Vpoweroutlet.
• Iftheunitisnotproperlyattachedtoavehicle,itmaybecomeairborneintheeventofanaccidentand
cause damage, injury, or death.
• Checkyourlocaltrafclawsforrulesgoverningtheuseofvideodevicesinvehicles.
IMPORTANT
This car adapter is for use with
12 volt batteries only.
WARNING:
Disconnect this car power adapter when
not in use. Not for use in 24V vehicles.
DVD player
right side
To 12V power outlet
To DC IN 9V-12V
jack
1
2
Car Power Adapter
Monitor
right side
To 12V power outlet
To DC IN 9V-12V
jack
1
2
Car Power Adapter
RCA DRC69702 IB.indd 5 11/25/2008 2:28:55 PM
