RCA L32WD26D User Manual

10 Chapter 1
Connections & Setup
ANTENNA/
CABLE
S
-
V
I
D
EO
AUDIO/VIDEO OUTPUT
FIXED AUDIO
VARIABLE
AUDIO
EXTERNAL SPEAKERS
EXT/INT
LEFT
RIGHT
+
TV/DVD
L/ MONO
R
Y
P
B P R
CMP1
CMP2
L/ MONO
R
Y
P
B P R
L/ MONO
R
V
V
I
D
1
S
-
V
I
D
EO
L/ MONO
R
V
V
I
D
2
+
R
L
V
R
L
SUBWOOFER
COMPONENT INPUTS
COMPOSITE INPUTS
IN
OUT
A/V RECEIVER
VCR
IN
TV
IN
OUT
TAP E
IN
CD
L
R
DVI-HDTV
L/ MONO
R
DIGITAL
AUDIO
OUTPUT

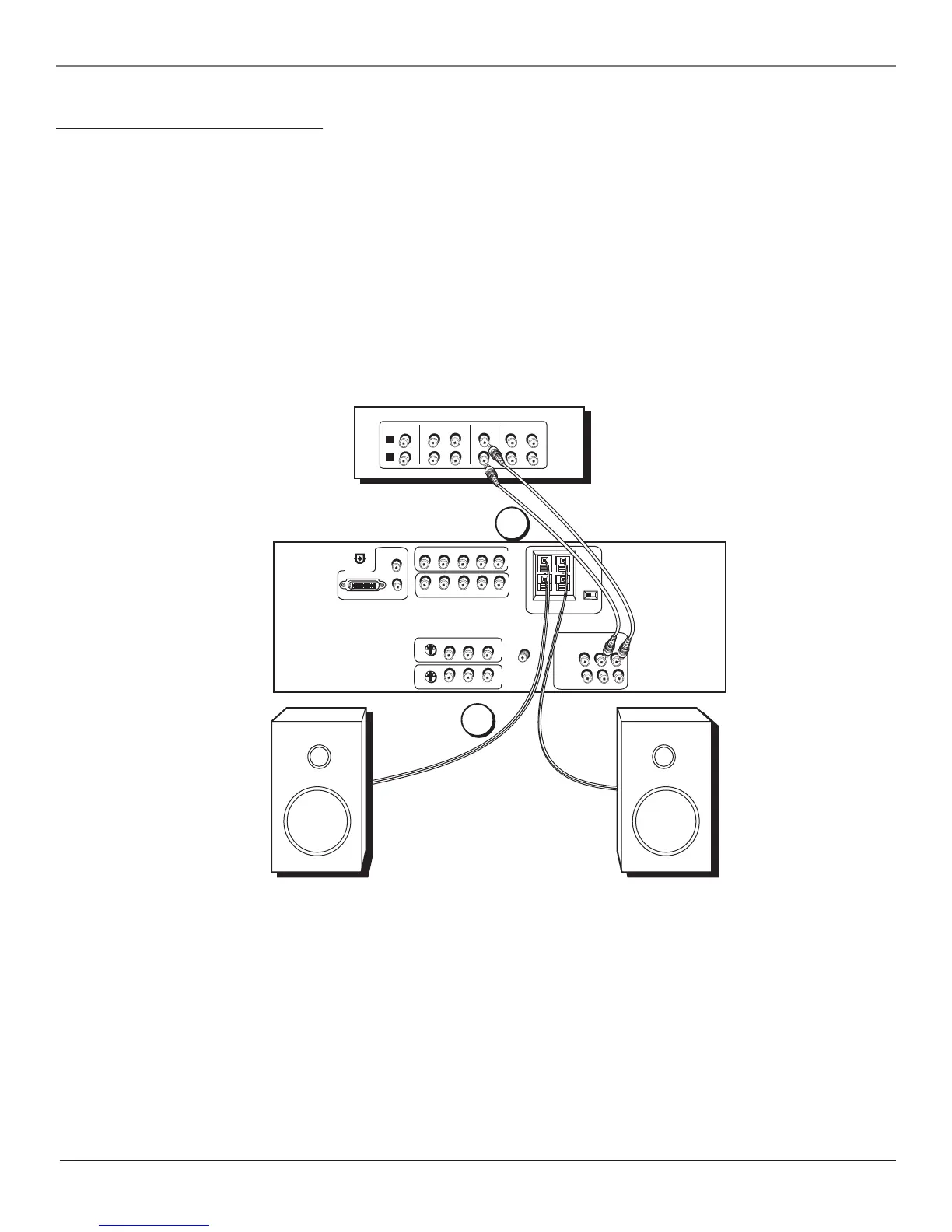

TV/DVD+ A/V Receiver or Speakers
These are two different ways your TV/DVD uses a component to hear audio.
1. Connect audio cables to either the FIXED or VARIABLE AUDIO L and R OUTPUT jacks and to the Audio Inputs on the A/V receiver.
• FIXED provides fixed-level audio output from the TV/DVD. This audio output is ideal for connecting to an A/V receiver that has its own
volume control.
• VARIABLE provides variable-level audio output. Volume levels can be controlled by the volume controls on the TV/DVD and TV remote
control.
-OR-
2. Use speaker wire to connect the TV/DVD to external speakers.
• The EXT/INT switch beside the jacks let you turn the TV/DVD’s internal speakers on or off. If you connect external speakers, slide the
switch to EXT so the audio is sent to the external speakers only. Choosing INT sends the audio to the TV/DVD’s speakers only.
Note: The external speaker rating is 8 ohms with 15 watts power handling capabilities.
1
2
Connect to either FIXED or
VARIABLE Output
