Connecting a Component with Composite Video (Good)
To connect a component with a video output jack, such as a DVD player, follow these steps:
Example: DVD Player
1. Connect the yellow video cable to the (VID 2) VIDEO jack on the side of the TV and to the video output
jack on the DVD player.
2. Connect the red and white audio cables to the (VID 2) right and left audio jacks on the side of the TV
and to the audio output jacks on the DVD player.

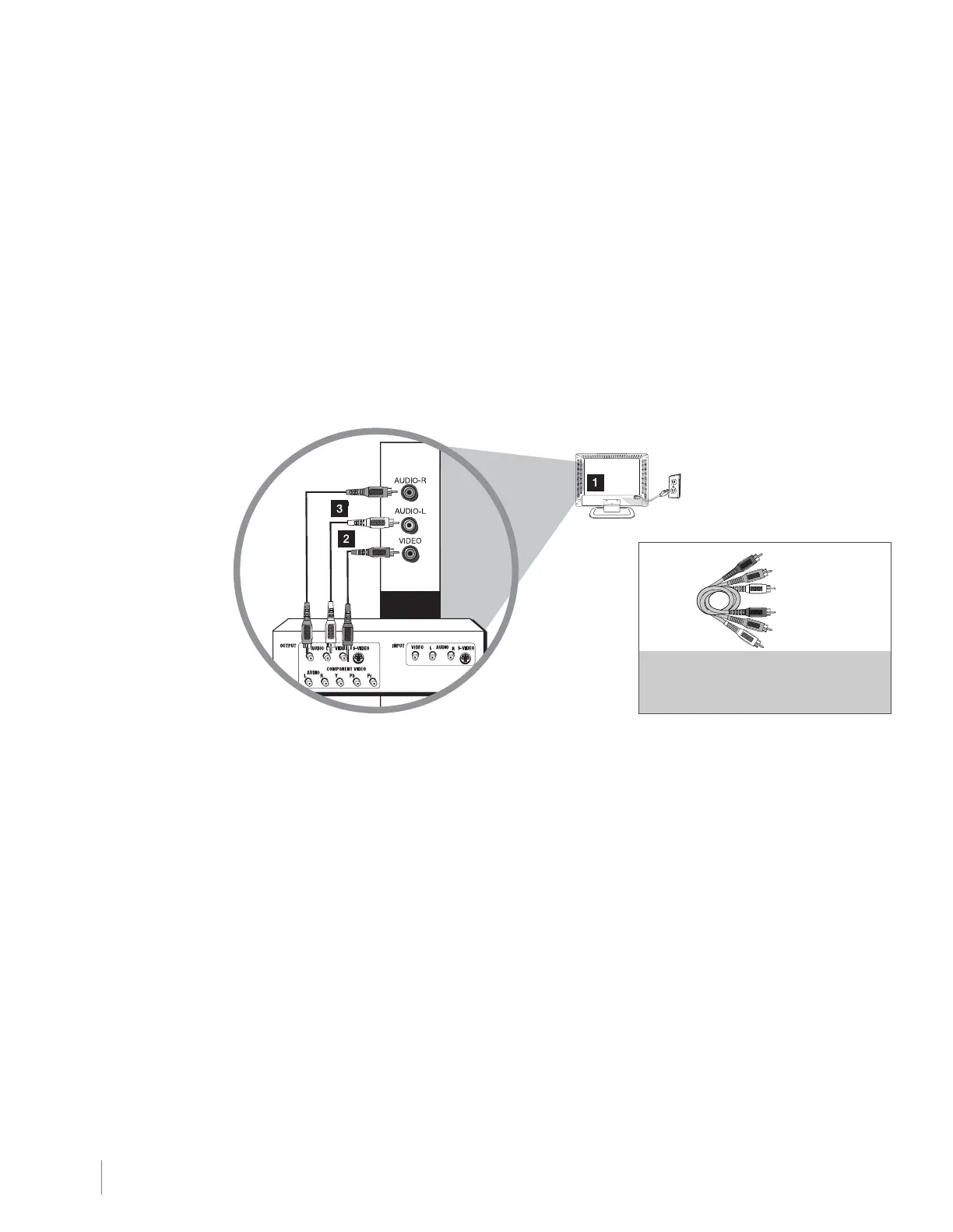

Composite Video Connection
This is an example of a connection using the composite video jack.
Connecting a Component with Component Video (Better)
To connect a component that has Y Pb Pr jacks, such as a DVD player, follow these steps:
Example: DVD Player
1. Connect three video cables or special Y Pb Pr cables to the COMPONENT INPUT 2 (CMPT 2) Y Pb Pr
jacks on the back of the TV and to the Y Pb Pr outputs on the DVD player.
2. Connect your red and white audio cables to the COMPONENT INPUT 2 (CMPT 2) right and left AUDIO
jacks on the back of the TV and to the audio output jacks on the DVD player.
AUDIO/VIDEO
INPUT2 (VID2)
10 Chapter 1 Connections and Setup
COMPOSITE VIDEO CABLES ARE COLOR
CODED-YELLOW=VIDEO
RED=RIGHT AUDIO; WHITE=LEFT AUDIO
Red
Yellow
White
To Next Page
