Control Panel Button Function

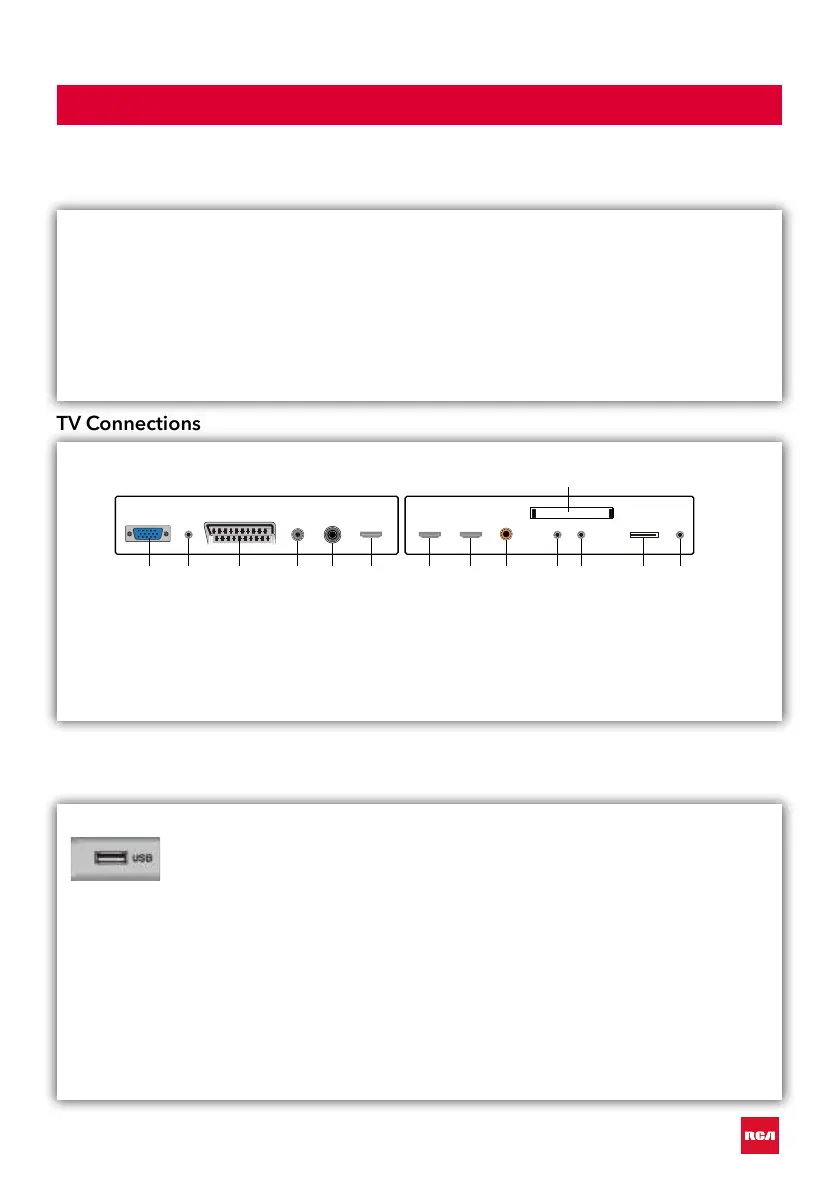

TV Connections
Optional Conguration as below:
Connect the USB to the USB jack on the set.
Main unit description
1. VGA
2. PC audio
3. Scart
4. DVB-S2
5. RF antenne
6. HDMI-1
7. HDMI-2
8. HDMI-3
9. Coaxial
10. Mini AV & AUDIO
11. Mini YPBPR
12. CI-slot
13. USB
14. Earphone
12
1 2
3
4 5 6 7 8
9
10 11 13 14
VOL+ : Volume up.
VOL- : Volume down
CH+: TV channel up.
CH- : TV channel down.
MENU : Press to select the main menu.
SOURCE : Select the input signal.
POWER : Switch on when in standby mode or to enter the standby mode.
NOTE
It is only 500 mA MAX of DC current output when you connect
with USB jack.
To ensure the mobile HD works well, you should use other
power supply for the mobile HD and don’t use the USB jack in
the same time.
It supports mobile HD by connecting with USB jack (must be
more than 2 Gb). The partitions of the mobile HD can’t be
more than 4 partitions. The max partition is 2 Tb. It supports
FAT/FAT32 les. The max FAT le is 4Gb and the max FAT32
le is 2Tb.
