For a brilliant and clear image, you'd better use the outdoor antenna or CATV cable.
Notes: Please turn off the TV power switch before connecting the outdoor antenna to the TV signal
interface. Keep the outdoor antenna away from any high-voltage wire, or there could be an electric
shock. Please disconnect the outdoor antenna in thunder days, in order to avoid a thunder strike.
Plug one end of the power cord into the input port of the machine's power supply and then insert the
other end into the socket of the electrical source (
Notes:
1. When connecting the power cord, be sure to turn off the machine and other equipment's power.
2. If a long time at leisure, please disconnect it from power supply
3. This TV must be connected to a three pin socket outlet for safety.
Connect one end of the VGA cable to the output interface on the computer (desk-top or lap-top
computer) and connect the other end to the VGA input interface on the TV back.
AC 100V-240V, 60/50Hz).

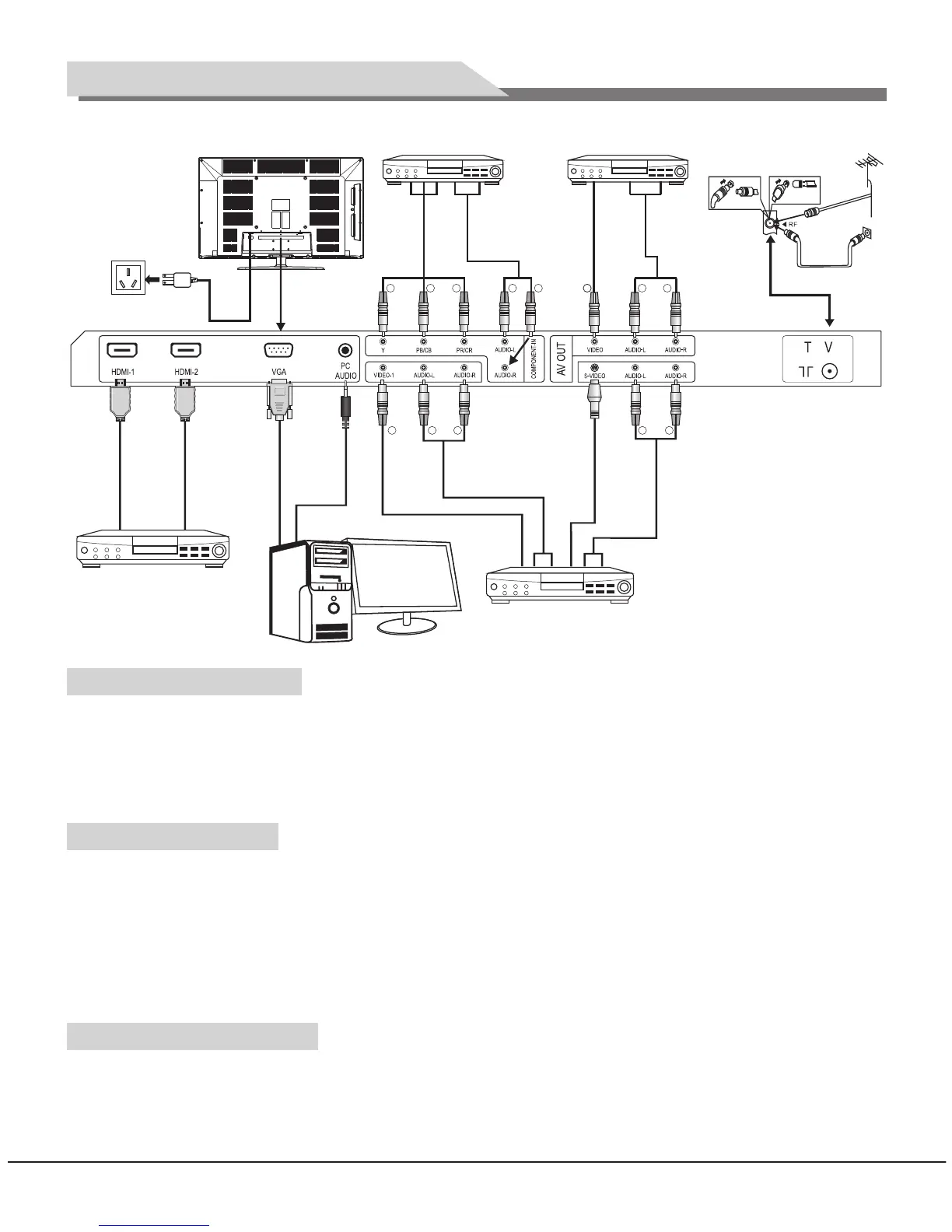

Antenna Connection
Power Connection
Computer Connection
AV Device with HDMI Interface
AV Device
(like DVD, VCR, Game Console...)
AV machine
CVBS, DVD Player or other
machine with YPbPr/YCbCr.
G
B
R
W
R
W
R
Y
Y
W
R
W
R
To power socket
(AC 100V-240V, 60/50Hz)
G Green (Y)
B Blue (Pb/Cb)
W White(AUDIO-L )
R Red (AUDIO-R, Pr/Cr)
Y Yellow (VIDEO)
