40
connections
Connecting Your VCR
Refer to these pages to help you connect your VCR.

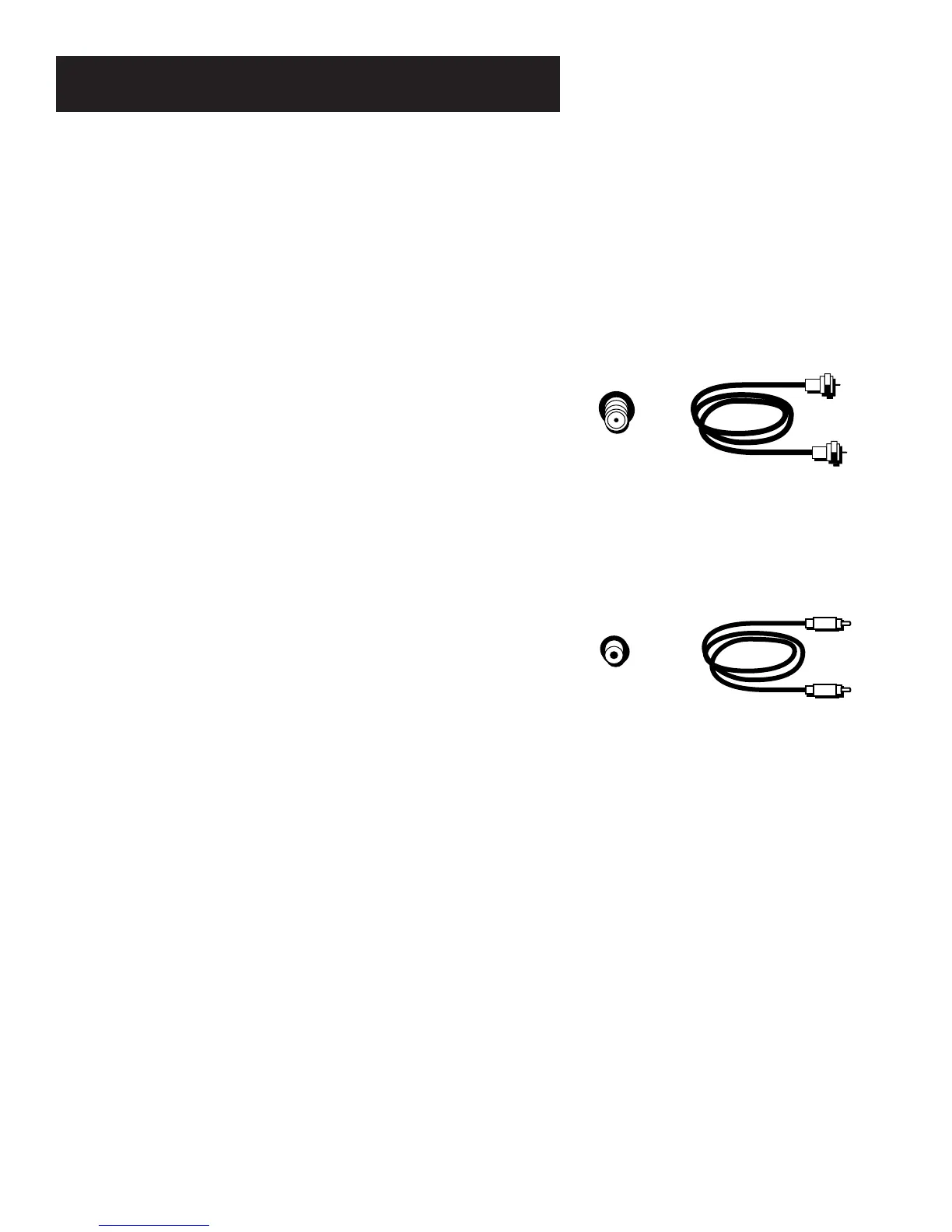

Jacks and Cables
RF Jacks and Antenna Cables (F-type)
The RF jacks provide good picture and mono sound, and must be
used if audio/video connections are not available for your TV.
These jacks are required for antenna or cable-TV connections.
The RF jacks on the VCR are labeled IN FROM ANT. and OUT TO
TV. The antenna cable supplied with your VCR is used to connect
the VCR’s OUT TO TV jack and your TV’s antenna input.
Audio/Video Jacks and Cables (RCA-type)
The audio/video jacks provide very good picture and stereo
sound and can be used if your TV has audio/video input jacks.
These jacks must be used for stereo sound. The VCR audio/video
jacks are color coded (yellow for video, red for right audio, and
white for left audio). If your TV has only one input for audio
(mono), connect it to the left (white) audio output jack of
the VCR.
RF Jack
Audio/Video Jack
